License Plate Lamp: Service and Repair

LICENSE PLATE LAMP ASSEMBLY

REPLACEMENT

1. REMOVE LUGGAGE COMPARTMENT LOCK CYLINDER & KEY SET
2. REMOVE BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE




3. REMOVE LICENSE PLATE LAMP ASSEMBLY

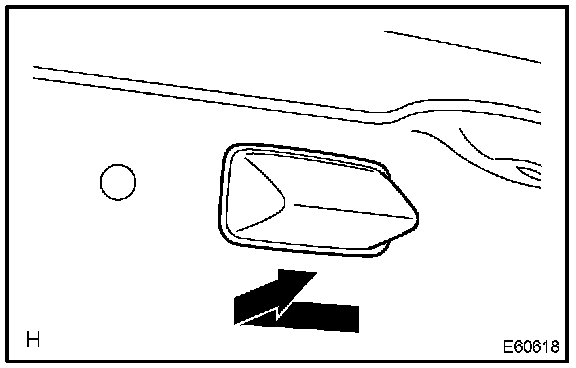

a. Pull the license plate lamp assembly to the side of vehicle as shown in the illustration and release the claw.
b. Disconnect the connector and remove the license plate lamp assembly.

4. INSTALL SYMBOL EMBLEM
