Tail Lamp: Service and Repair
REAR COMBINATION LAMP ASSEMBLY LHREPLACEMENT
1. REMOVE REAR COMBINATION LAMP ASSEMBLY LH

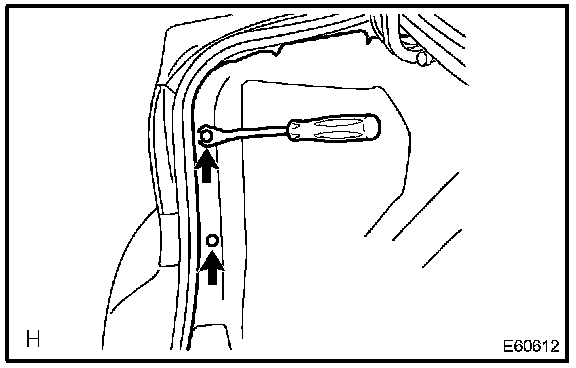

a. Using a clip remover, remove the 2 clips and disconnect the luggage compartment trim cover LH.

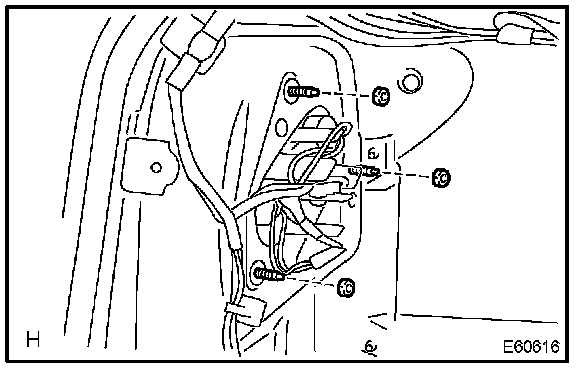

b. Disconnect the connector and remove the 3 nuts.

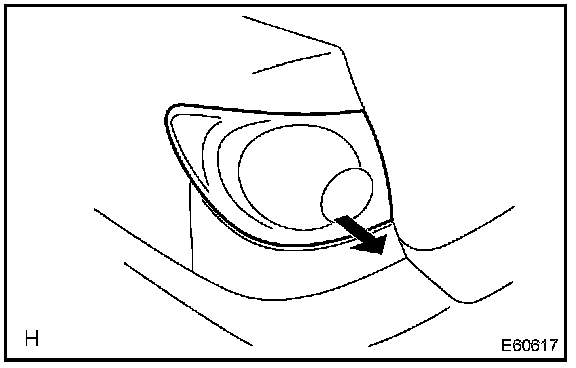

c. Pull out the rear combination lamp assembly LH to the back of the vehicle, and remove.
