For Vehicles Equipped With Vehicle Stability Control (VSC) System

FOR VEHICLES EQUIPPED WITH VEHICLE STABILITY CONTROL (VSC) SYSTEM




a. NOTES WHEN USING DRUM TESTER

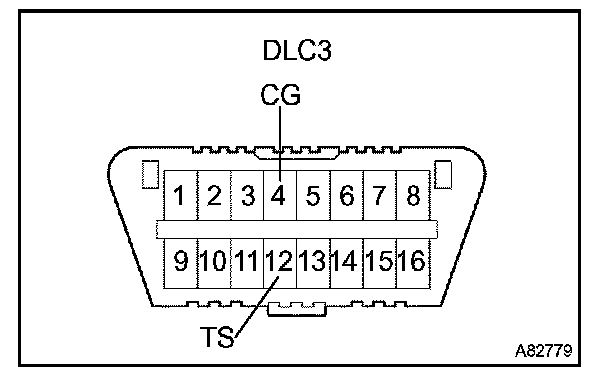

1. Before beginning testing, disable the Vehicle Stability Control (VSC) system. To disable the VSC, turn the ignition switch OFF and connect SST to terminals TS and CG of the DLC3.

SST 09843-18040

NOTE:
- Confirm that the VSC warning lamp blinks.
- VSC system will be reset when the engine is restarted.
- For safety, secure the vehicle with restraint chains while using a wheel dynamometer.

b. NOTES OF RELATED OPERATIONS TO VSC
1. Do not carry out unnecessary installation and removal as it might affect the adjustment of the VSC related parts.
2. Be sure to follow the instructions for work preparation and final confirmation of proper operation of the VSC system.
