Canada - Seats - Movement Or Noise

Bulletin
TSB2667

Issue Date
November 23, 2006

Market
Canada

Title
SEAT MOVEMENT/NOISE

Component
BODY COMPONENT

Models
'04 - '06 Corolla

INTRODUCTION:

Some customers may complain of a seat noise or of a slight shifting sensation that can be felt in the lower seat cushion area. An improved seat assembly/seat frame assembly is now available to address this condition.

APPLICABLE VEHICLES:
- 2004 -- 2006 model year Corolla vehicles produced BEFORE the Production Change Effective VINs shown below.

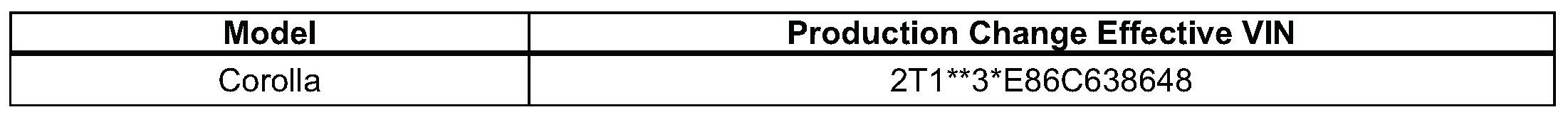

PRODUCTION CHANGE INFORMATION:

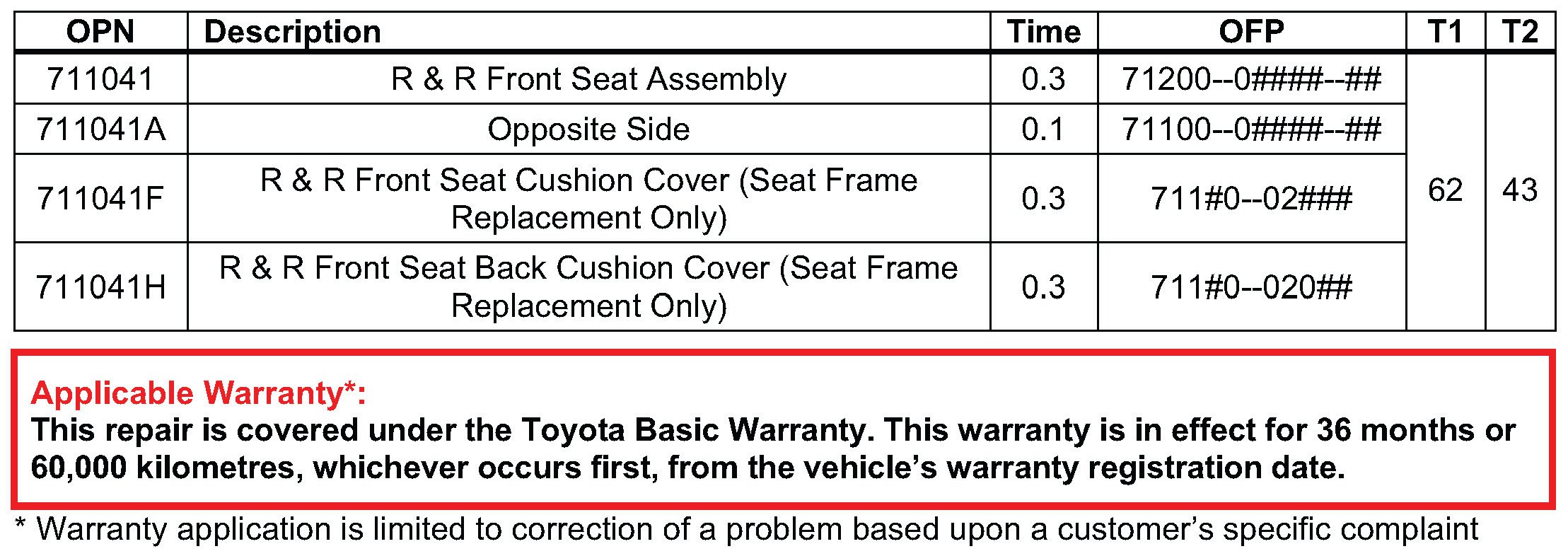

WARRANTY INFORMATION:

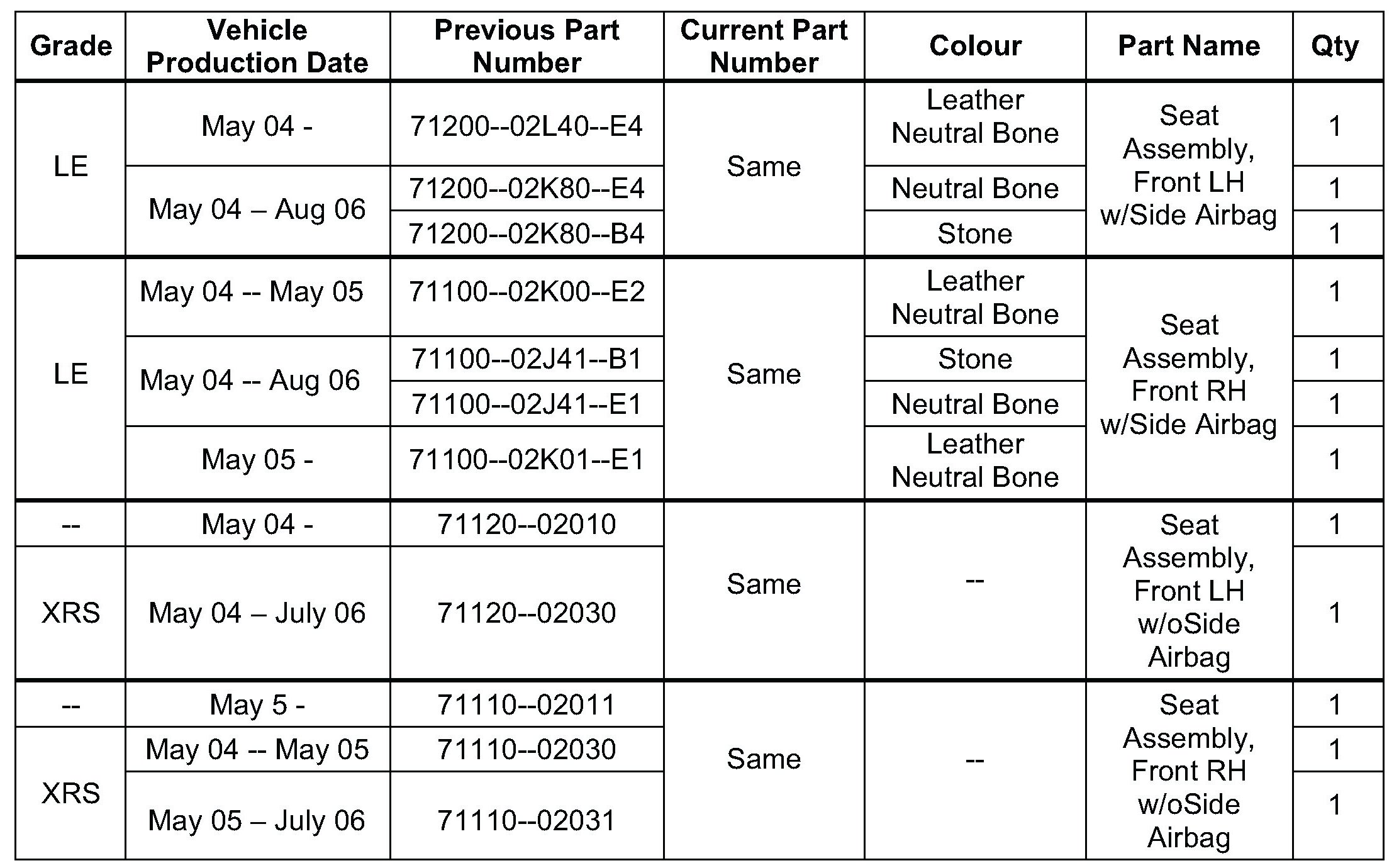

PART INFORMATION:

REPAIR PROCEDURE:

Replace seat assembly/seat frame assembly with NEW service part.

For seat assembly/seat frame assembly removal and installation instructions, refer to ETAS, applicable model year Corolla Repair Manual: Seat: Front Seat: Overhaul.
