Axle Shaft Assembly: Service and Repair

FRONT DRIVE SHAFT (1ZZ-FE)

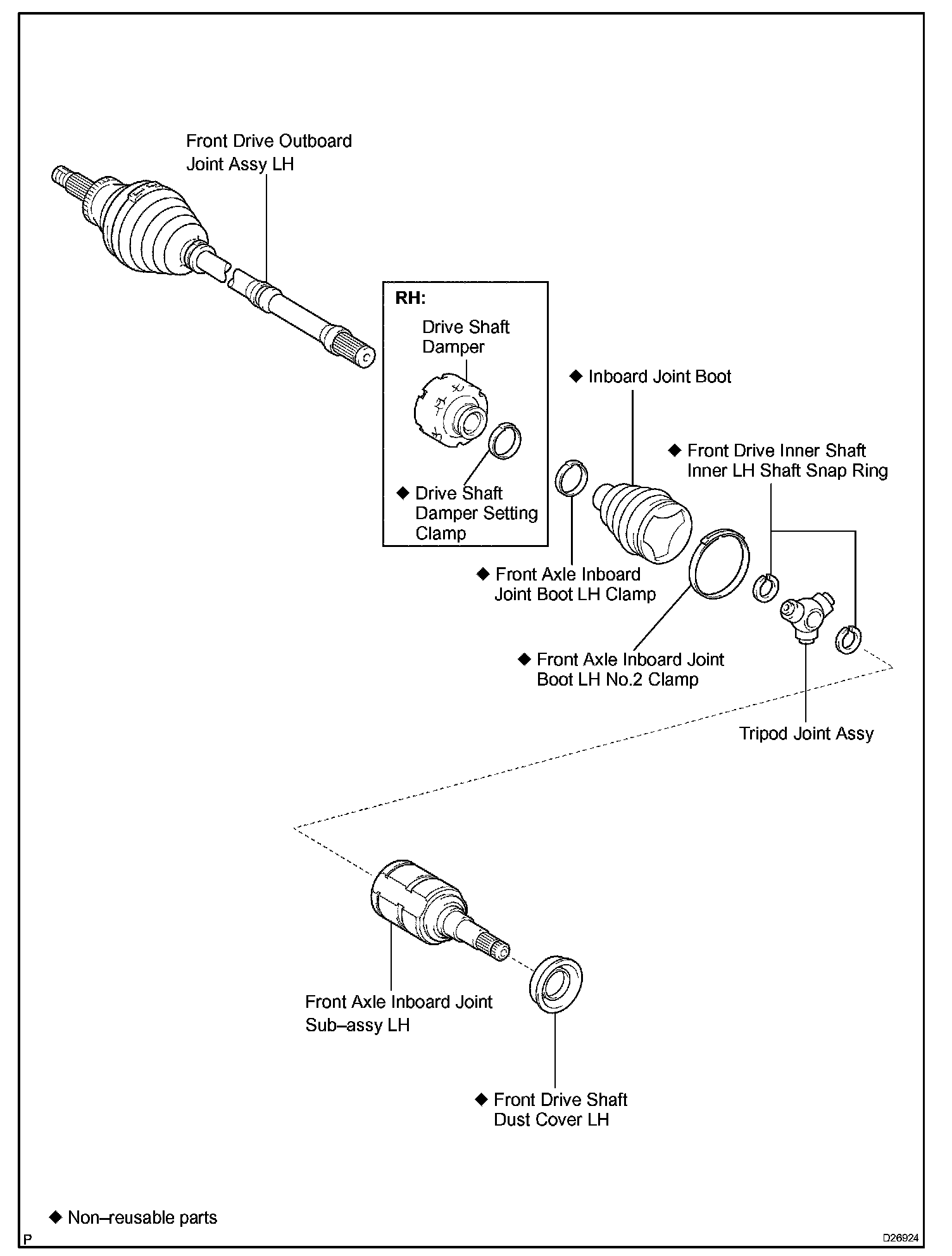

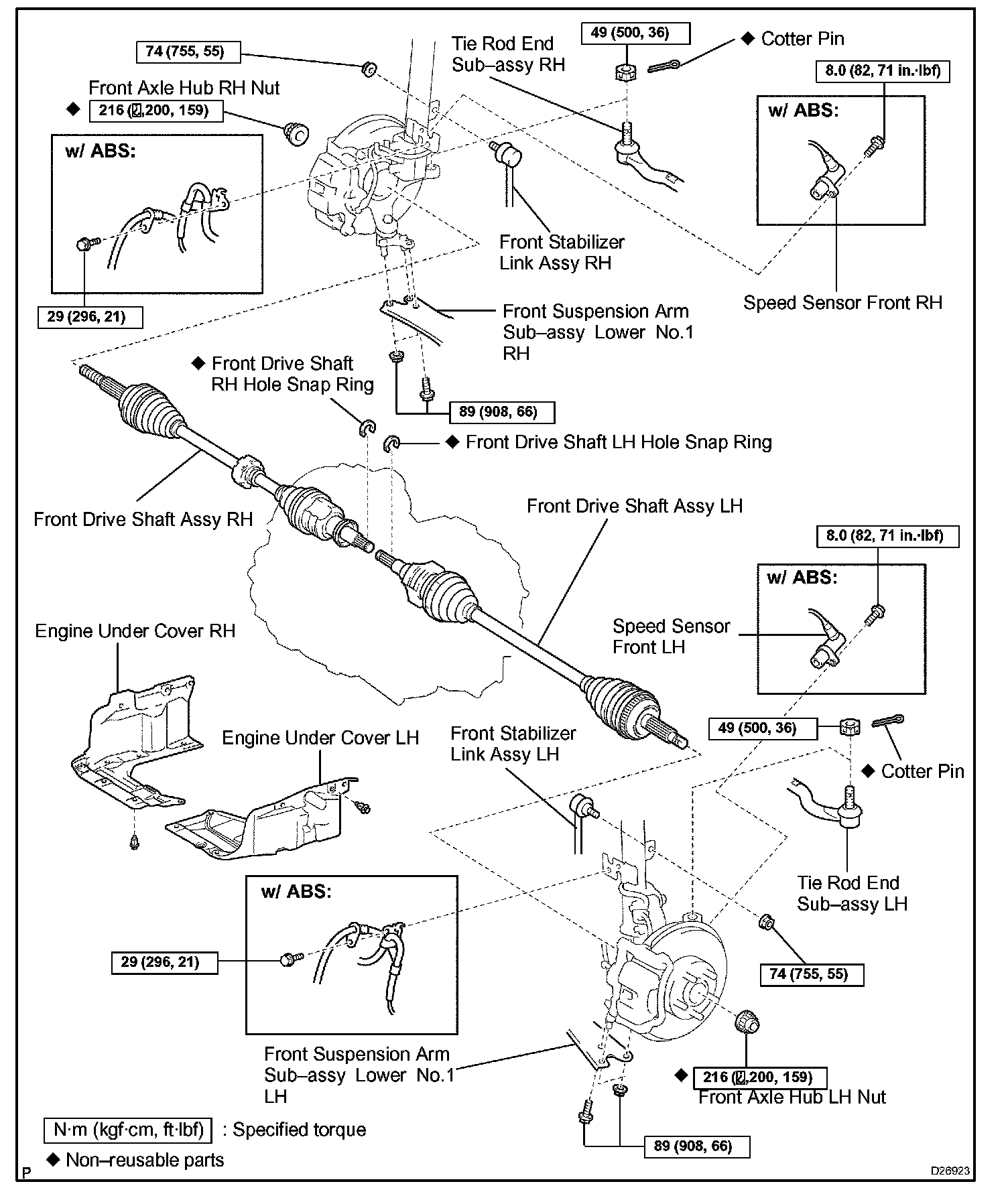

COMPONENTS

OVERHAUL

HINT: Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side.

1. DRAIN MANUAL TRANSAXLE OIL (MANUAL TRANSAXLE)
Torque: 39 Nm (400 kgf-cm, 29 ft. lbs.)
2. DRAIN AUTOMATIC TRANSAXLE FLUID (AUTOMATIC TRANSAXLE)
Torque: 18 Nm (178 kgf-cm, 13 ft. lbs.)
3. REMOVE FRONT WHEEL
4. REMOVE ENGINE UNDER COVER LH





5. REMOVE FRONT AXLE HUB LH NUT
a. Using SST and a hammer, unstake the staked part of the hub LH nut.
SST 09930-00010
b. While applying the brakes, remove the hub LH nut.

NOTICE: Loosen the staked part of the nut completely; otherwise the screw of the drive shaft may be damaged.





6. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH
a. Remove the nut, separate the front stabilizer link assembly LH from the shock absorber assembly front LH.

HINT: If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud.





7. SEPARATE SPEED SENSOR FRONT LH (W/ ABS)
a. Remove the bolt, separate the speed sensor front LH and flexible hose from the shock absorber assembly front LH.





b. Remove the bolt, separate the speed sensor front LH from the steering knuckle.





8. SEPARATE TIE ROD END SUB-ASSEMBLY LH
a. Remove the cotter pin and nut.

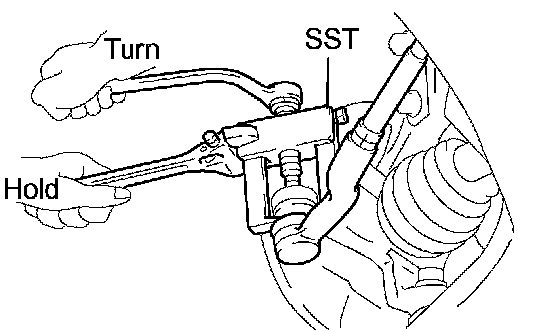

b. Using SST, separate the tie rod end sub-assembly LH from the steering knuckle.
SST 09628-62011





9. SEPARATE FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 LH

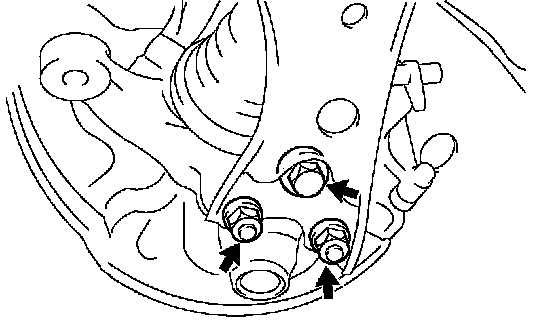

a. Remove a bolt and 2 nuts, separate the front suspension arm sub-assembly lower No.1 LH from the lower ball joint.





10. SEPARATE FRONT AXLE ASSEMBLY LH

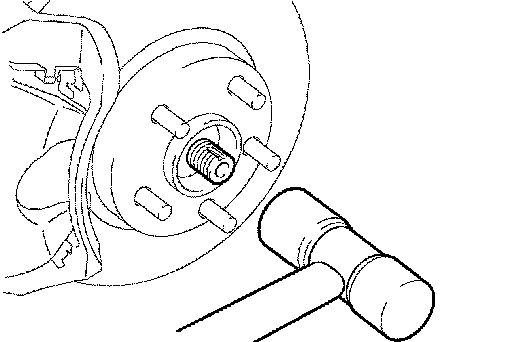

a. Using a plastic hammer, separate the front drive shaft assembly LH from the front axle assembly LH.

NOTICE: Be careful not to damage the boot.

w/ ABS: Be careful not to damage the speed sensor rotor.





11. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH
a. Using SST, remove the front drive shaft assembly LH.
SST 09520-01010, 09520-24010 (09520-32040)

NOTICE: Be careful not to damage the dust cover, boot and oil seal.

HINT: In case of not being able to remove the drive shaft at the position of the illustration (A), hook the claw of SST to the position of the illustration (13), remove it.

12. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

HINT: Remove the RH side by the same procedures as the LH side.

NOTICE: Be careful not to damage the dust cover and oil seal.





13. FIX FRONT AXLE ASSEMBLY LH

NOTICE: The hub bearing could be damaged if it is subjected to the vehicle weight, such as when moving the vehicle with the drive shaft removed.

Therefore, make sure to support the hub bearing with SST when the vehicle weight is applied.
SST 09608-16042 (09608-02021, 09608-02041)





14. INSPECT FRONT DRIVE SHAFT ASSEMBLY LH
a. Check that there is no remarkable play in the outboard joint.
b. Check that the inboard joint slides smoothly in the thrust direction.
c. Check that there is no remarkable play in the radial direction of the inboard joint.
d. Check the boots for damage.

NOTICE: Keep the drive shaft assembly level during inspection.

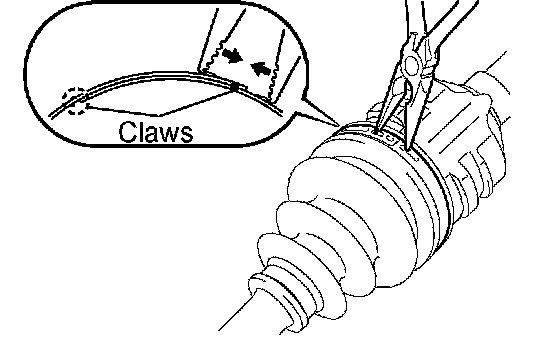

15. REMOVE FRONT AXLE INBOARD JOINT BOOT LH NO.2 CLAMP

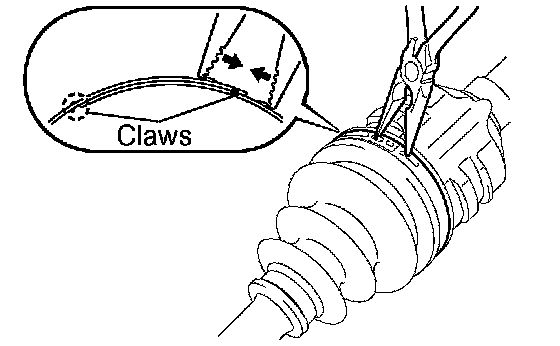

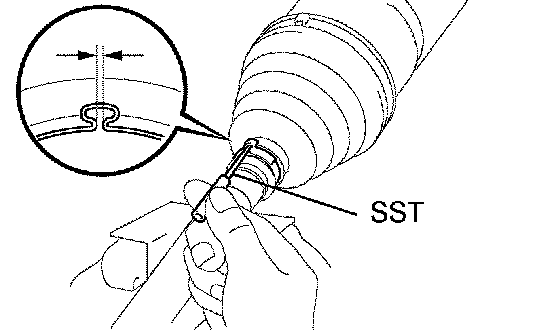

a. Using a needle nose pliers, remove the inboard joint boot LH No.2 clamp as shown in the illustration.
16. REMOVE FRONT AXLE INBOARD JOINT BOOT LH CLAMP
a. Using a side cutter, cut the inboard joint boot LH clamp, then remove it.
17. SEPARATE INBOARD JOINT BOOT
a. Separate the inboard joint boot from the inboard joint sub-assembly LH.





18. REMOVE FRONT AXLE INBOARD JOINT SUB-ASSEMBLY LH
a. Remove the old grease from the inboard joint sub-assembly LH.

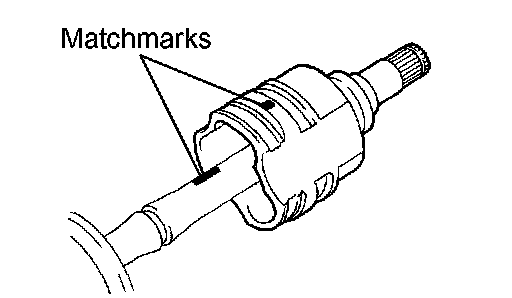

b. Put matchmarks on the inboard joint sub-assembly LH and outboard joint shaft assembly.

NOTICE: Do not punch the marks.

c. Remove the inboard joint sub-assembly LH from the outboard joint shaft assembly.

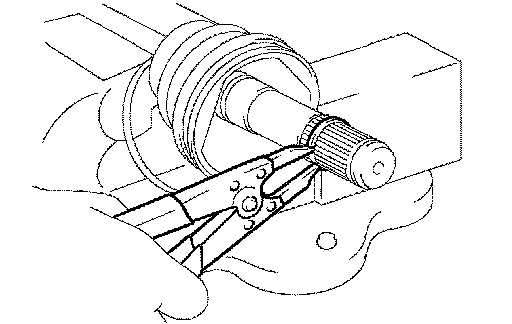

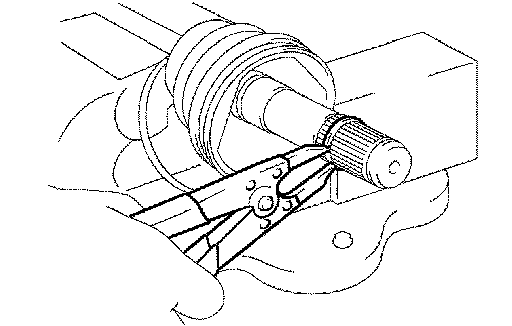

d. Using a snap ring expander, remove the inner LH shaft snap ring.

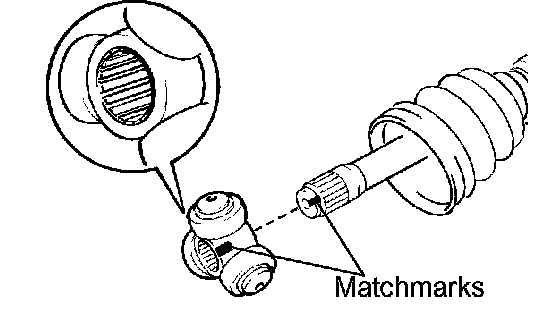

e. Put matchmarks on the outboard joint shaft assembly and tripod joint assembly.

NOTICE: Do not punch the marks.

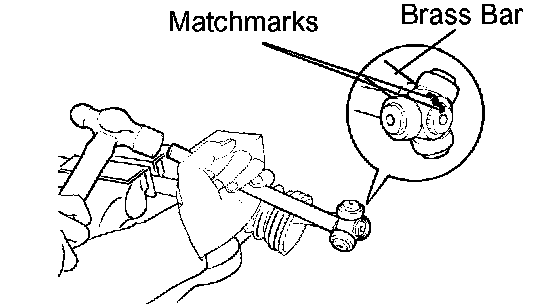

f. Using a brass bar and a hammer, remove the tripod joint assembly from the outboard joint shaft assembly.

NOTICE: Do not tap the roller.





g. Using a snap ring expander, remove the inner LH shaft snap ring.
h. Remove the inboard joint boot.
19. REMOVE DRIVE SHAFT DAMPER (RH DRIVE SHAFT)
a. Using a side cutter, cut the drive shaft damper setting clamp, then remove it.
b. Remove the drive shaft damper.





20. REMOVE FRONT DRIVE SHAFT LH HOLE SNAP RING

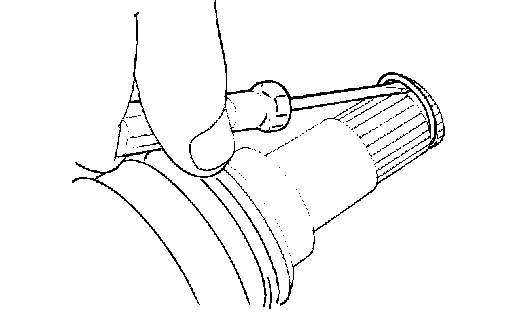

a. Using a screwdriver, remove the LH hole snap ring.





21. REMOVE FRONT DRIVE SHAFT DUST COVER LH

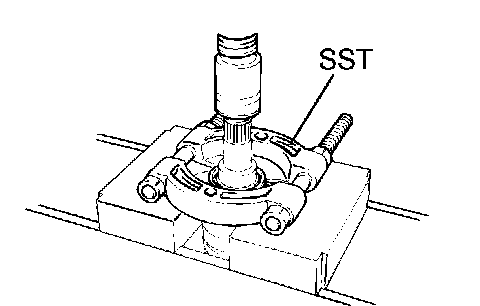

a. Using SST and a press, remove the dust cover LH.
SST 09950-00020





22. INSTALL FRONT DRIVE SHAFT DUST COVER LH

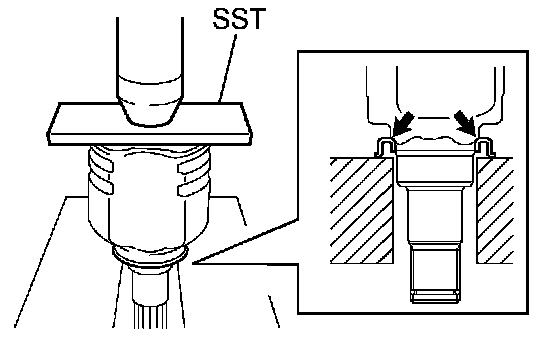

a. Using SST and a press, install a new dust cover LH, as shown in the illustration.
SST 09527-10011

NOTICE: Dust cover should be installed completely. Be careful not to damage the dust cover.

23. INSTALL FRONT DRIVE SHAFT LH HOLE SNAP RING
a. Install a new LH hole snap ring.





24. INSTALL DRIVE SHAFT DAMPER (RH DRIVE SHAFT)
a. Set the distance, as described below.
Distance (A): 438 to 442 mm (17.24 to 17.40 inch)
b. Through the damper setting clamp to the shaft.





c. Mount drive shaft in a soft vise.
d. Secure the damper setting clamp onto the damper.
e. Place SST onto the damper setting clamp.
SST 09521-24010
f. Tighten the SST so that the clamp is pinched.

NOTICE: Do not overtighten the SST.





g. Using SST, adjust the clearance of the damper setting clamp.
SST 09240-00020 (09242-00150)
Clearance: 1.5 mm (0.059 inch) or less
25. INSTALL FRONT AXLE INBOARD JOINT SUB-ASSEMBLY LH

HINT: Before installing the boot, wrap the spline of the drive shaft with vinyl tape to prevent the boot from being damaged.

a. Install new parts to the outboard joint shaft assembly in the following order.
(1) Inboard joint boot LH clamp
(2) Inboard joint boot LH No.2 clamp
(3) Inboard joint boot





b. Using a snap ring expander, install a new inner LH shaft snap ring.





c. Align the matchmarks, install tripod joint assembly to the outboard joint assembly.
d. Using a brass bar and a hammer, install the tripod joint assembly.

NOTICE: Do not tap the roller.





e. Using a snap ring expander, install a new inner LH shaft snap ring.
f. Pack the inboard joint sub-assembly LH with grease.
Grease Capacity: 135 to 155 g (4.8 to 5.5 oz.)





g. Align the matchmarks, install the inboard joint sub-assembly LH to the outboard joint shaft assembly.
26. INSTALL INBOARD JOINT BOOT
a. Install the inboard joint boot to the inboard joint assembly.





27. INSTALL FRONT AXLE INBOARD JOINT BOOT LH CLAMP
a. Mount drive shaft in a soft vise.
b. Secure the clamp onto the boot.
c. Place SST onto the clamp.
SST 09521-24010
d. Tighten the SST so that the clamp is pinched.

NOTICE: Do not overtighten the SST.

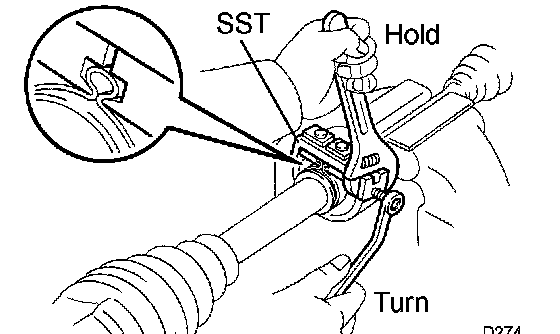

e. Using SST, adjust the clearance of the clamp.
SST 09240-00020 (09242-00150)
Clearance: 1.5 mm (0.059 inch) or less.





28. INSTALL FRONT AXLE INBOARD JOINT BOOT LH NO.2 CLAMP

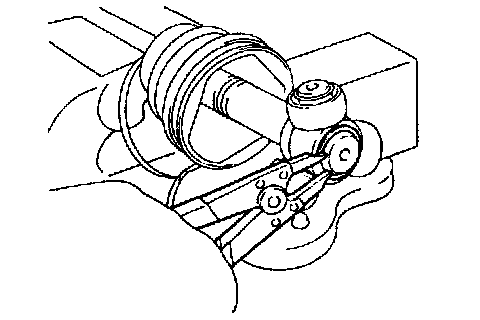

a. Using a needle nose pliers, install the inboard joint boot LH No.2 clamp as shown in the illustration.





29. INSPECT FRONT DRIVE SHAFT ASSEMBLY LH

NOTICE: Keep the drive shaft assembly level during inspection.

a. Check that there is no remarkable play in the outboard joint.
b. Check that the inboard joint slides smoothly in the thrust direction.
c. Check that there is no remarkable play in the radial direction of the inboard joint.
d. Check the boots for damage.

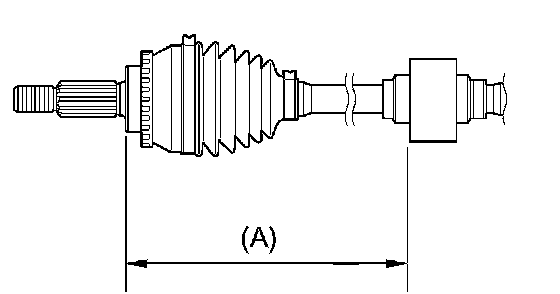

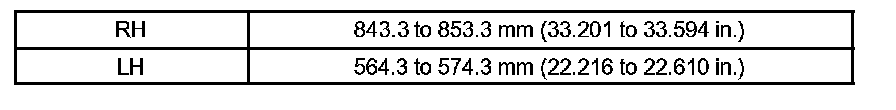

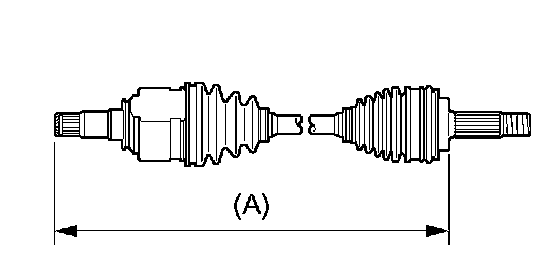

HINT: For dimension (A), refer to the table.





30. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
a. A/T: Coat the spline of the inboard joint shaft assembly with ATF.
b. M/T: Coat the spline of the inboard joint shaft assembly with gear oil.
c. Align the shaft splines, install the drive shaft assembly with a brass bar and a hammer.

NOTICE:
^ Set the hole snap ring with opening side facing downwards.
^ Be careful not to damage the oil seal.

HINT: Whether the inboard joint shaft is in contact with the pinion shaft or not can be known from the sound or feeling when driving it in.

31. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH

HINT: Install the RH side by the same procedure as the LH side.

NOTICE: Do not damage the oil seal.
32. INSTALL FRONT AXLE ASSEMBLY LH
a. Install the drive shaft assembly LH to the front axle assembly LH.

NOTICE: Be careful not to damage the outboard joint boot. w/ ABS: Be careful not to damage the speed sensor rotor.





33. INSTALL FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 LH
a. Install the lower ball joint to the front suspension arm sub-assembly lower No.1 LH with a bolt and 2 nuts.
Torque: 89 Nm (908 kgf-cm, 66 ft. lbs.)
34. INSTALL TIE ROD END SUB-ASSEMBLY LH
a. Install the tie rod end sub-assembly LH to the steering knuckle with the nut.
Torque: 49 Nm (500 kgf-cm, 36 ft. lbs.)
b. Install a new cotter pin.

NOTICE: If the holes for the cotter pin are not aligned, tighten the nut further to 600.





35. INSTALL SPEED SENSOR FRONT LH (W/ABS)
a. Install the speed sensor front LH and flexible hose to shock absorber assembly front LH with the bolt.
Torque: 29 Nm (296 kgf-cm, 21 ft. lbs.)





b. Install the speed sensor front LH to the steering knuckle with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)

NOTICE:
^ Be careful not to damage the speed sensor. Keep the speed sensor clean.
^ Do not twist the sensor wire when installing the sensor.





36. INSTALL FRONT STABILIZER LINK ASSEMBLY LH
a. Install the front stabilizer link assembly LH with the nut.
Torque: 74 Nm (755 kgf-cm, 55 ft. lbs.)

HINT: If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud.





37. INSTALL FRONT AXLE HUB LH NUT
a. Install a new hub LH nut.
Torque: 216 Nm (2,200 kgf-cm, 159 ft. lbs.)
b. Using a chisel and a hammer, stake the hub LH nut.
38. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
39. ADD MANUAL TRANSAXLE OIL (MANUAL TRANSAXLE)
40. INSPECT AND ADJUST MANUAL TRANSAXLE OIL (MANUAL TRANSAXLE)
41. ADD AUTOMATIC TRANSAXLE FLUID (AUTOMATIC TRANSAXLE)
42. INSPECT AND ADJUST AUTOMATIC TRANSAXLE FLUID (AUTOMATIC TRANSAXLE)
43. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
44. CHECK ABS SPEED SENSOR SIGNAL (W/ ABS)
