C1224

DTC C1224/44 NE SIGNAL CIRCUIT

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The skid control ECU receives engine revolution speed signals (NE signals) from the ECM.

Wiring Diagram:

Step 1-2:

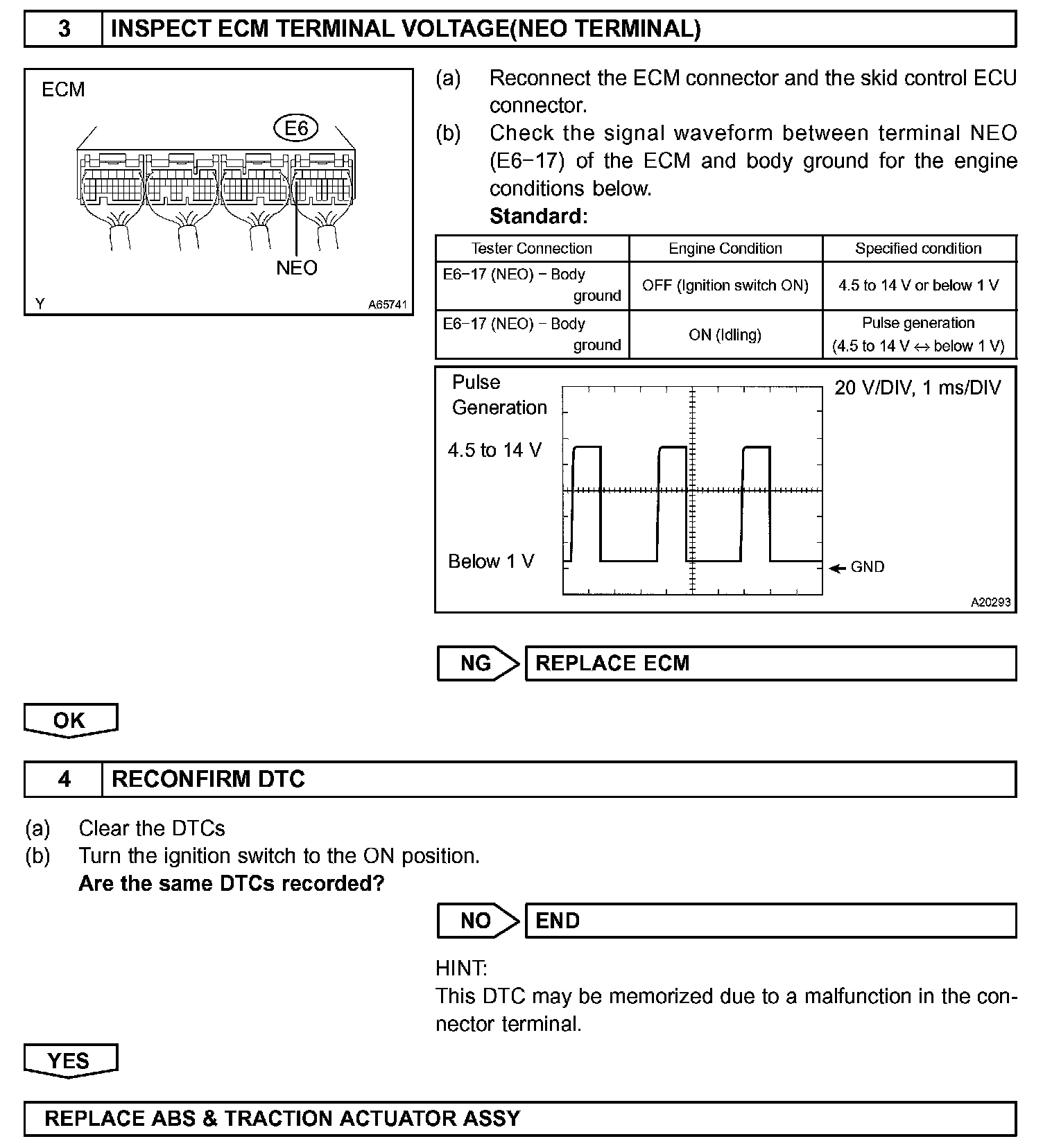

Step 3-4:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly, perform zero point calibration. Calibration
