C1381

DTC C1381/97 MALFUNCTION IN POWER SUPPLY VOLTAGE YAW/DECELERATION SENSOR

CIRCUIT DESCRIPTION

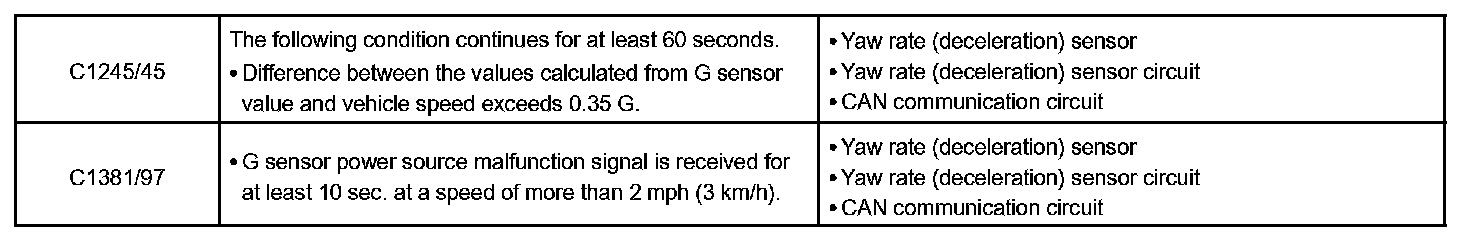

DTC Detecting Condition (Part 1):

DTC Detecting Condition (Part 2):

The yaw rate and deceleration sensors detect any gravity applied to the vehicle and transmit the signal to the skid control ECU via the CAN communication system.

DTCs C1279/79 and C0371/71 are output only in the test mode (SIGNAL CHECK).

Wiring Diagram:

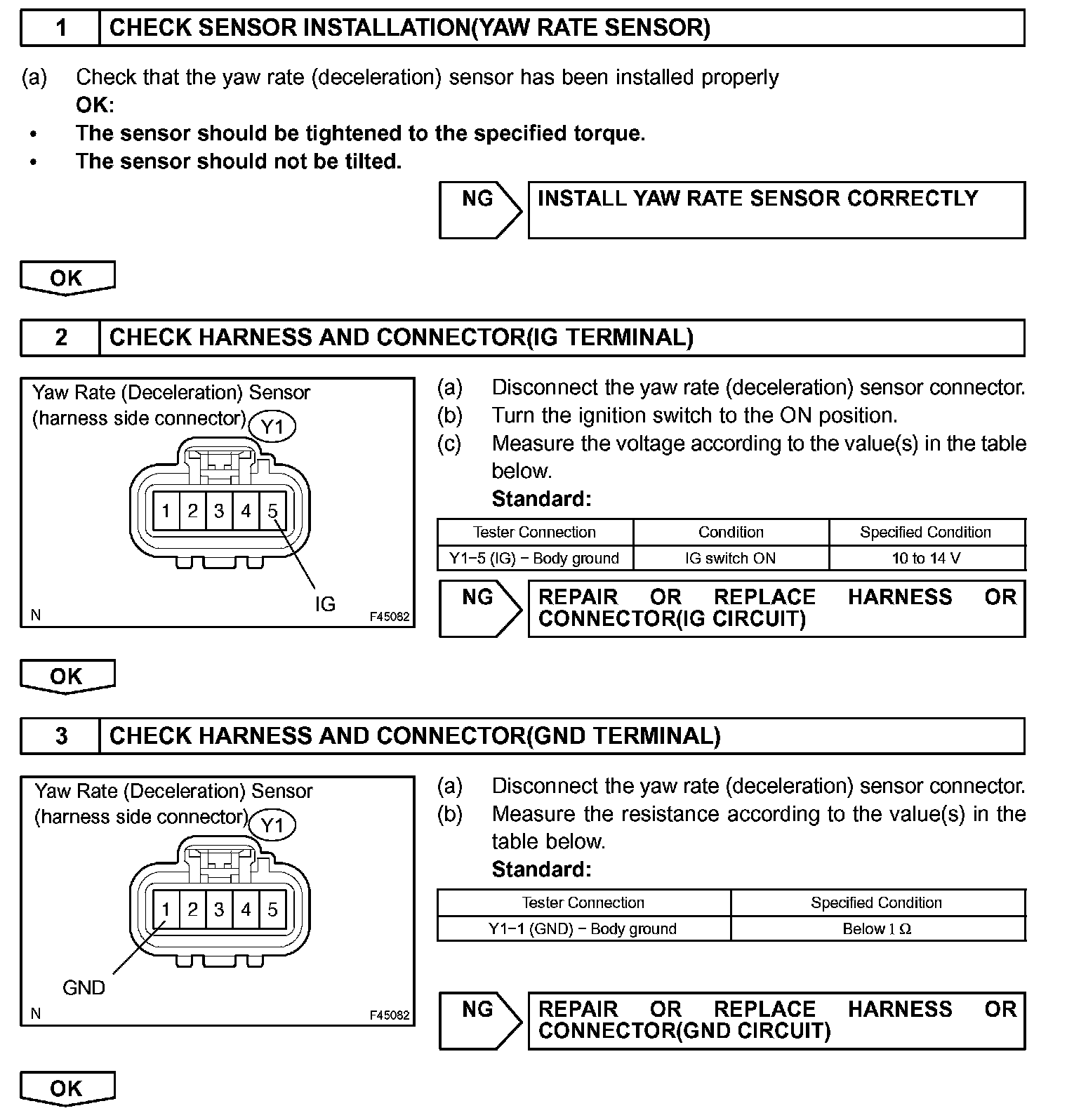

Step 1-3:

Step 4:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assembly and yaw rate (deceleration) sensor, perform zero point calibration. Calibration

HINT: When U0073/94, U0123/62, U0124/95 or U0126/63 is output together with C1232/32 or C1334/34, inspect and repair the trouble areas indicated by U0073/94, U0123/62, U0124/95 or U0126/63 first.
