ABS w/ EBD System

DIAGNOSTIC TROUBLE CODE CHART

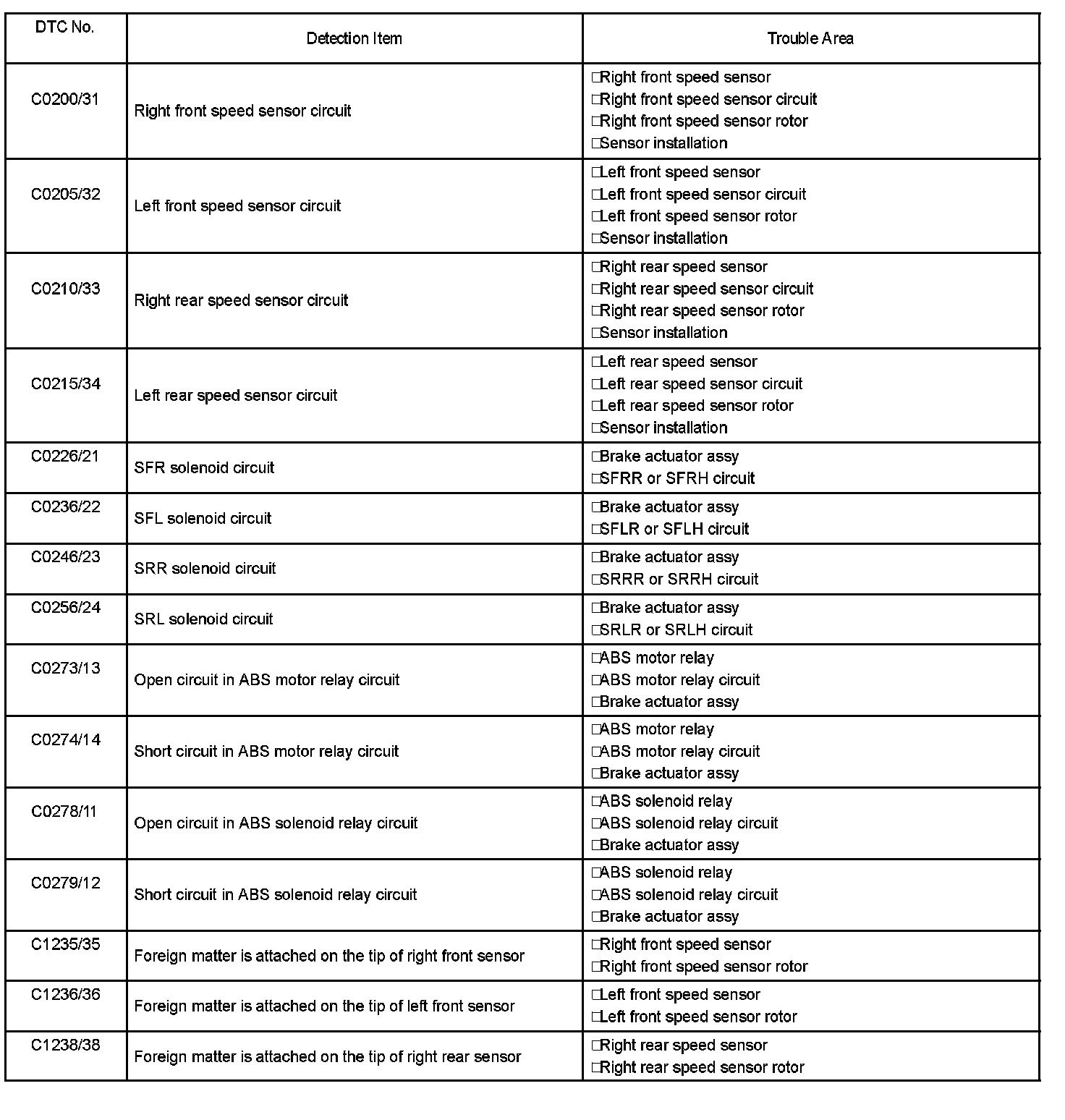

C0200/31-C1238/38:

C1239/39-C1252/51:

NOTE: When removing parts, turn the ignition switch off.

HINT:
- Using SST 09843-18040, connect terminals TC and CG of the DLC3.
- If no abnormality is found when inspecting parts, inspect the ECU and ground points for poor contact.
- If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer the respective "DTC No." in the DTC chart.
- When 2 or more DTCs are recorded and the problem is not identified, perform circuit inspection of the other DTCs.

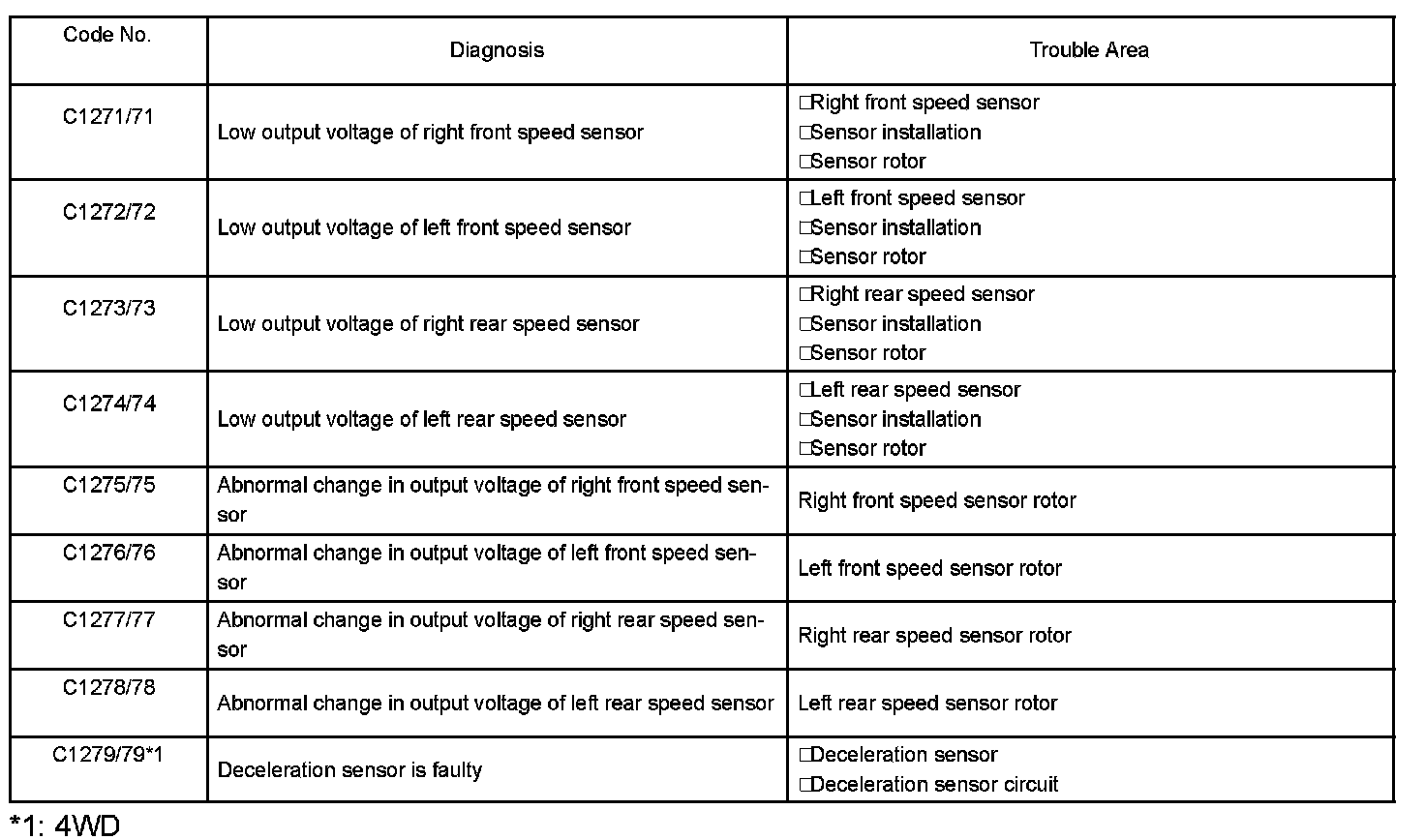

C1271/71-C1279/79*1:

DTC of speed sensor check function

HINT: The codes in this table are output only in TEST MODE.
