Inner Rear View Mirror

INNER REAR VIEW MIRROR ASSEMBLY

REPLACEMENT

HINT: The installation procedures are the removal procedures in reverse order.

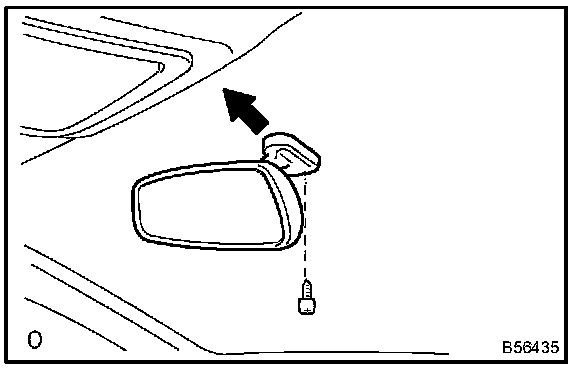

1. REMOVE INNER REAR VIEW MIRROR ASSEMBLY
a. Remove the screw.
b. w/ Electrochromic mirror:
Disconnect the connector.
c. Remove the rear view inner mirror assembly.
