Warning Buzzer Does Not Sound
Warning Buzzer Does Not Sound
WARNING BUZZER DOES NOT SOUND
Wiring Diagram:

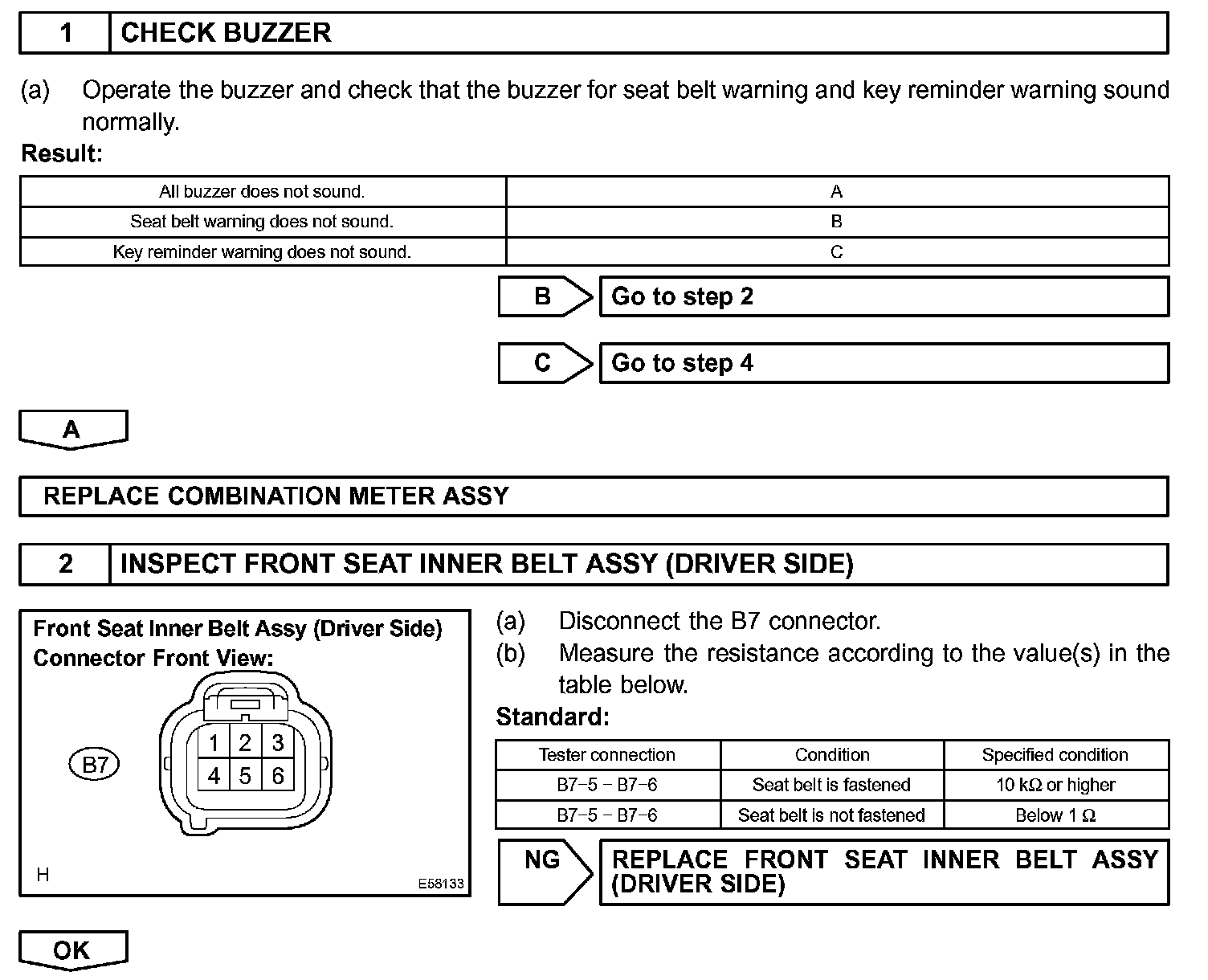

Step 1-2:

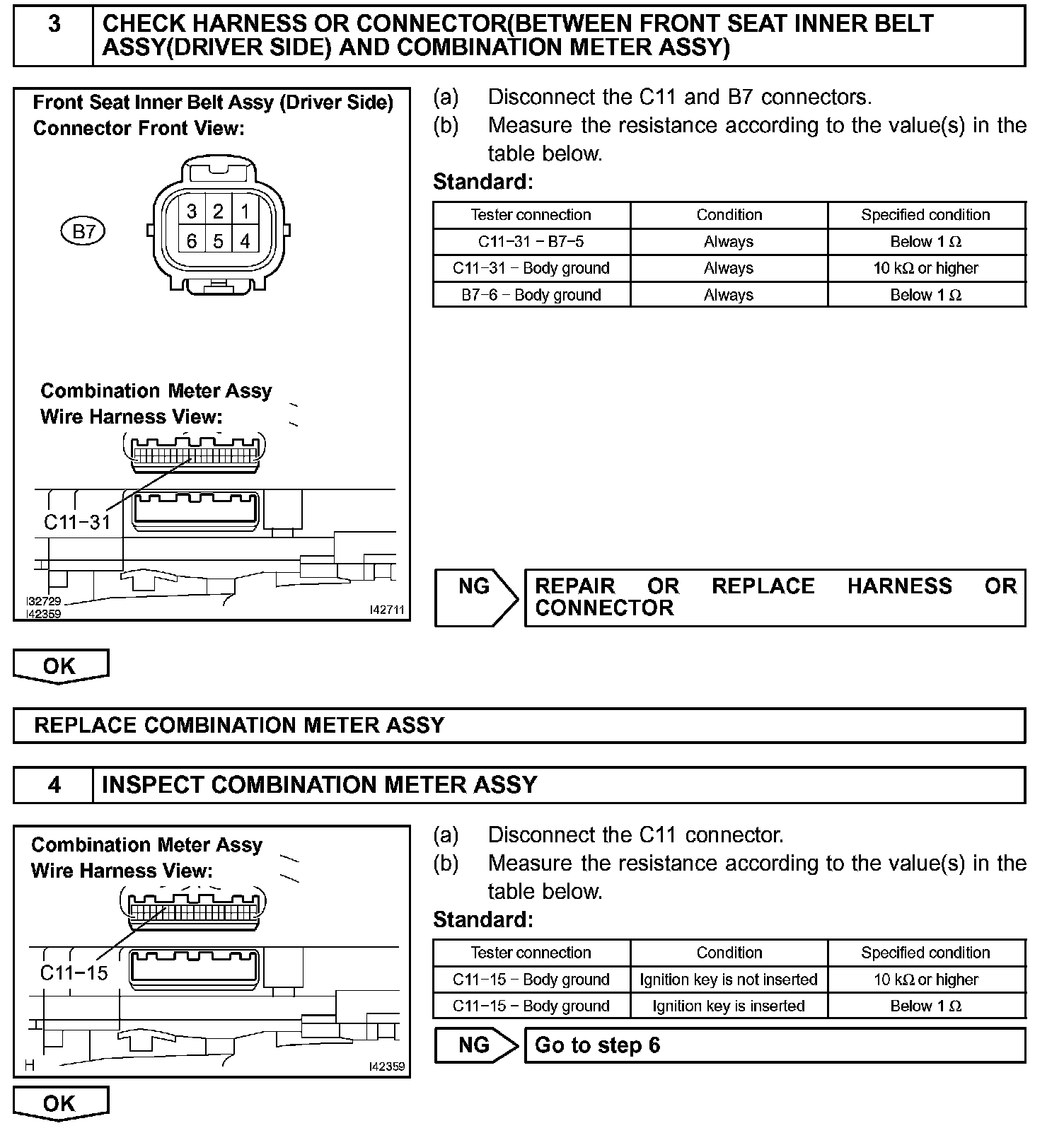

Step 3-4:

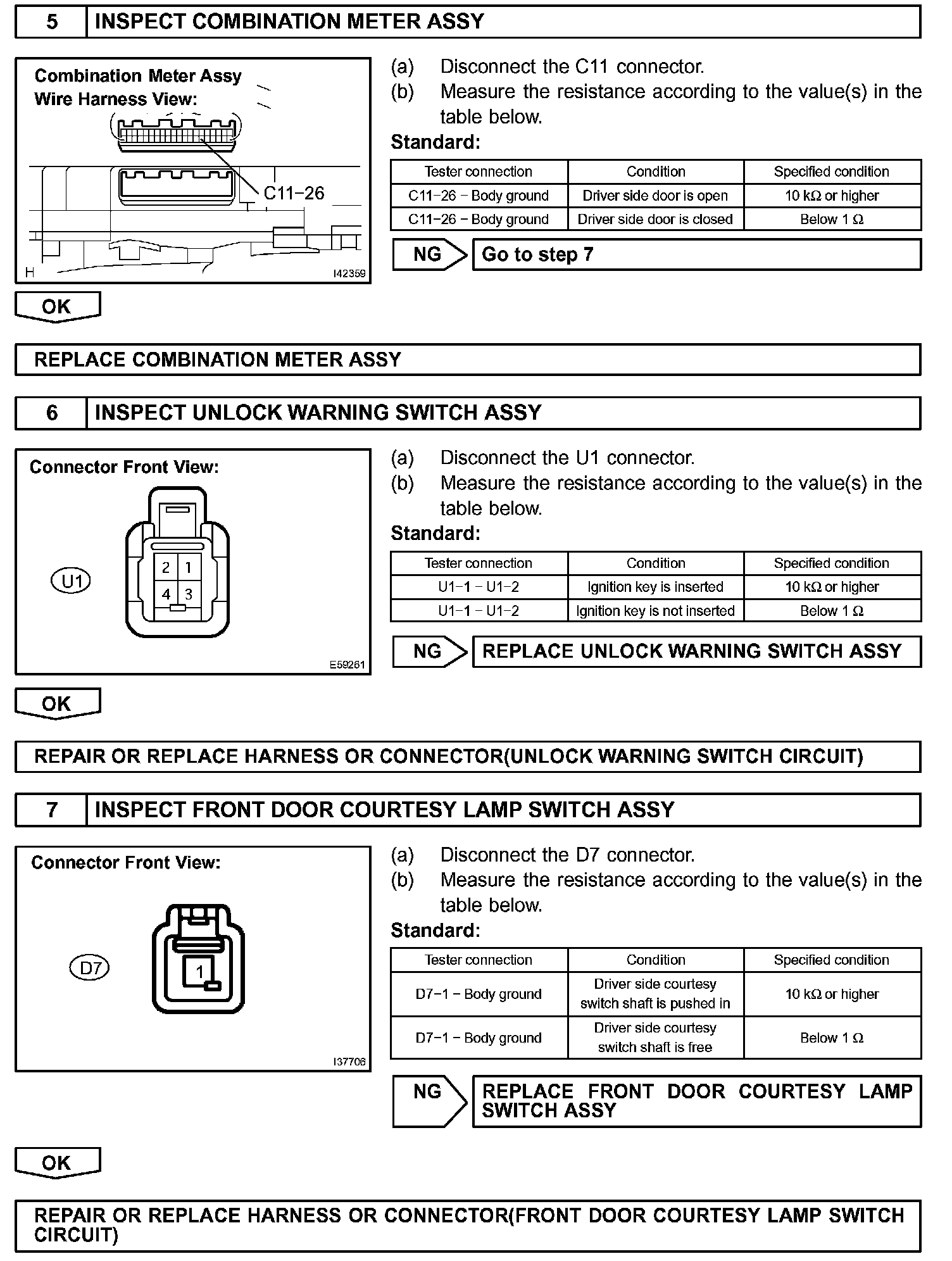

Step 5-7:
INSPECTION PROCEDURE
