Headlamp: Service and Repair

LH Headlamp Assy:

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE FRONT BUMPER COVER
2. REMOVE LH HEADLAMP ASSEMBLY

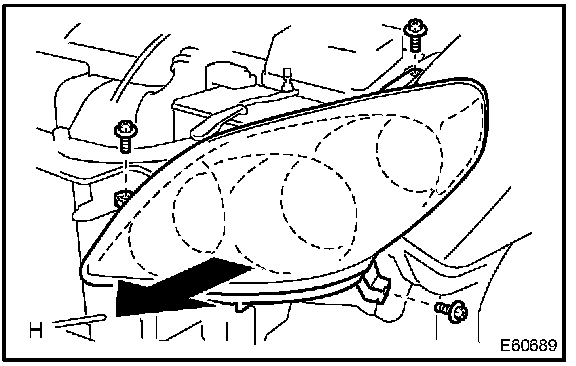

a. Remove the 3 bolts.
b. Pull out the headlamp assembly LH forward, then disconnect the bracket of body side.

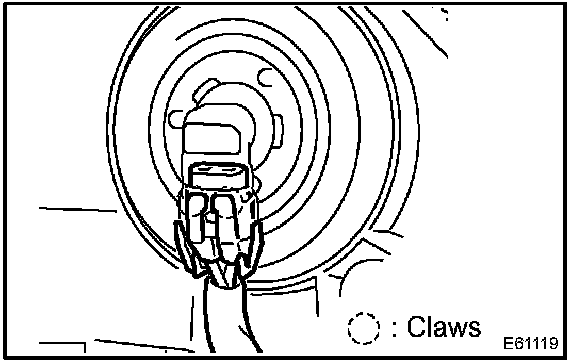

c. Release the 2 claws and disconnect the connectors.
d. Remove the headlamp assembly LH.

3. HEADLAMP AIMING ADJUSTMENT
4. FOG LAMP AIMING ADJUSTMENT
