Inspection

INSPECTION

1. INSPECT BACK WINDOW LOCK ASSEMBLY







a. Apply battery voltage and inspect the window lock motor operation, as shown in the illustration and table.
If the result is not as specified, replace the window lock assembly.

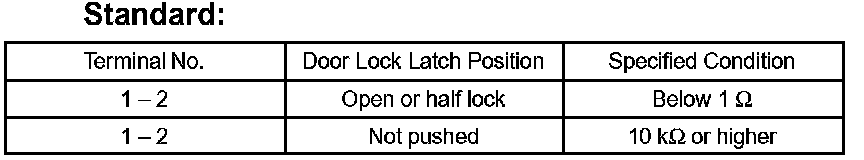

b. Measure the resistance of the courtesy switch.
If the result is not as specified, replace the window lock assembly.

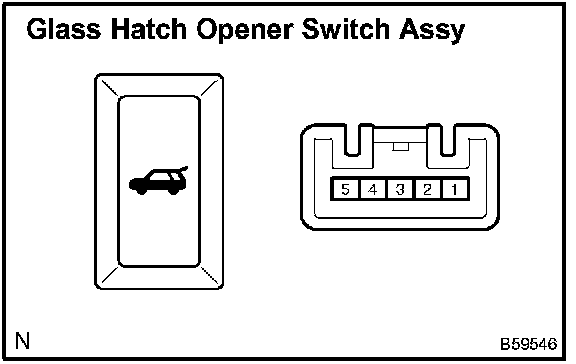

2. INSPECT GLASS HATCH OPENER SWITCH ASSEMBLY

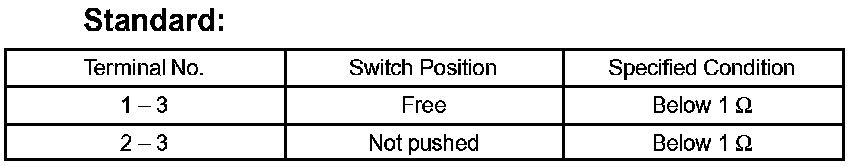

a. Measure the resistance of the switch.
If the result is not as specified, replace the switch assembly.
