Engine Lubrication: Testing and Inspection
ON-VEHICLE INSPECTION1. CHECK ENGINE OIL LEVEL
a) Warm up the engine, then stop the engine and wait for 5 minutes.
b) Check that the engine oil level is between the "L" and "F" marks on the level gage.
If low, check for leakage and add oil up to the "F" mark.
NOTICE: Do not add engine oil to above the "F" mark.
2. CHECK ENGINE OIL QUALITY
a) Check the oil for deterioration, water intrusion, discoloration or thinning.
If the quality is visibly poor, replace the oil.
Oil grade: Use ILSAC multigrade engine oil.
SAE 5W-30 is the best choice for good fuel economy, and good starting in cold weather.
If SAE 5W-30 is not available, SAE 10W-30 may be used.
However, it should be replaced with SAE 5W-30 at the next oil replacement.
3. INSPECT OIL PRESSURE
a) Disconnect the oil pressure switch connector.
b) Using a 24 mm deep socket wrench, remove the oil pressure switch.
c) Install the oil pressure gauge.
d) Warm up the engine.
e) Check the oil pressure.
Oil pressure

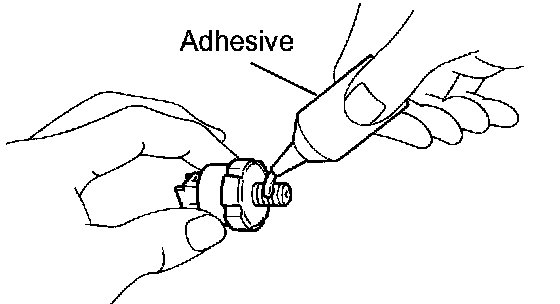

f) Apply adhesive to 2 or 3 threads of the oil pressure switch.
Adhesive: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
g) Using a 24 mm deep socket wrench, install the oil pressure switch.
Torque: 15 Nm (153 kgf-cm, 11 ft. lbs.)
NOTICE: Do not start the engine within 1 hour of installation.
h) Connect the oil pressure switch connector.
i) Check for engine oil leakage.
