Airbag System

DIAGNOSTIC TROUBLE CODE CHART

B1000/31-B1653/35:

B1655/37-B1816/54:

B1817/54-B1835/58:

B1836/58-B1908/74:

1. DTCS FOR SUPPLEMENTAL RESTRAINT SYSTEM
If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table below (Proceed to the troubleshooting listed for that circuit).

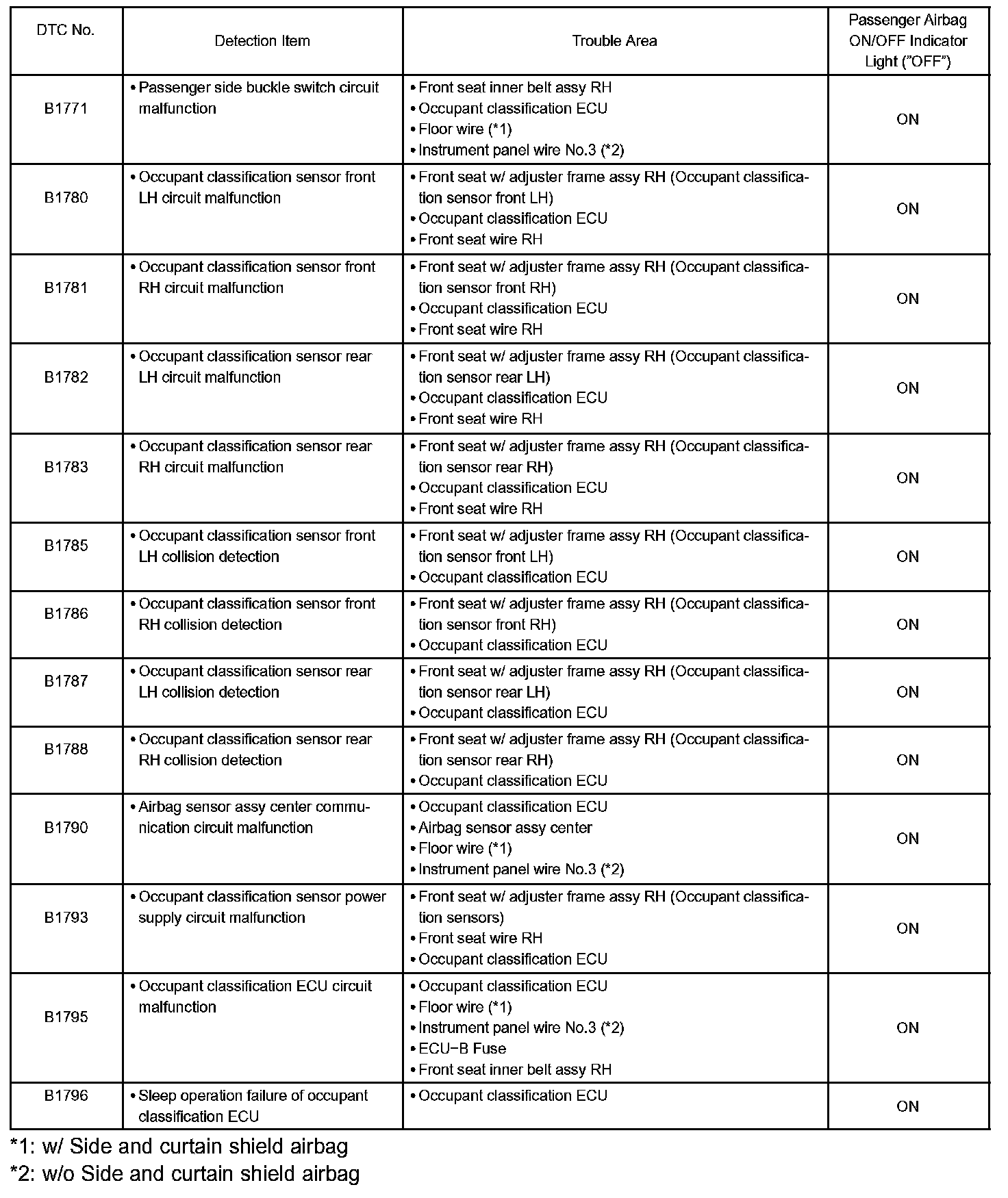

B1771-B1796:

2. DTCS FOR FRONT PASSENGER OCCUPANT CLASSIFICATION SYSTEM

HINT: When DTC B1650/32 is detected as a result of troubleshooting for the Supplemental Restraint System, perform troubleshooting for the occupant classification system as shown in the chart given.
