Antitheft and Alarm Systems: Description and Operation

System Diagram:

SYSTEM DESCRIPTION

1. ENGINE IMMOBILIZER SYSTEM DESCRIPTION
The engine immobilizer system is designed to prevent the vehicle from being stolen. This system uses a transponder key ECU assembly that stores the key codes of authorized ignition keys. If an attempt is made to start the engine using an unauthorized key, the ECU sends a signal to the ECM to prohibit fuel delivery and ignition, effectively disabling the engine.

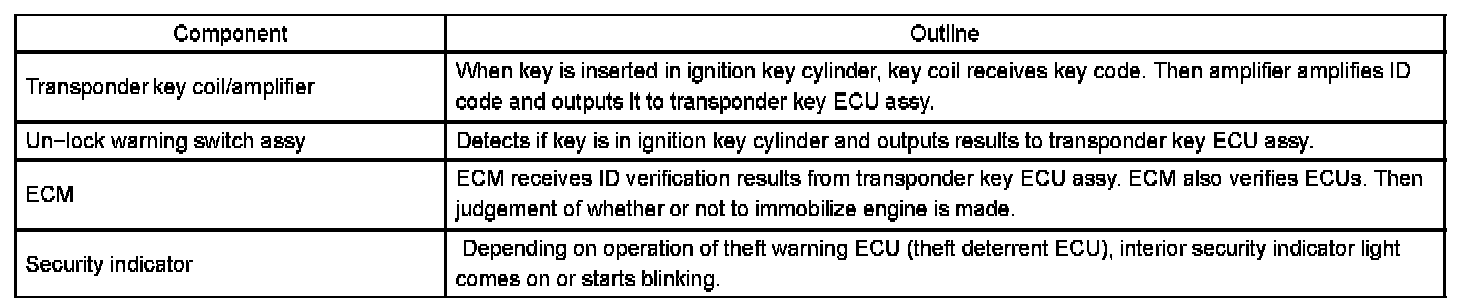

2. FUNCTION OF MAIN COMPONENT

3. SYSTEM FUNCTION
a. When the transponder key ECU assembly detects that the key unlock warning switch is ON, the ECU provides current to the transponder key coil and produces a faint electric wave. A transponder chip in the key grip receives the faint electric wave. Upon receiving the faint electric wave, the transponder chip outputs a key ID code signal. The transponder key coil receives this signal, the transponder key amplifier amplifies it, and then the signal is transmitted to the ECU.
The ECU matches the key's ID code with the vehicle's ID code, previously registered in the ECU, and then communicates the results to the ECM.
After the identification results show that the key's ID code matches the vehicle's ID code and the ECU has confirmed their match: 1) the immobilizer system does not immobilize the engine and the engine starting controls (fuel injection control and ignition control) enter standby mode; and 2) the ECU transmits a security indicator signal that communicates "indicator off" to the security indicator. Then, the security indicator light turns off.

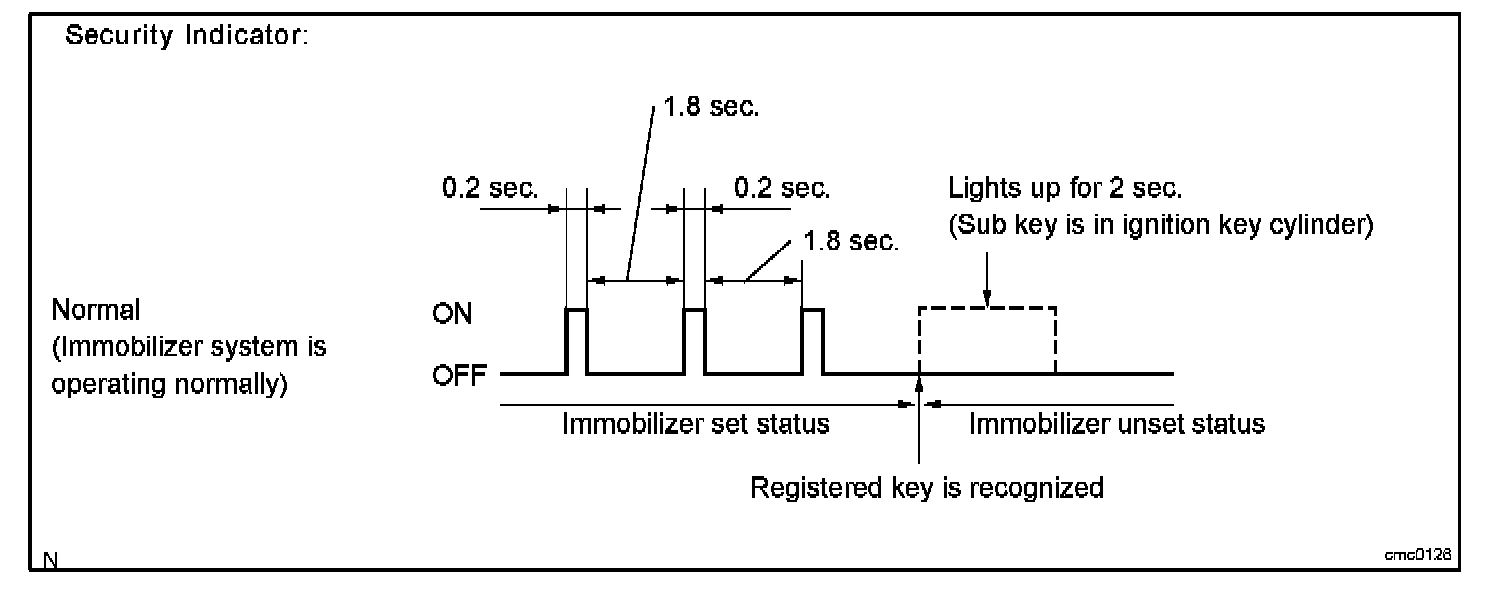

b. The security indicator operation pattern is as shown below (when changing from the immobilizer set status to the unset status):
