Navigation System: Service and Repair

Audio & Visual System:

NAVIGATION RECEIVER ASSEMBLY

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

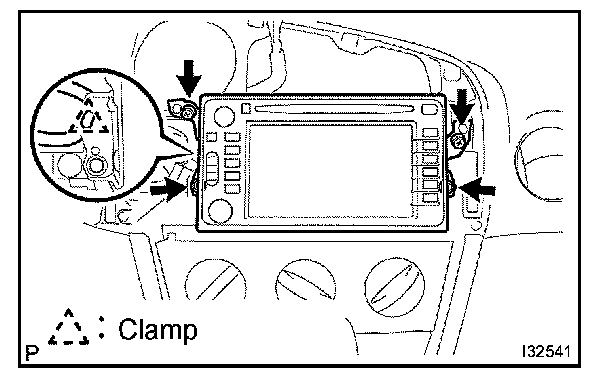

2. REMOVE NAVIGATION RECEIVER ASSEMBLY W/BRACKET
a. Remove the 4 screws.
b. Disconnect the clamp from the radio bracket No.2.
c. Disconnect the connectors, then remove the navigation receiver assembly w/bracket.

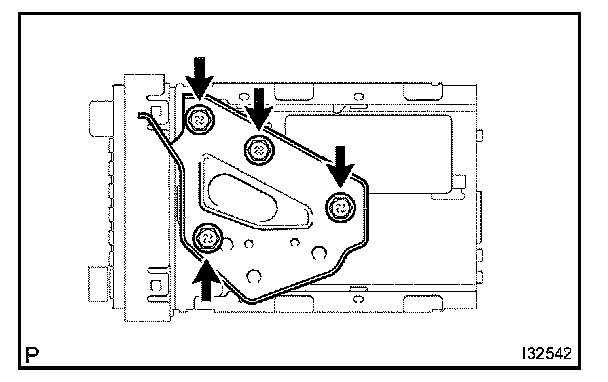

3. REMOVE RADIO BRACKET NO.1
a. Remove the 4 screws and radio bracket No.1.




4. REMOVE RADIO BRACKET NO.2
a. Remove the 4 screws and radio bracket No.2

5. REMOVE NAVIGATION RECEIVER ASSEMBLY
