Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2006
>>
Matrix 4WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Steering and Suspension
>>
Steering Gear
Steering Gear

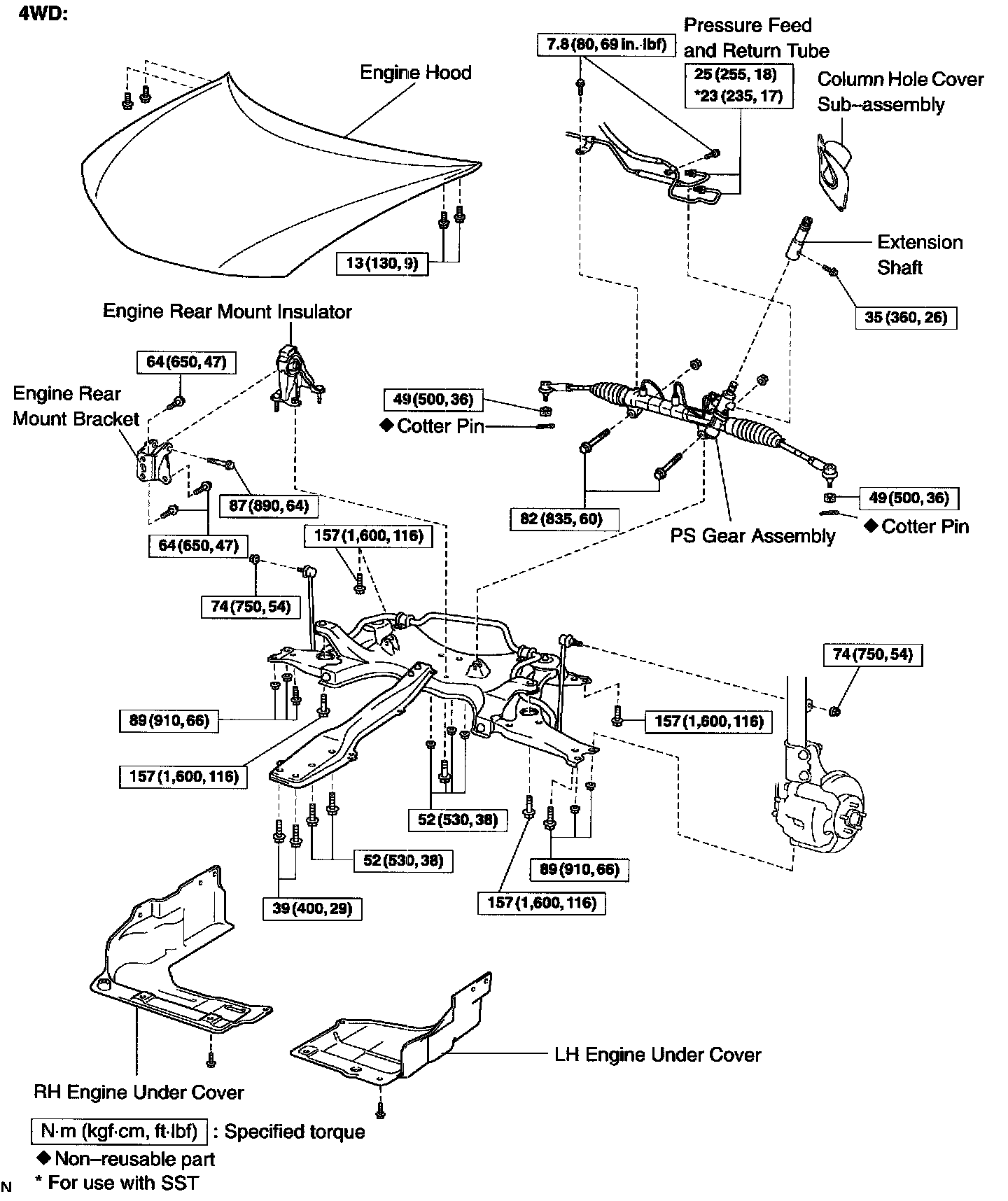

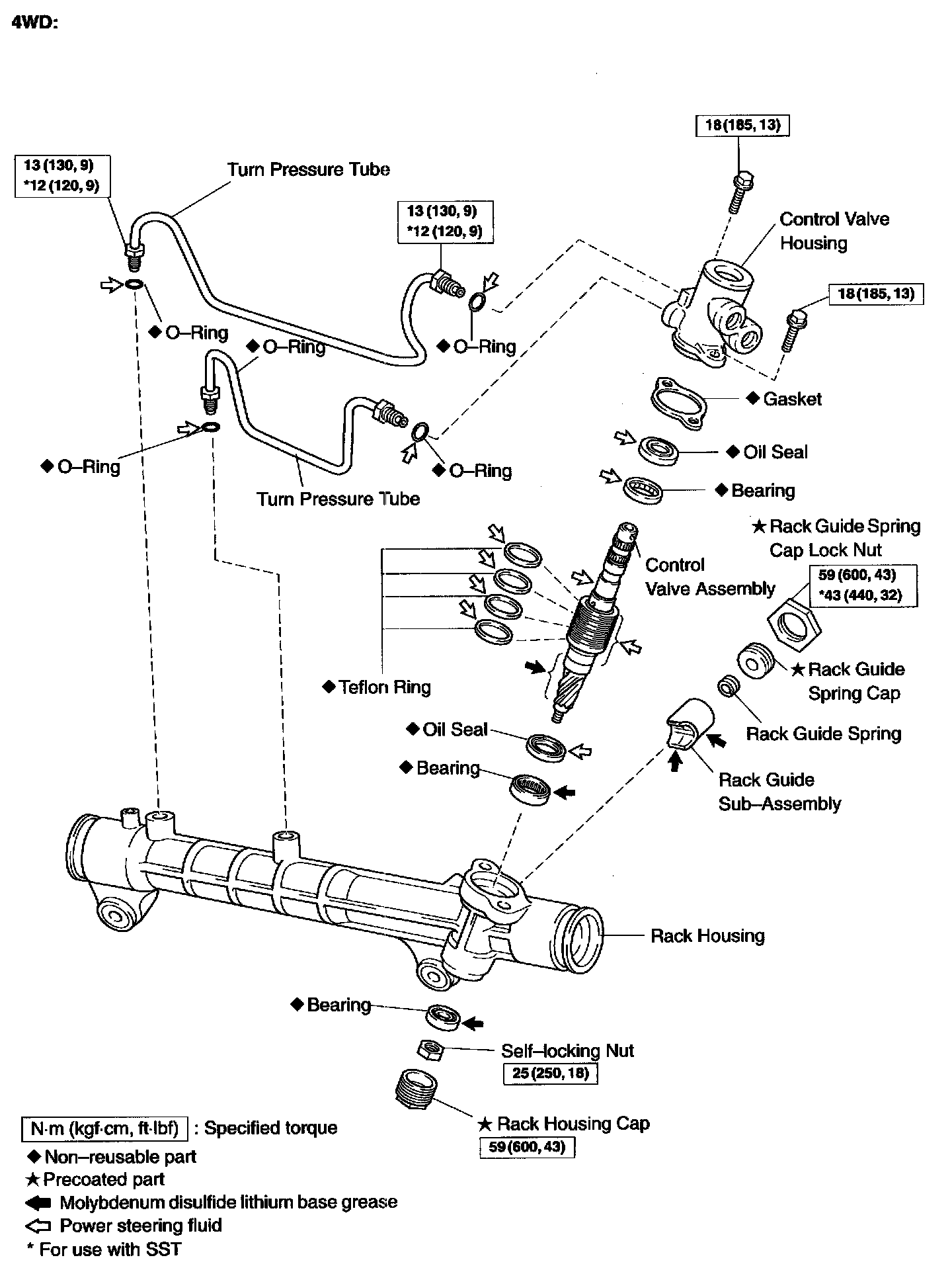

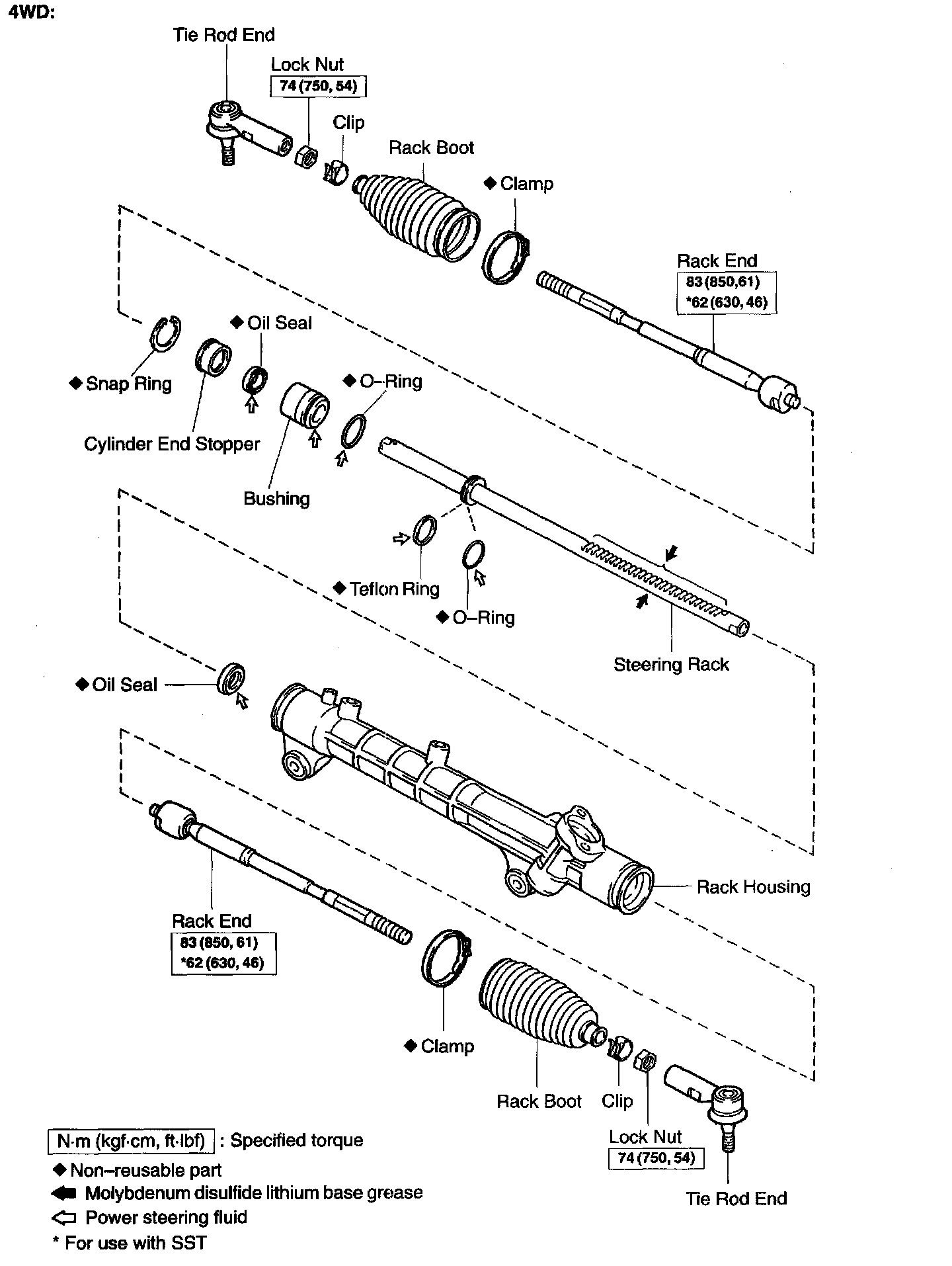

RACK & PINION POWER STEERING GEAR ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
