Clock: Service and Repair

CLOCK ASSY

REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER




2. REMOVE CLOCK ASSY

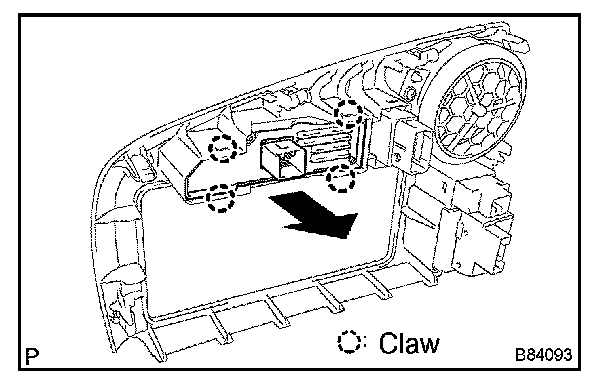

a. Disengage the 4 claws, and then remove the clock assy, as shown in the illustration.
