Operating Light Control Rheostat Does Not Change Light Brightness

OPERATING LIGHT CONTROL RHEOSTAT DOES NOT CHANGE LIGHT BRIGHTNESS

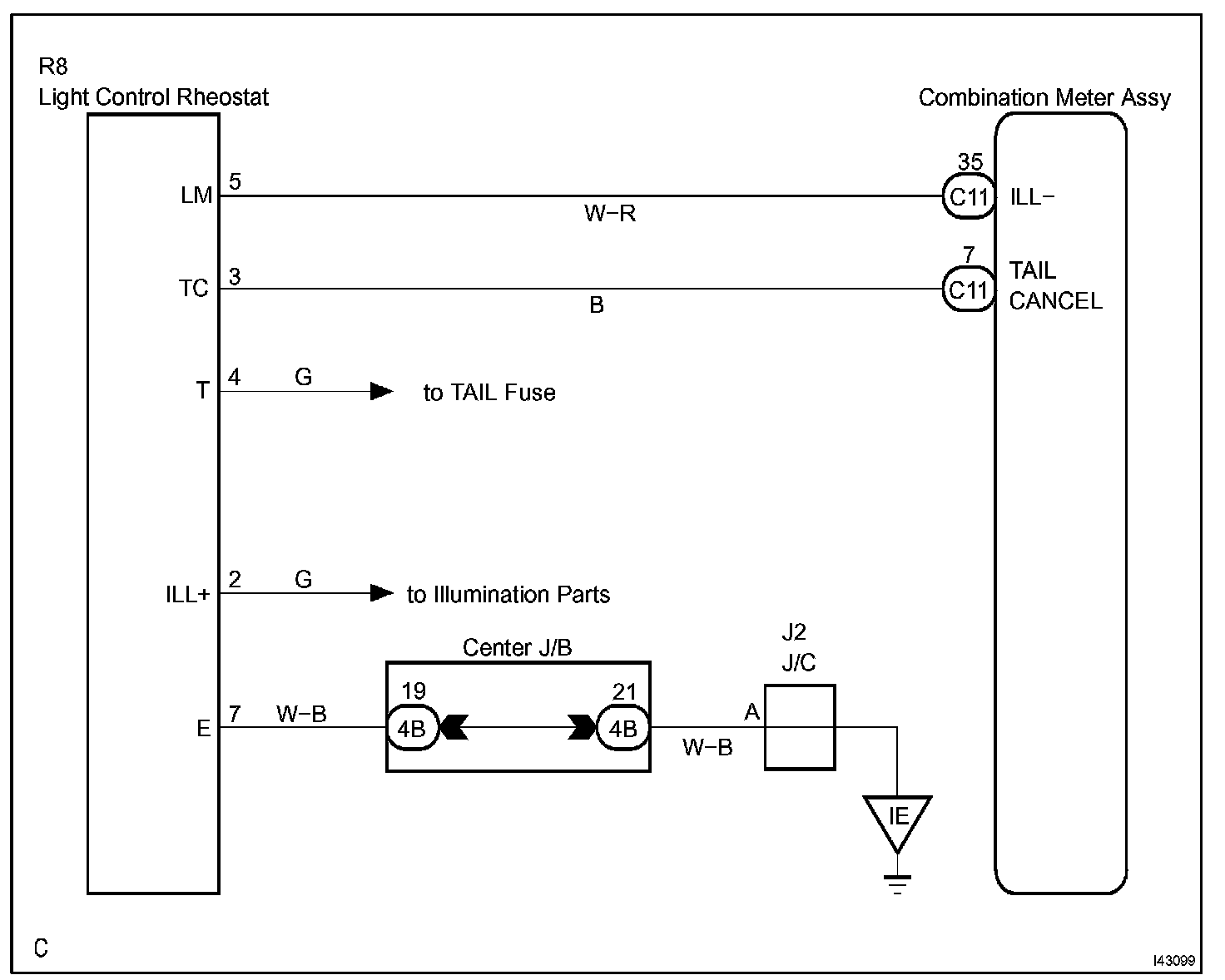

Wiring Diagram:

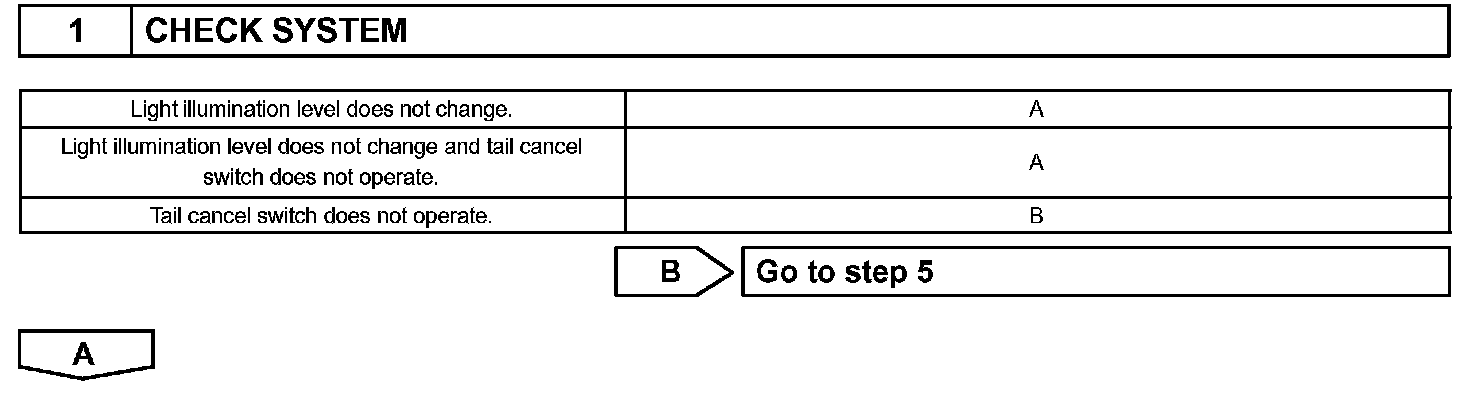

Step 1:

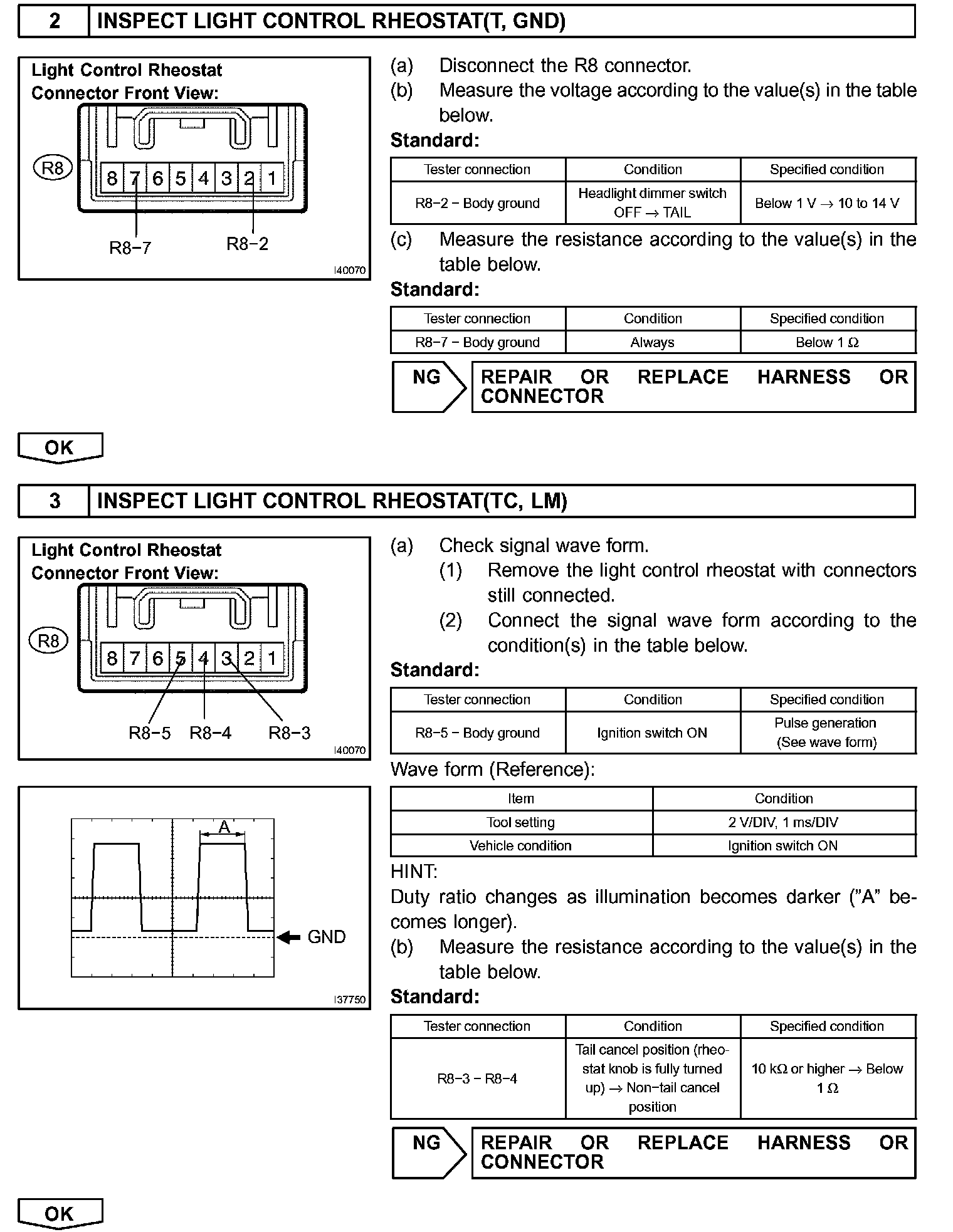

Step 2-3:

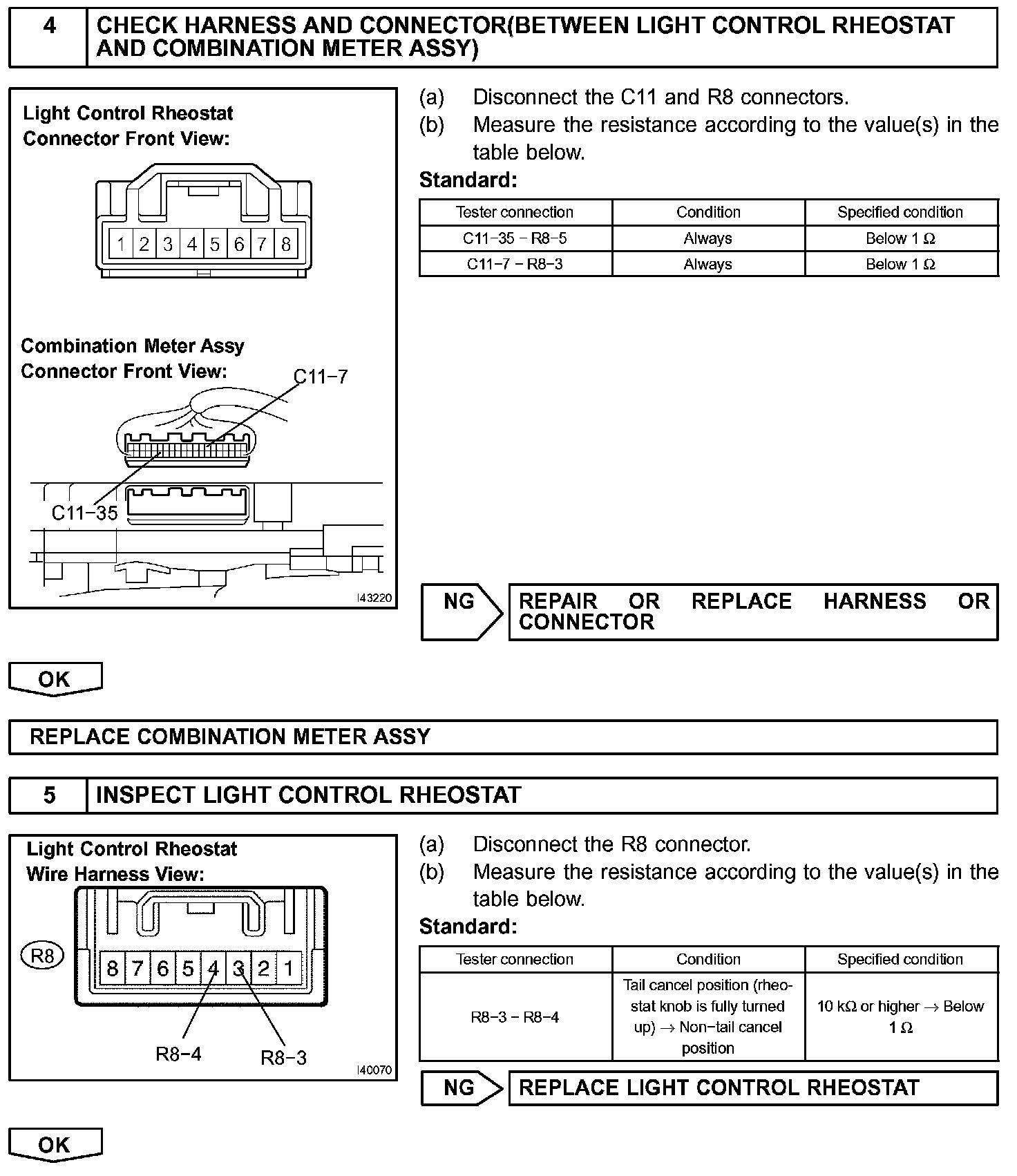

Step 4-5:

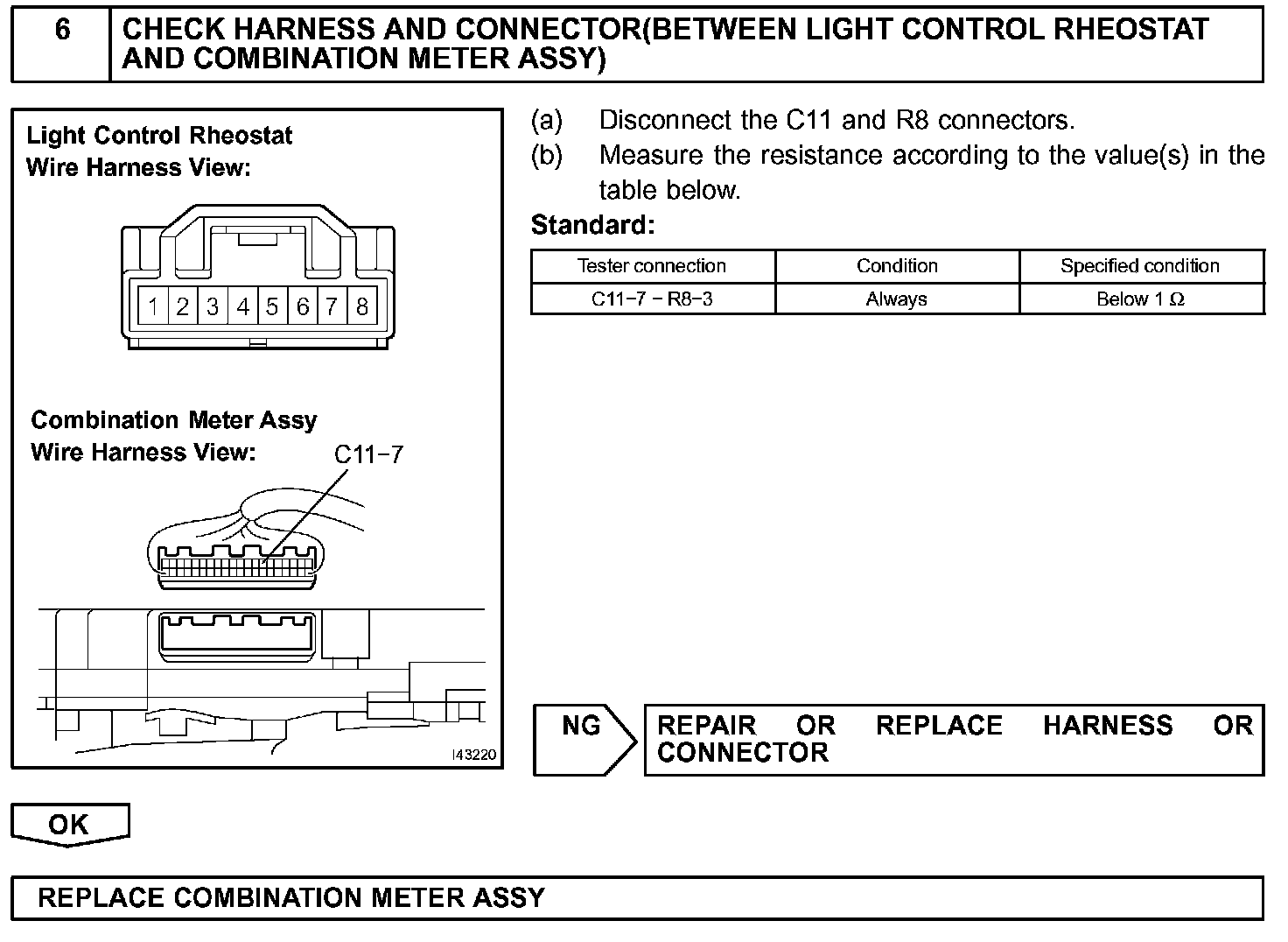

Step 6:




INSPECTION PROCEDURE
