Center Mounted Brake Lamp: Service and Repair
CENTER STOP LAMP ASSEMBLYREPLACEMENT
HINT: Installation is in the reverse order of removal.
1. REMOVE CENTER STOP LAMP ASSEMBLY

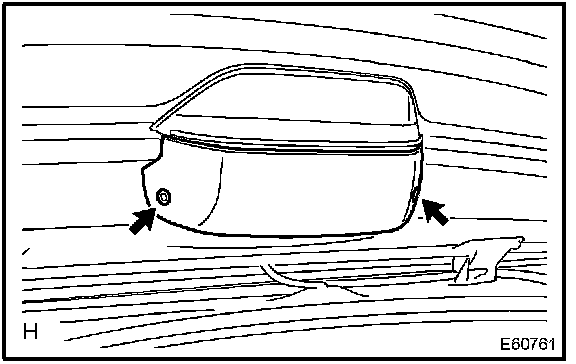

a. Remove the 2 clips and center stop lamp cover.
b. Remove the 2 nuts.
c. Disconnect the connector and remove the center stop lamp assembly.
