Rear

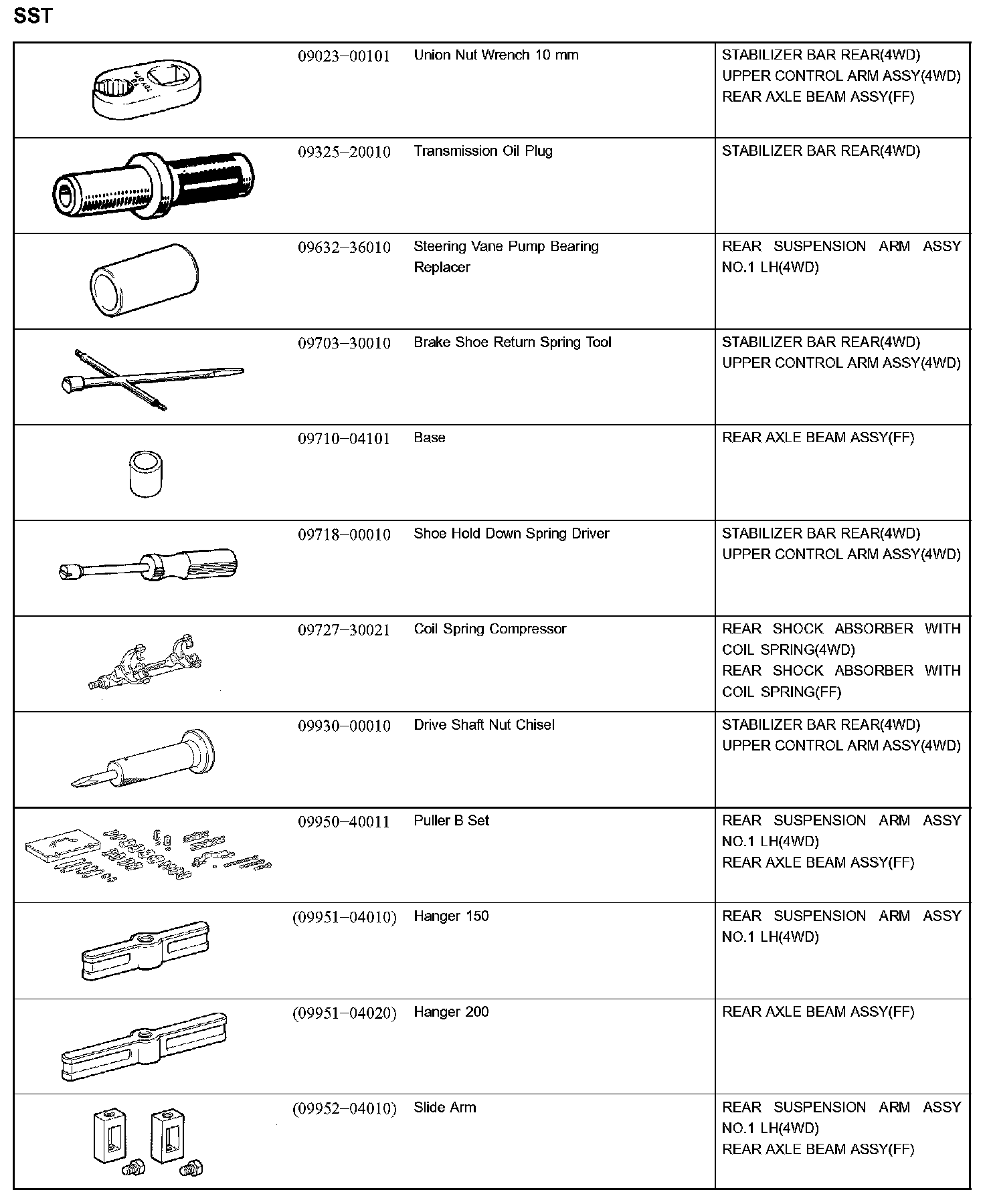

Rear Suspension-SST (Part 1):

Rear Suspension-SST (Part 2):

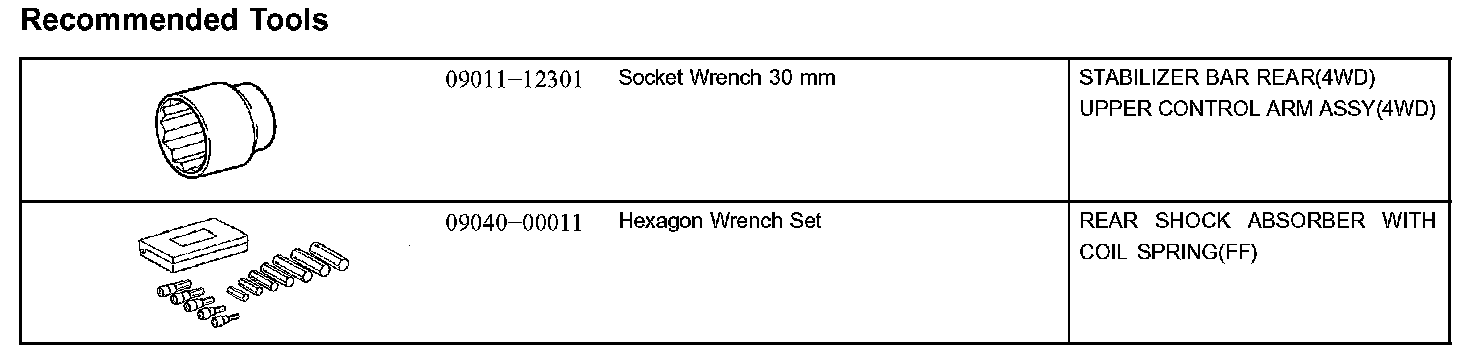

Rear Suspension-Recommended Tools (Part 1):

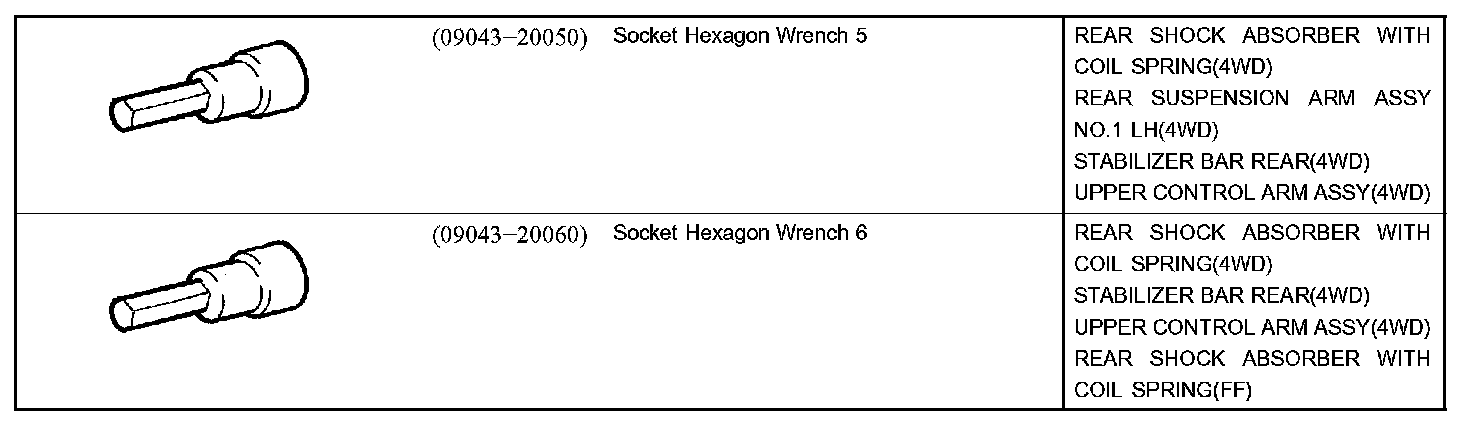

Rear Suspension-Recommended Tools (Part 2):

Rear Suspension-Equipment:
