On-Vehicle Inspection

ON-VEHICLE INSPECTION




1. WASHER MOTOR
a. Operation Check
1. Pour the water into the washer jar with the windshield washer motor and pump assembly installed to the washer jar assembly.

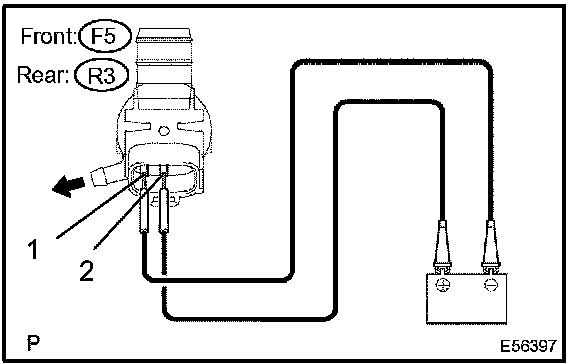

2. Connect the battery (+) to terminal 2 of the windshield washer motor and pump assembly, the battery (-) to terminal 1 of the windshield washer motor and pump assembly. Check that the water comes out from the washer jar.

2. REAR WIPER RELAY ASSY

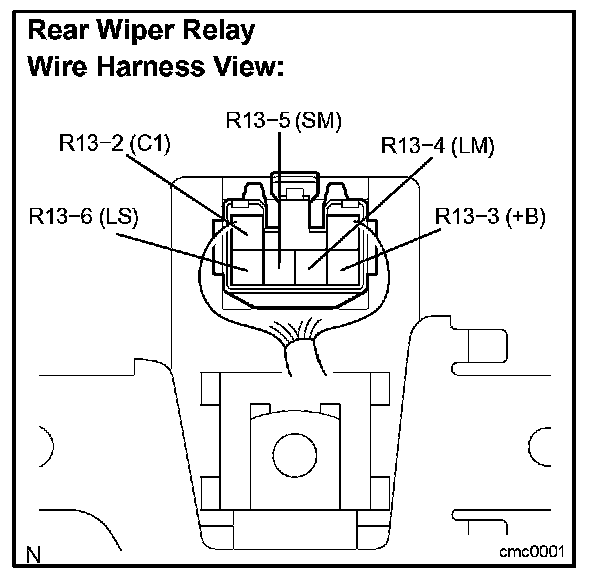

a. Disconnect the rear wiper relay connector.

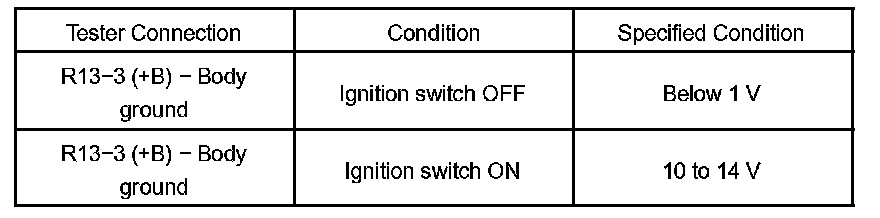

b. Measure the voltage according to the value(s) in the table.

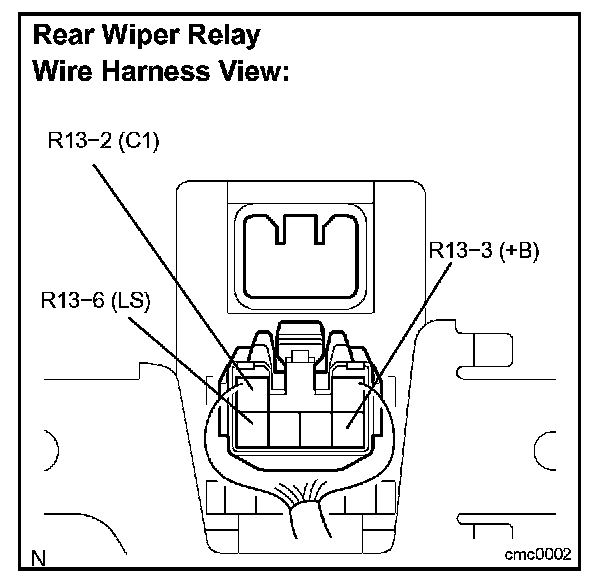

c. Measure the resistance according to the value(s) in the table.




d. Reconnect the rear wiper relay connector.
e. Turn the ignition switch to the ON position.
f. Make sure that the glass hatch is closed.




g. Measure the voltage according to the value(s) in the table.
