B1625

DTC B1625/22 Front Passenger Side - Side Airbag Sensor Assembly Circuit Malfunction

DESCRIPTION

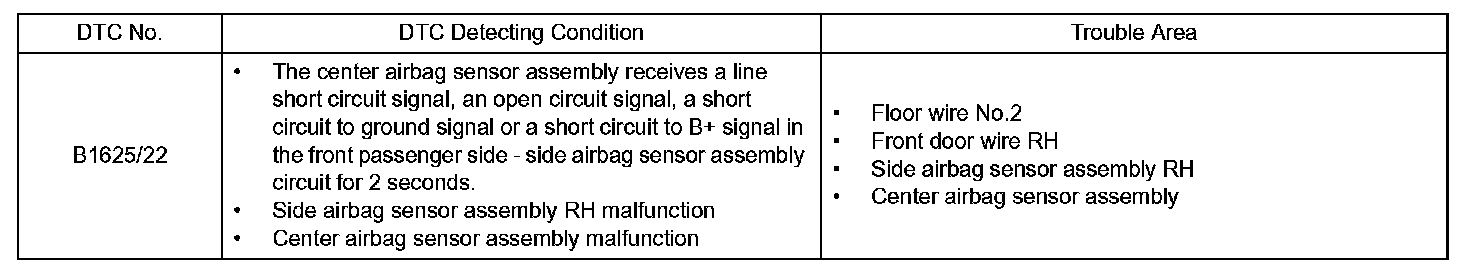

DTC Detecting Condition:

The side airbag sensor assembly RH consists of the safing sensor, the diagnostic circuit, the lateral deceleration sensor, etc.

If the center airbag sensor assembly receives signals from the lateral deceleration sensor, it determines whether or not the SRS should be activated.

DTC B1625/22 is recorded when a malfunction is detected in the front passenger side - side airbag sensor assembly circuit.

Wiring Diagram:

Step 1-2:

Step 3:

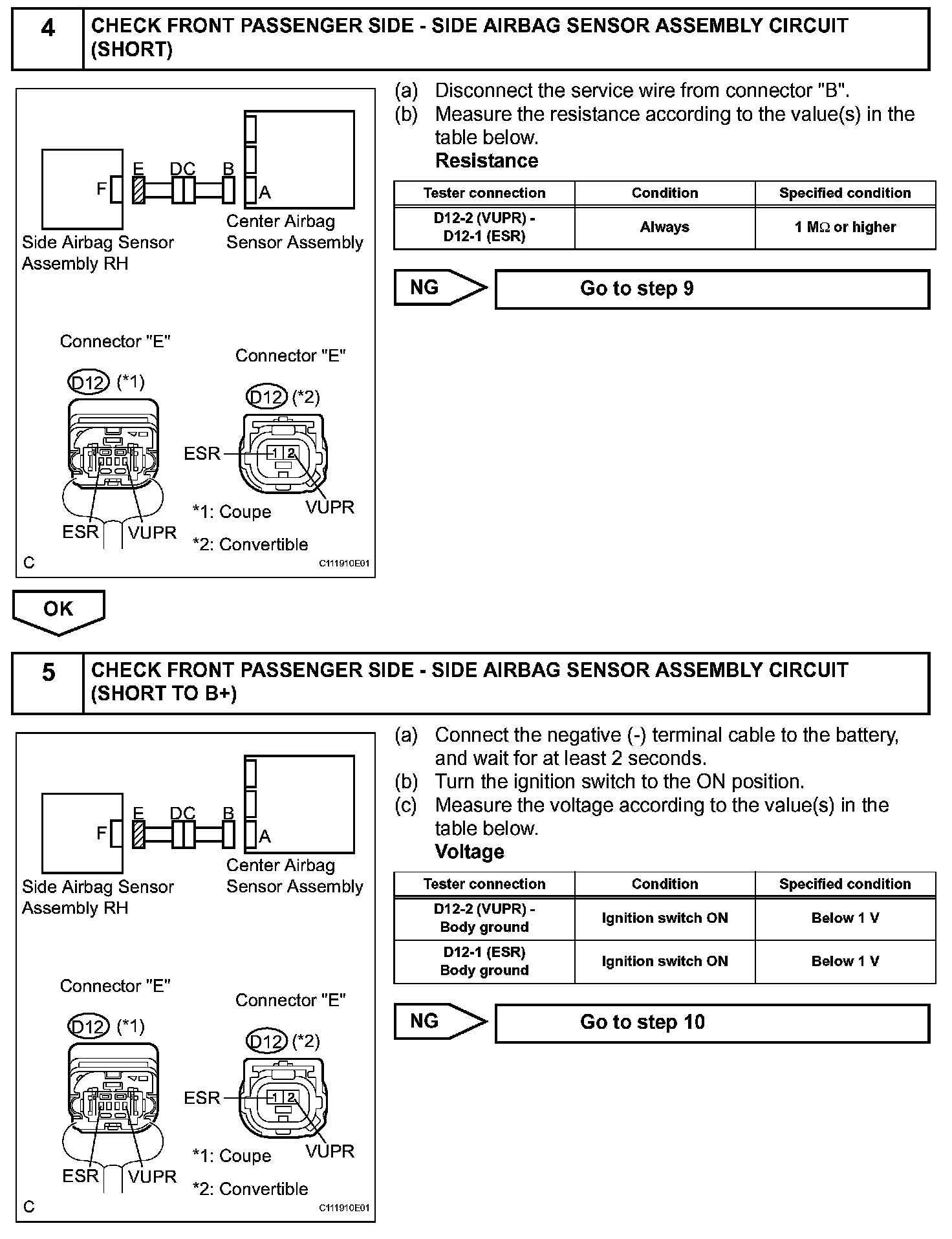

Step 4-5:

Step 5(continued)-7:

Step 7(continued)-8:

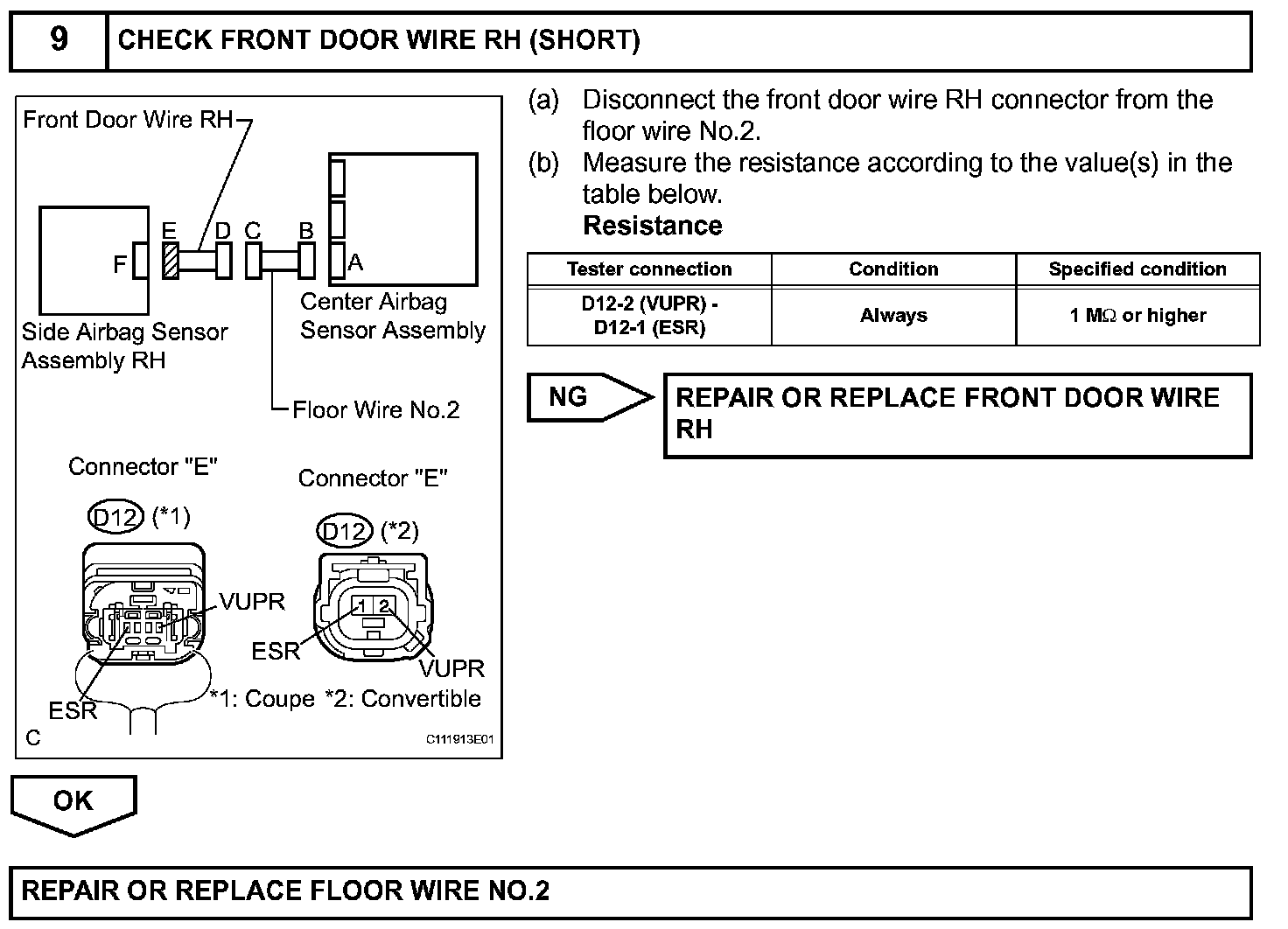

Step 9:

Step 10:

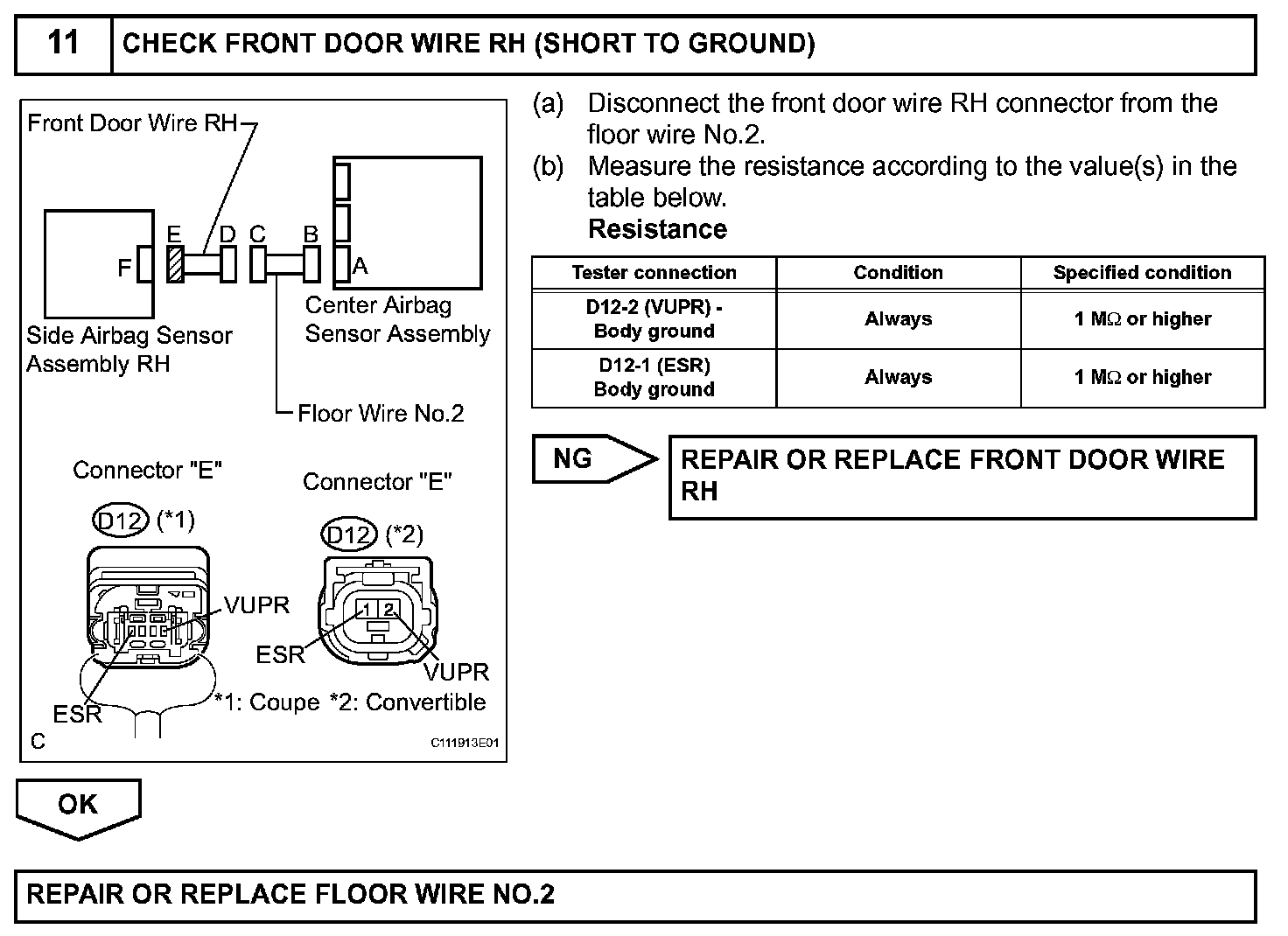

Step 11:

INSPECTION PROCEDURE
