B1660

DTC B1660/43 Passenger Airbag ON / OFF Indicator Circuit Malfunction

DESCRIPTION

DTC Detecting Condition:

The passenger airbag ON/OFF indicator circuit consists of the center airbag sensor assembly and the clock assembly.

This circuit indicates the operation condition of the front passenger airbag assembly and the front passenger side - side airbag and front passenger side front seat belt pretensioner.

DTC B1660/43 is recorded when a malfunction is detected in the passenger airbag ON/OFF indicator circuit.

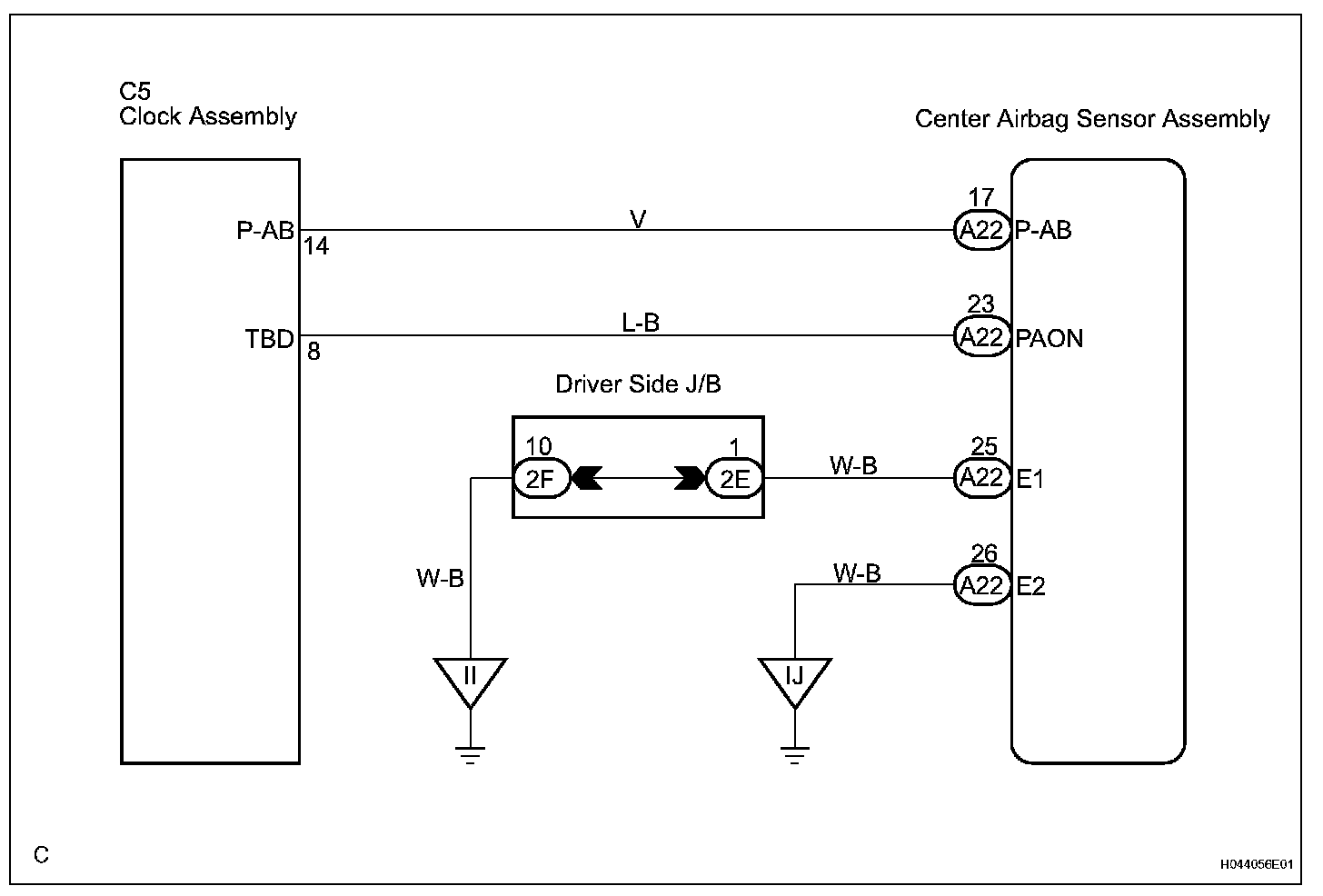

Wiring Diagram:

Step 1:

Step 1(continued)-2:

Step 2(continued)-3:

Step 4-5:

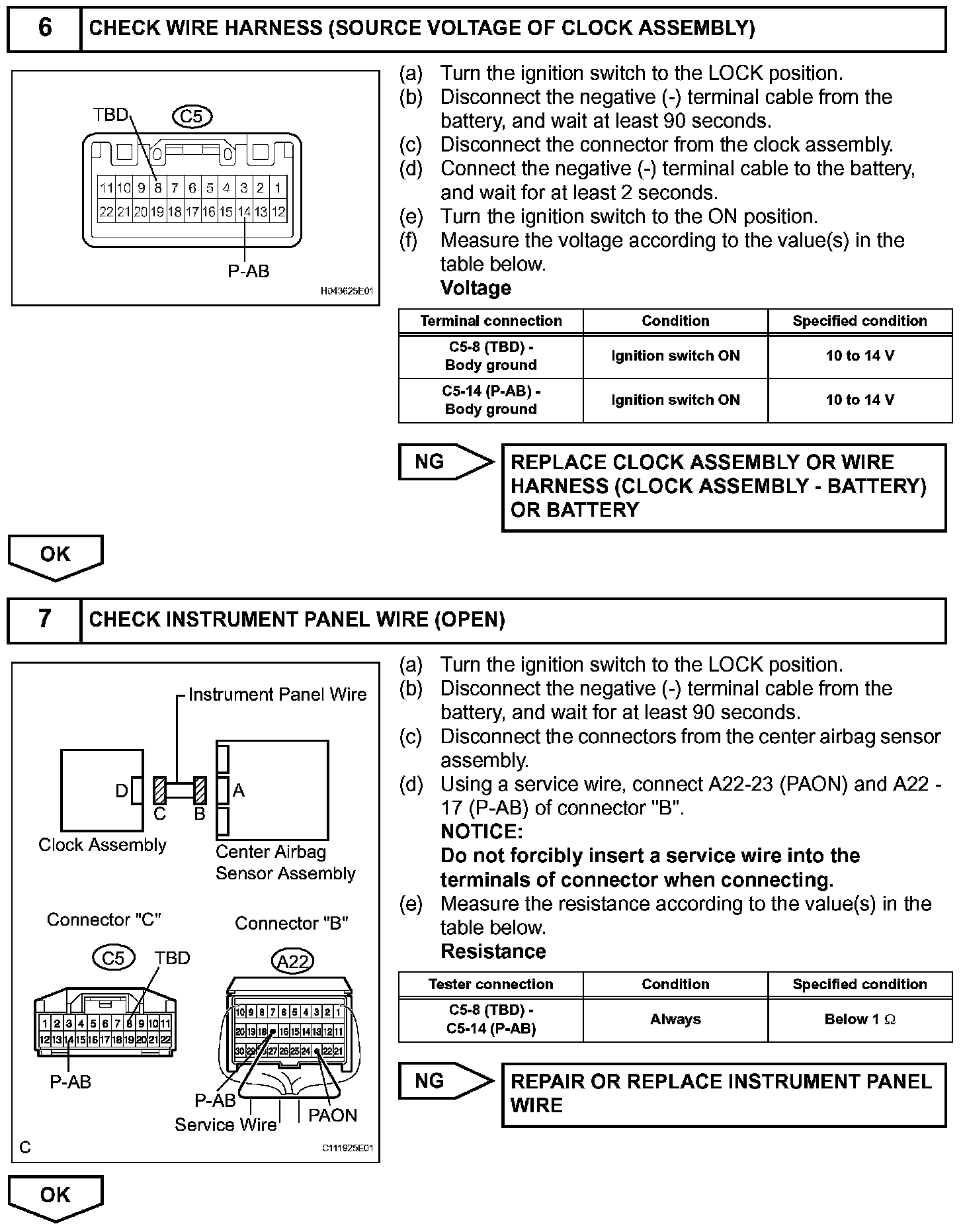

Step 6-7:

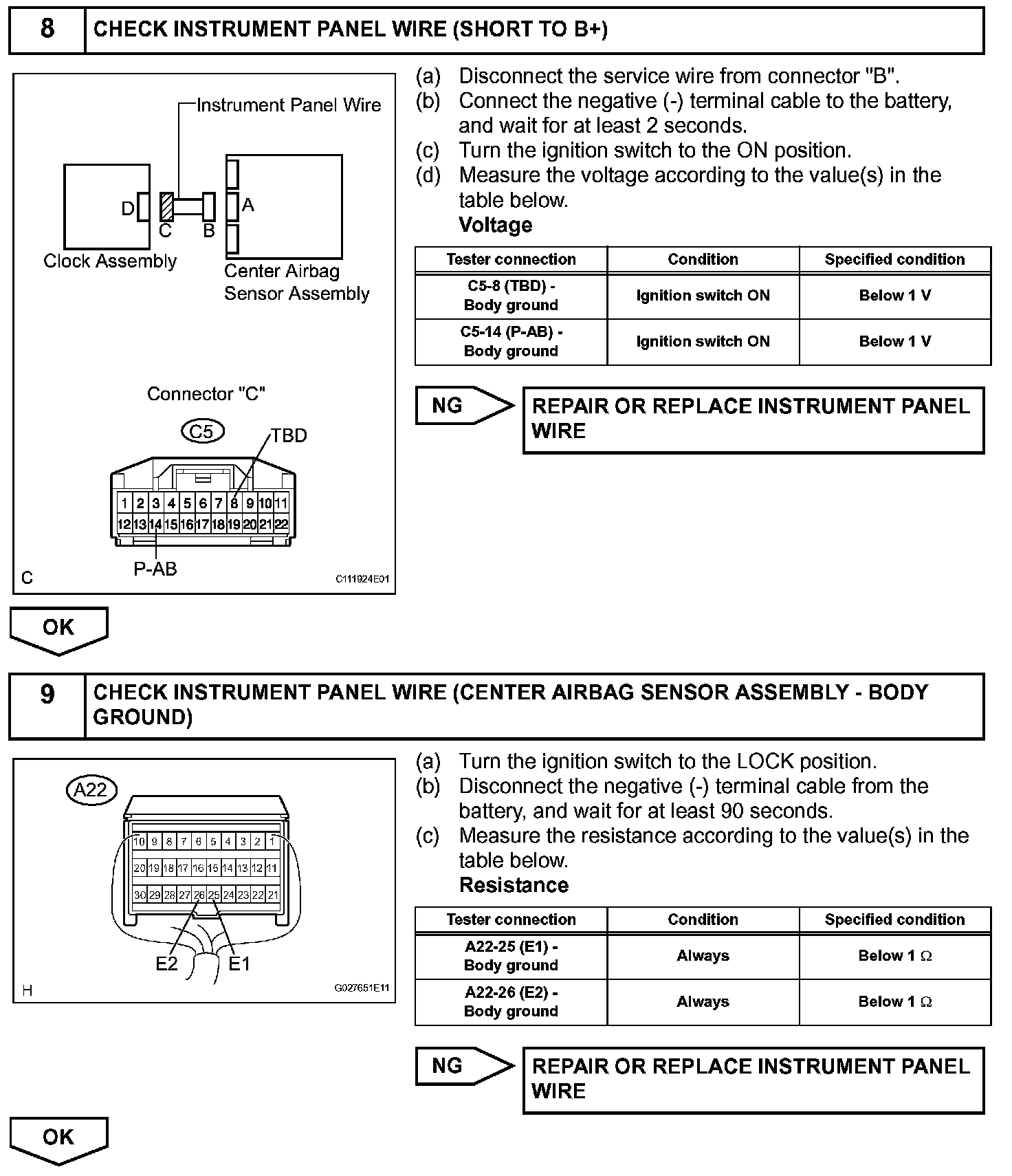

Step 8-9:

Step 10:

INSPECTION PROCEDURE
