DTC B2796 No Communication in Immobilizer System
DTC B2798 Communication Malfunction No.2

DESCRIPTION

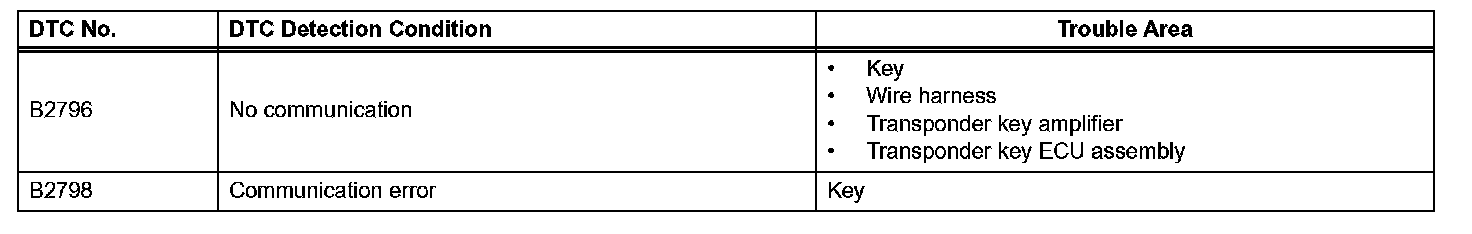

DTC Detection Condition:

This DTC is output when a key that does not have a transponder chip is inserted into the ignition key cylinder or if communication between the key and transponder key ECU is not possible.

Wiring Diagram:

INSPECTION PROCEDURE

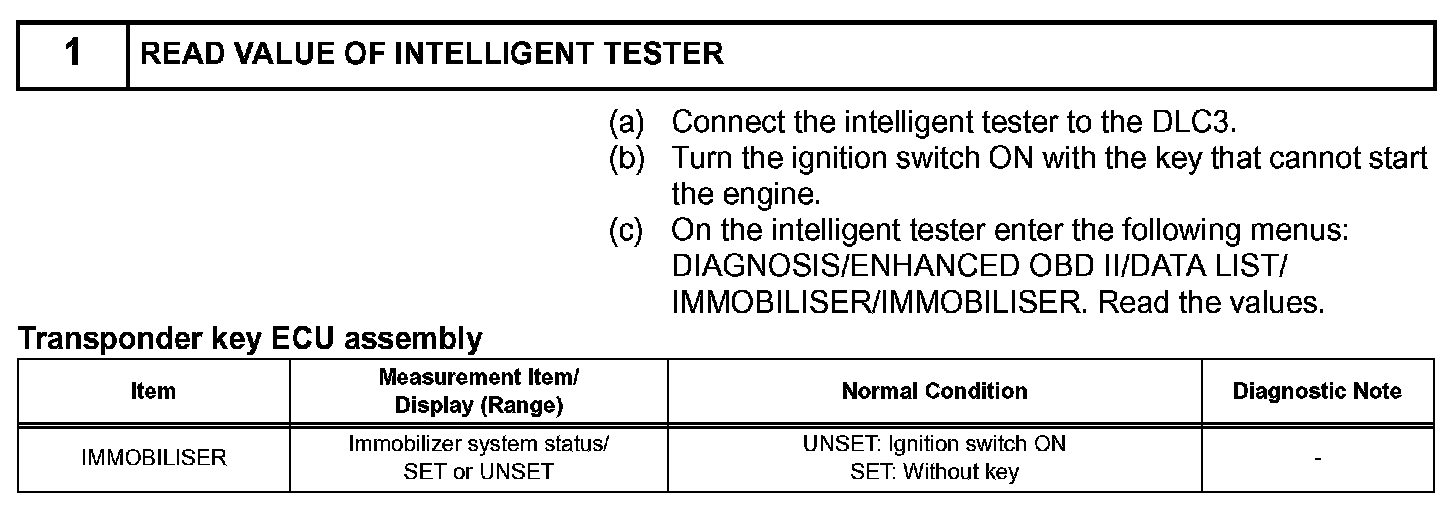

Step 1:

Step 1(continued)-3:

Step 4-5:
