Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the parts listed in the table and proceed.

HINT:
- *1: Comes on MIL (Malfunction Indicator Lamp) light up
- *2: DTC stored mark means ECM memorizes the malfunction code if the ECM detects the DTC detection condition.
- This DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.

DTC P0705-P0724:

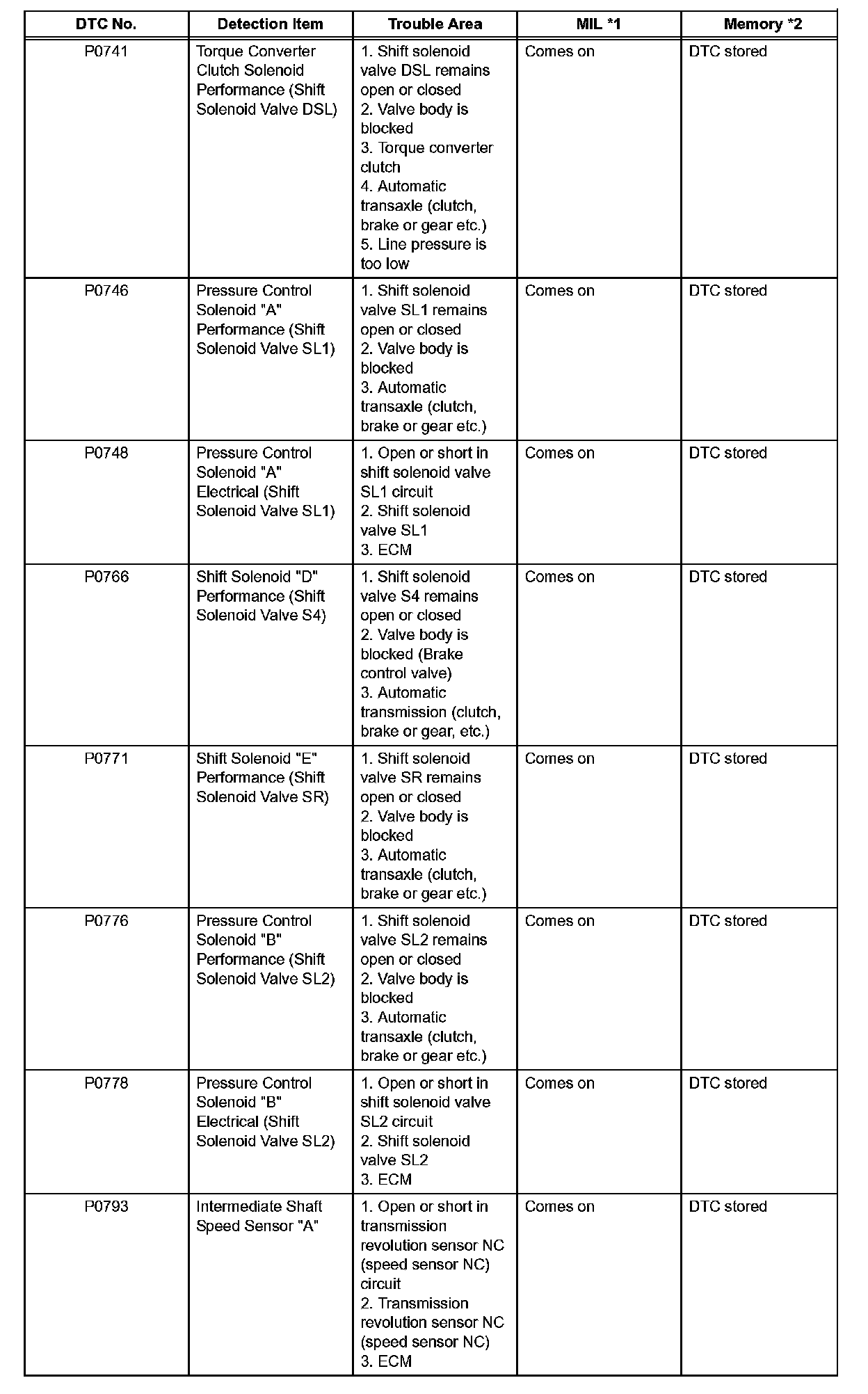

DTC P0741-P0793:

DTC P0796-P2770:
