Air Conditioning System
DTC 33 Air Outlet Damper Position Sensor CircuitDESCRIPTION

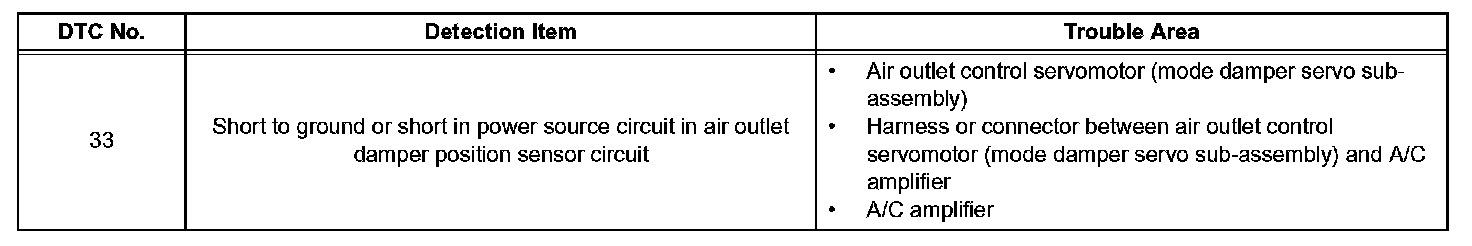

Detection Item:

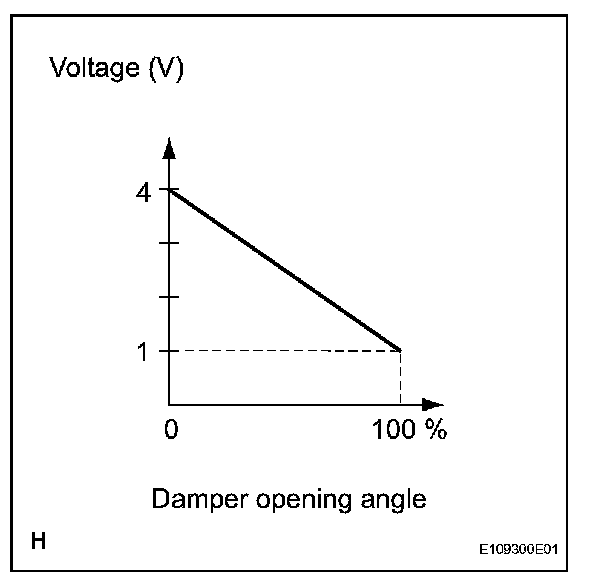

This sensor detects the position of the air outlet control servomotor (mode damper servo sub-assembly) and sends the appropriate signals to the A/C amplifier. The position sensor is built in the air outlet control servomotor (mode damper servo sub-assembly).
Wiring Diagram:
INSPECTION PROCEDURE

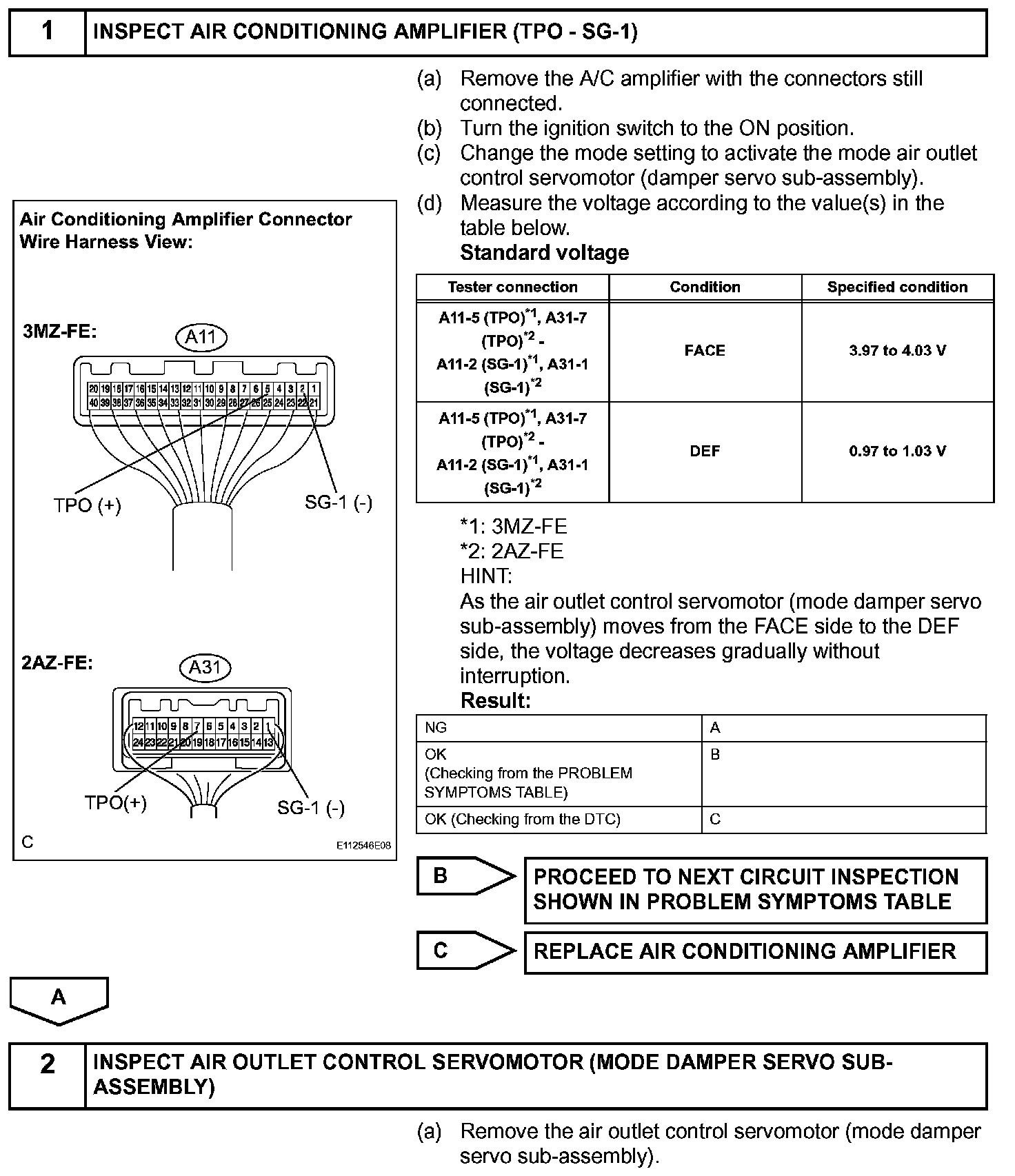

Step 1-2:

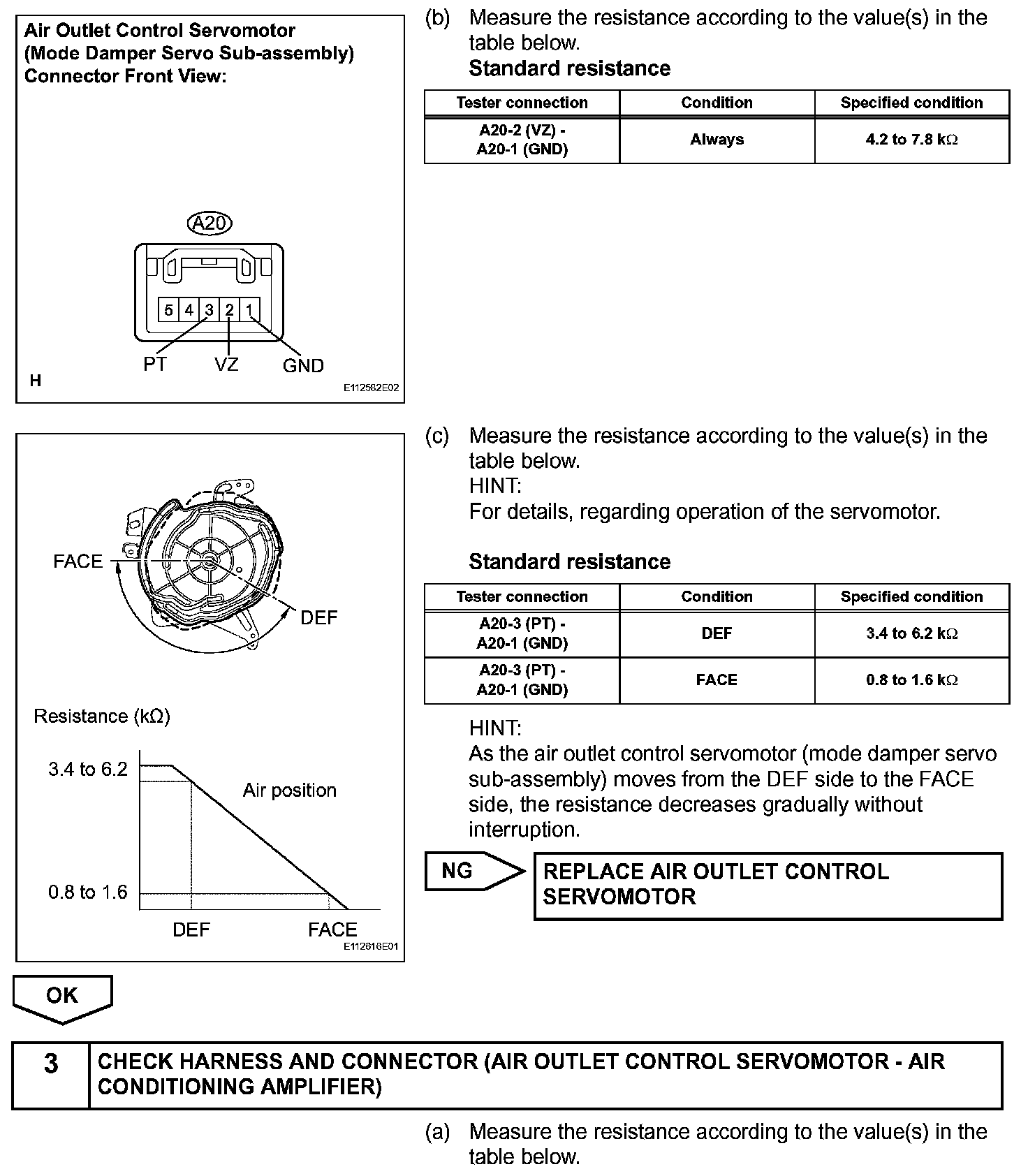

Step 2(continued)-3:

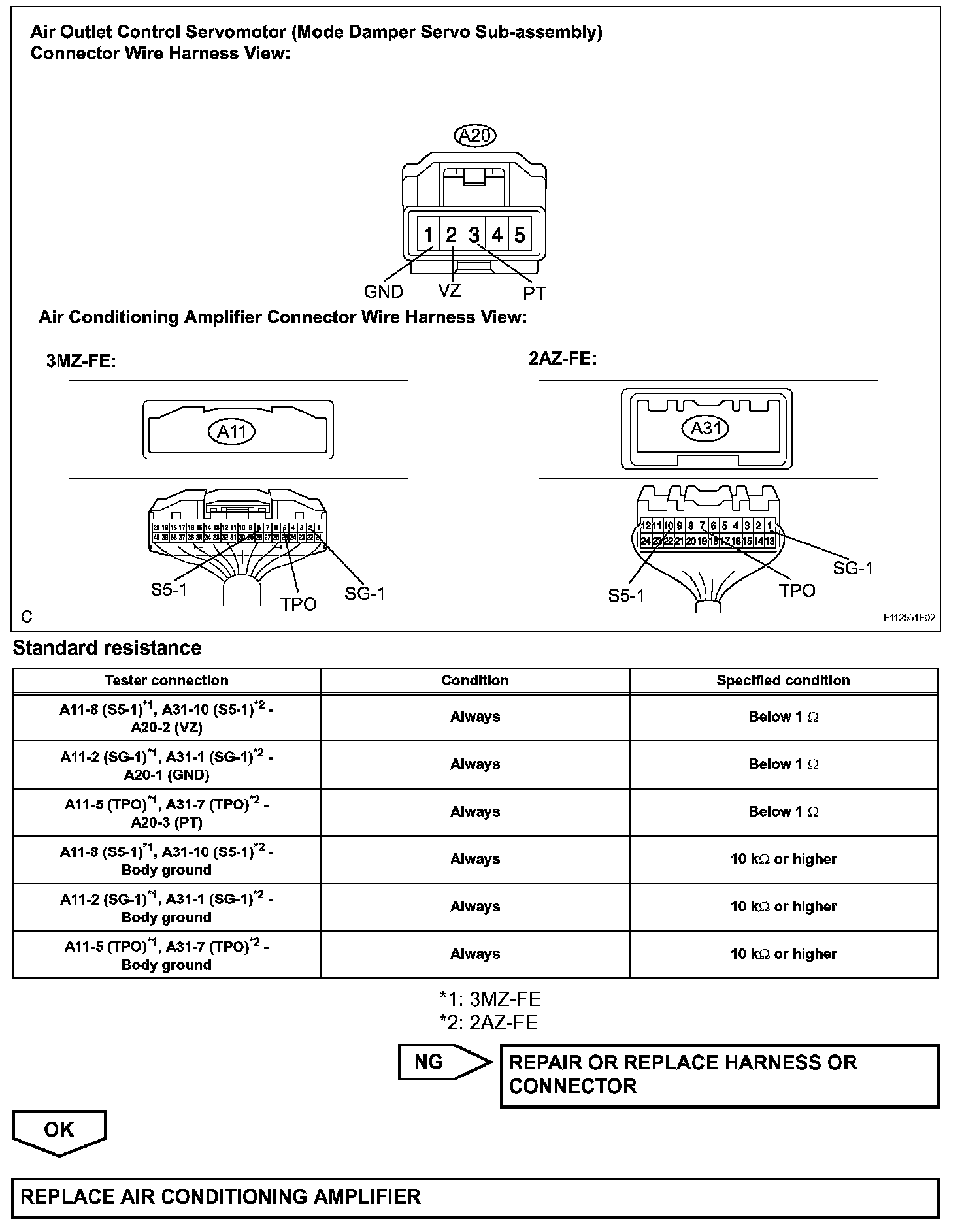

Step 3(continued):
