Home >> Toyota >> 2006 >> Solara V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Headliner

Headliner

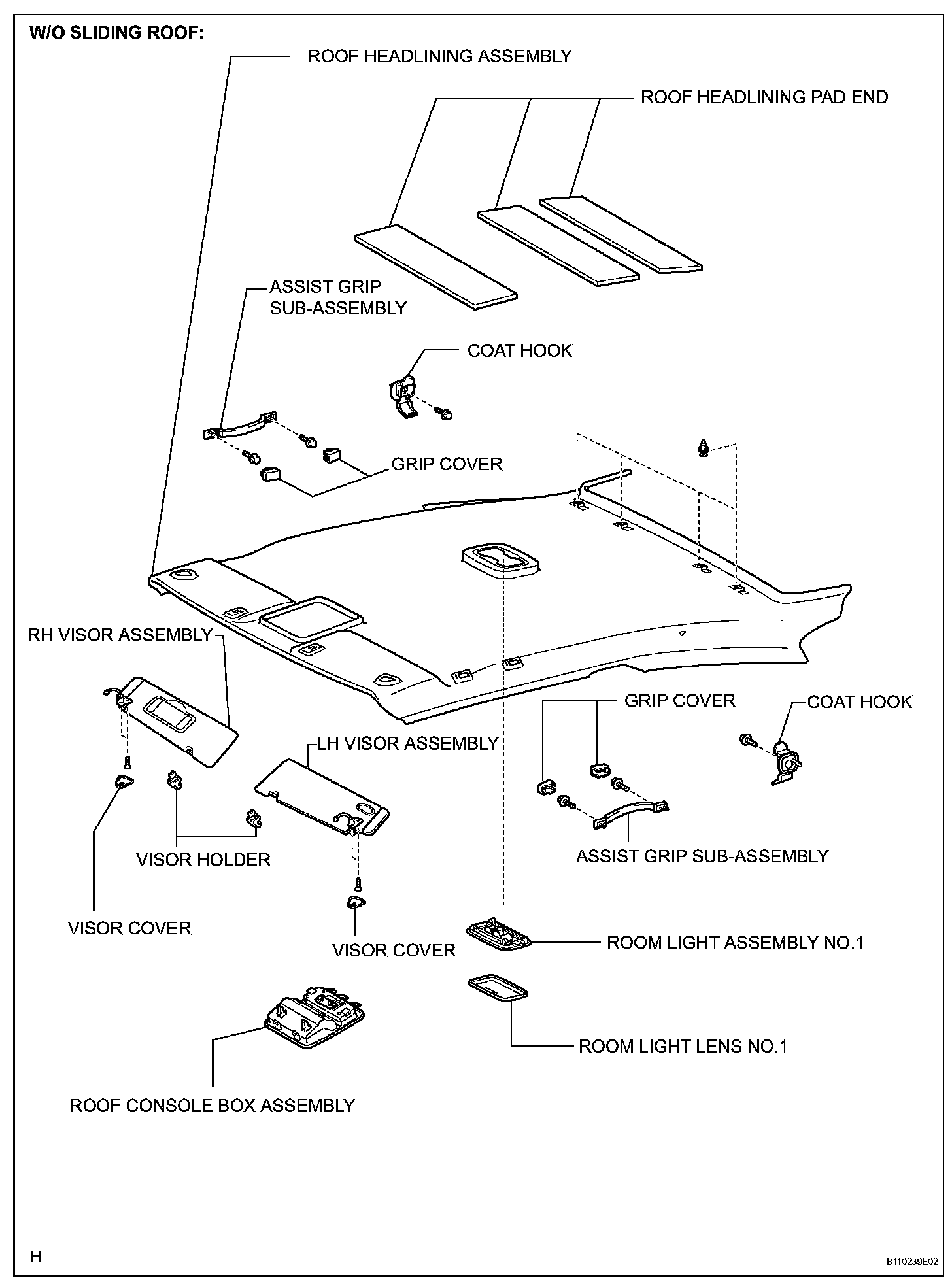

Roof Headlining (Coupe):



Roof Headlining (Coupe):



Roof Headlining (Coupe):



Roof Headlining (Convertible):
