Seats

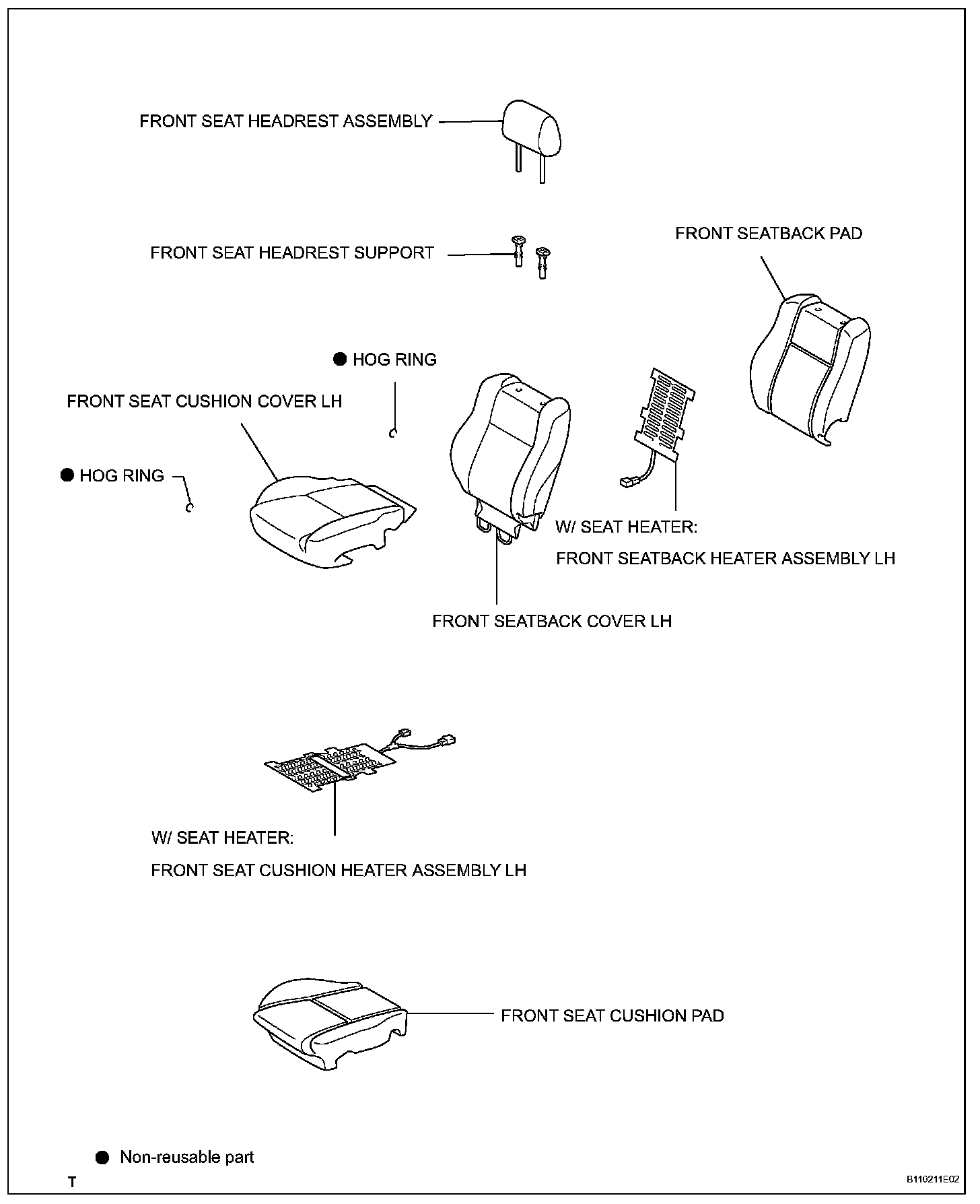

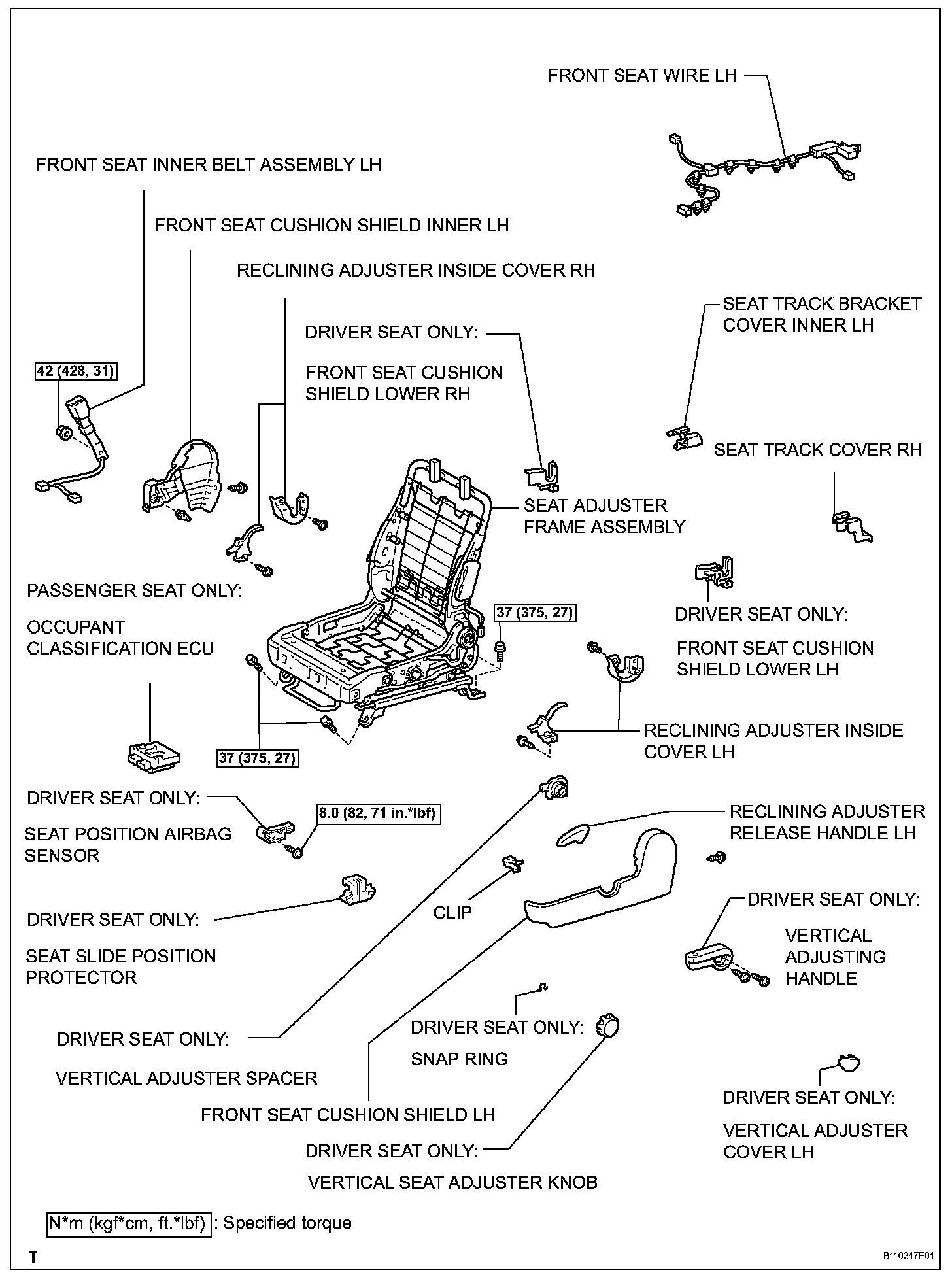

Front Seat Assembly (for Manual Seat):



Front Seat Assembly (for Manual Seat):



Front Seat Assembly (for Power Seat):



Front Seat Assembly (for Power Seat):

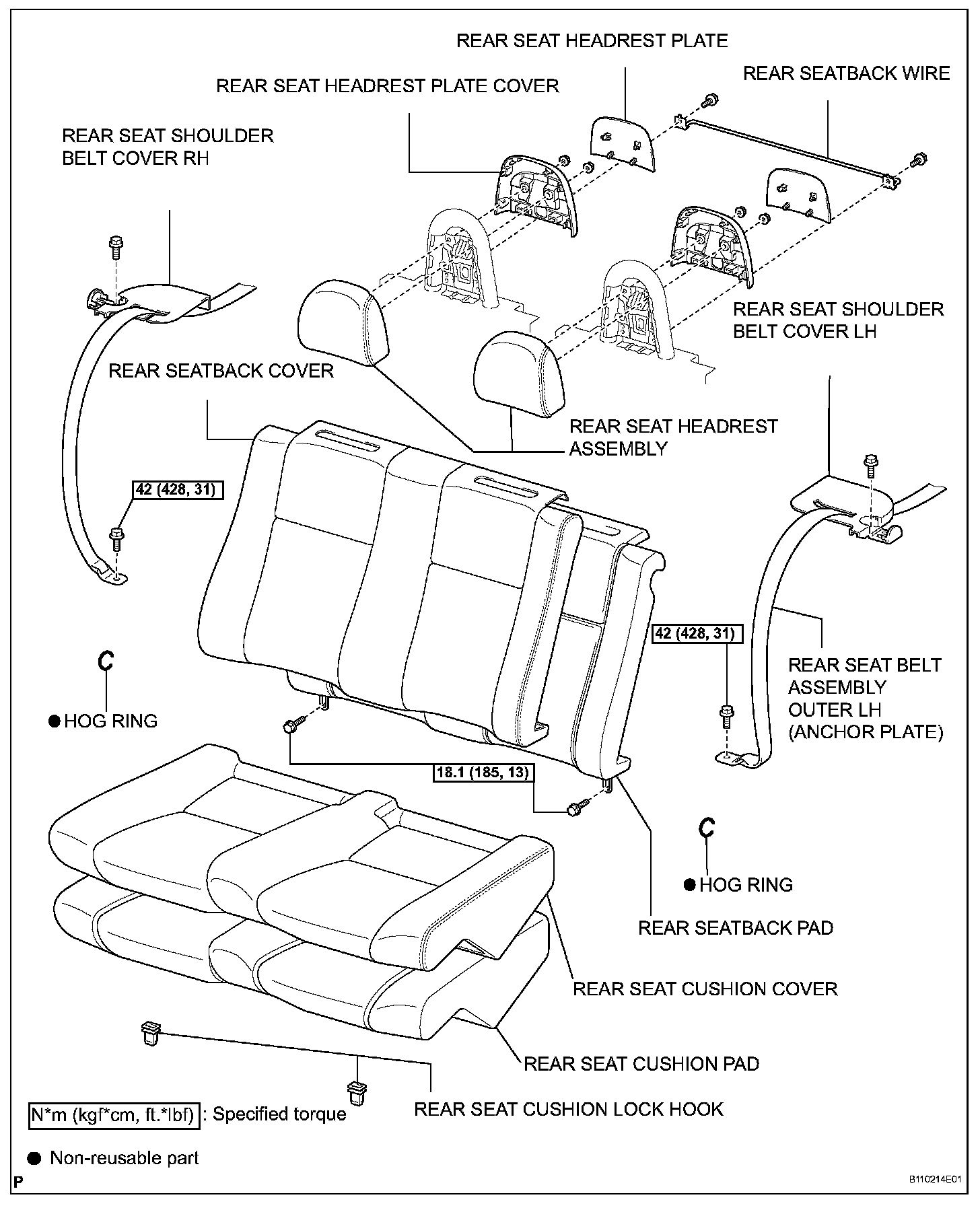

Rear Seat Assembly (Coupe):



Rear Seat Assembly (Coupe):

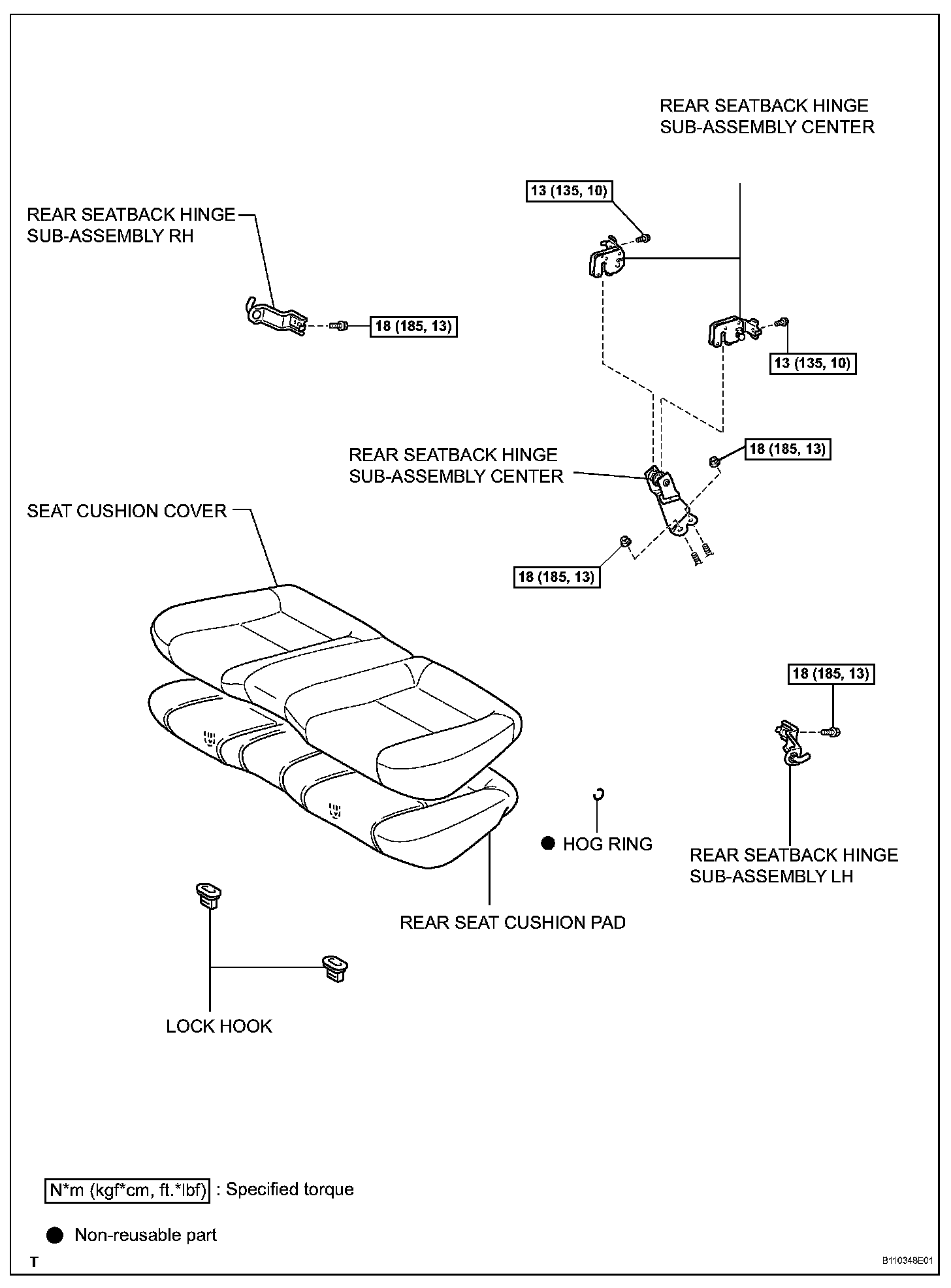

Rear Seat Assembly (Convertible):
