Blower Motor Relay: Testing and Inspection
HEATER BLOWER MOTOR RELAYINSPECTION
1. INSPECT HEATER BLOWER MOTOR RELAY ASSEMBLY
a. Remove the relay (heater blower motor relay) from the engine room R/B.

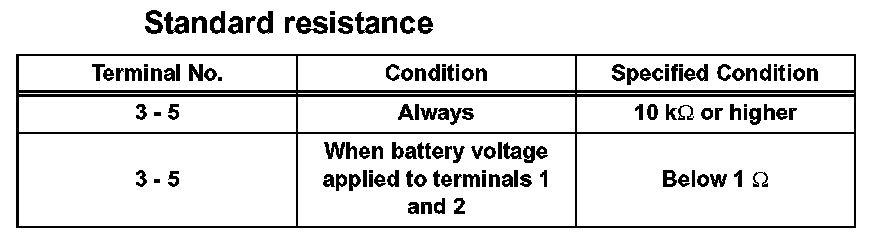

b. Measure the resistance according to the value(s) in the given table.
If the resistance is not as specified, replace the blower motor relay.
