Blower Motor Resistor: Testing and Inspection

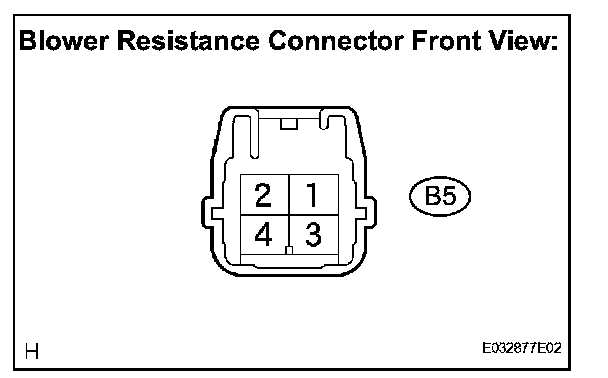

INSPECT BLOWER RESISTOR

HINT: The blower resistor can be removed following the removal and disassembly procedure for the blower assembly

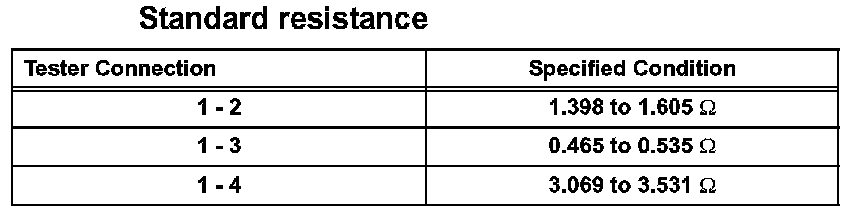

a. Measure the resistance according to the value(s) in the given table.
If the resistance is not as specified, replace the blower resistor.
