Instrument Cluster / Carrier: Service and Repair

Instrument Panel Safety Pad:

REMOVAL

HINT: Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL LOWER
2. REMOVE INSTRUMENT PANEL FINISH PLATE
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
4. REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY NO.1
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

6. REMOVE COMBINATION METER ASSEMBLY

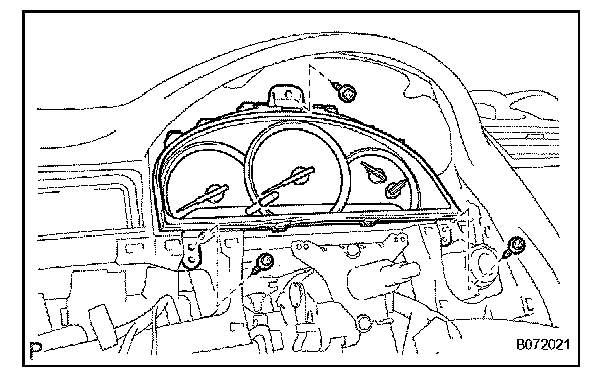

a. Remove the 3 screws.
b. Pull out the combination meter assembly, then disconnect the connectors.

7. REMOVE COMBINATION METER GLASS
a. Disengage the 8 claws and remove the combination meter glass.

INSTALLATION

1. INSTALL COMBINATION METER GLASS
2. INSTALL COMBINATION METER ASSEMBLY
3. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
4. INSTALL INSTRUMENT PANEL REGISTER ASSEMBLY NO.1
5. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER
6. INSTALL INSTRUMENT PANEL FINISH PLATE
7. INSTALL INSTRUMENT CLUSTER FINISH PANEL LOWER
