Speedometer Head: Testing and Inspection

INSPECT SPEEDOMETER







a. Check the operation.

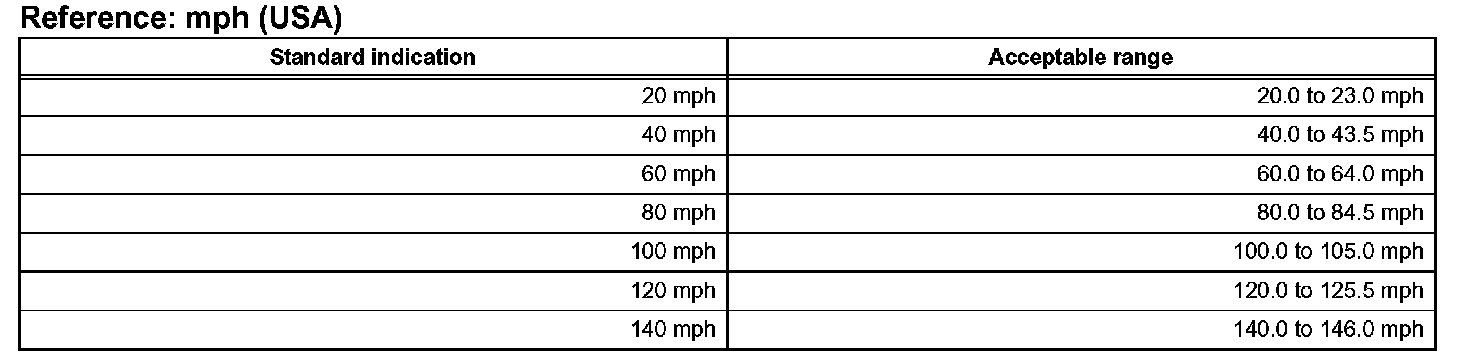

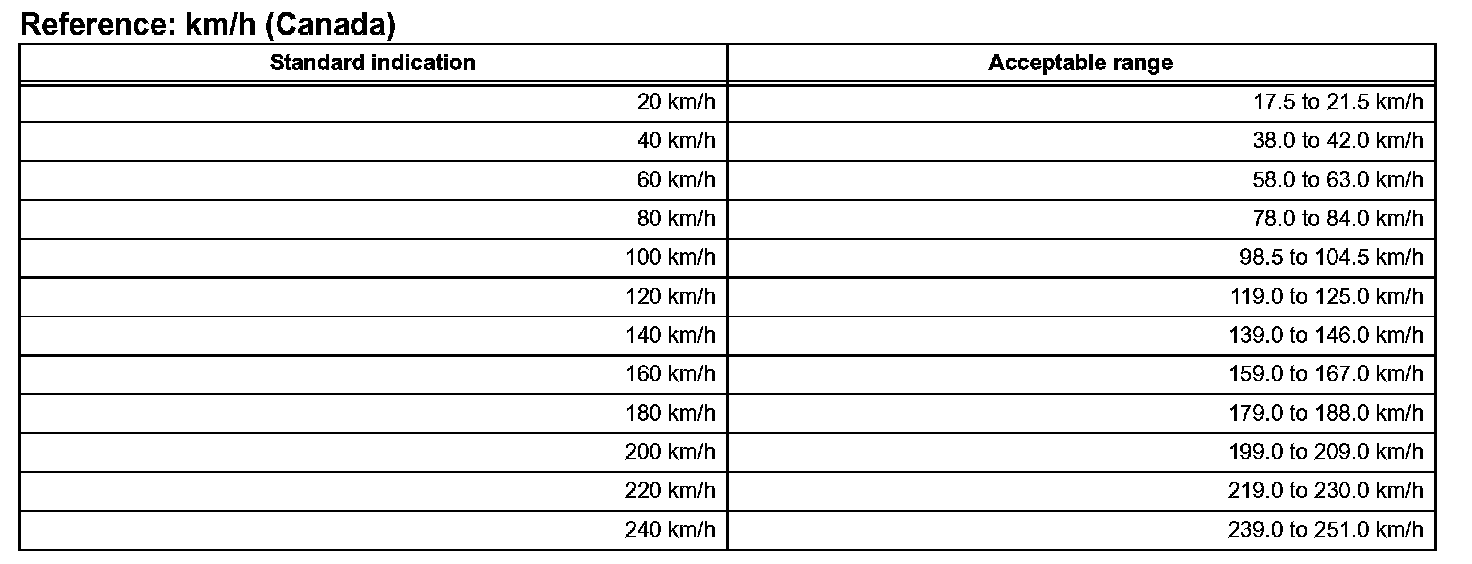

1. Using a speedometer tester, inspect the speedometer for acceptable indication error and check the operation of the odometer.

NOTE: Tire wear and over or under tire pressure will affect indication error.

2. Check the deflection width of the speedometer indicator.

Reference: Below 0.5 km/h (0.3 mph)
