Key Cylinder Lamp: Testing and Inspection

IGNITION KEY CYLINDER LIGHT

INSPECTION




1. TRANSPONDER KEY AMPLIFIER
a. Inspect ignition key cylinder light operation.

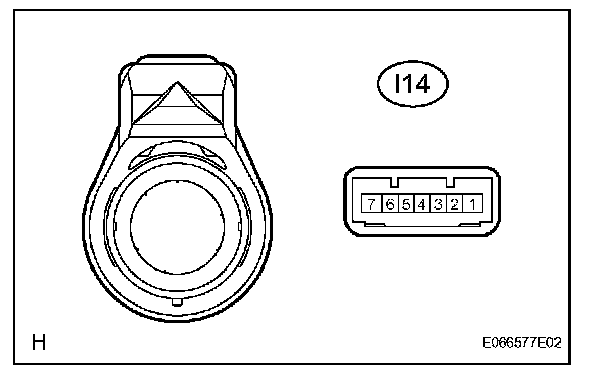

1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 6, then check that the illumination comes on.

OK:
Illumination comes on.
