Seat Belt Systems: Description and Operation

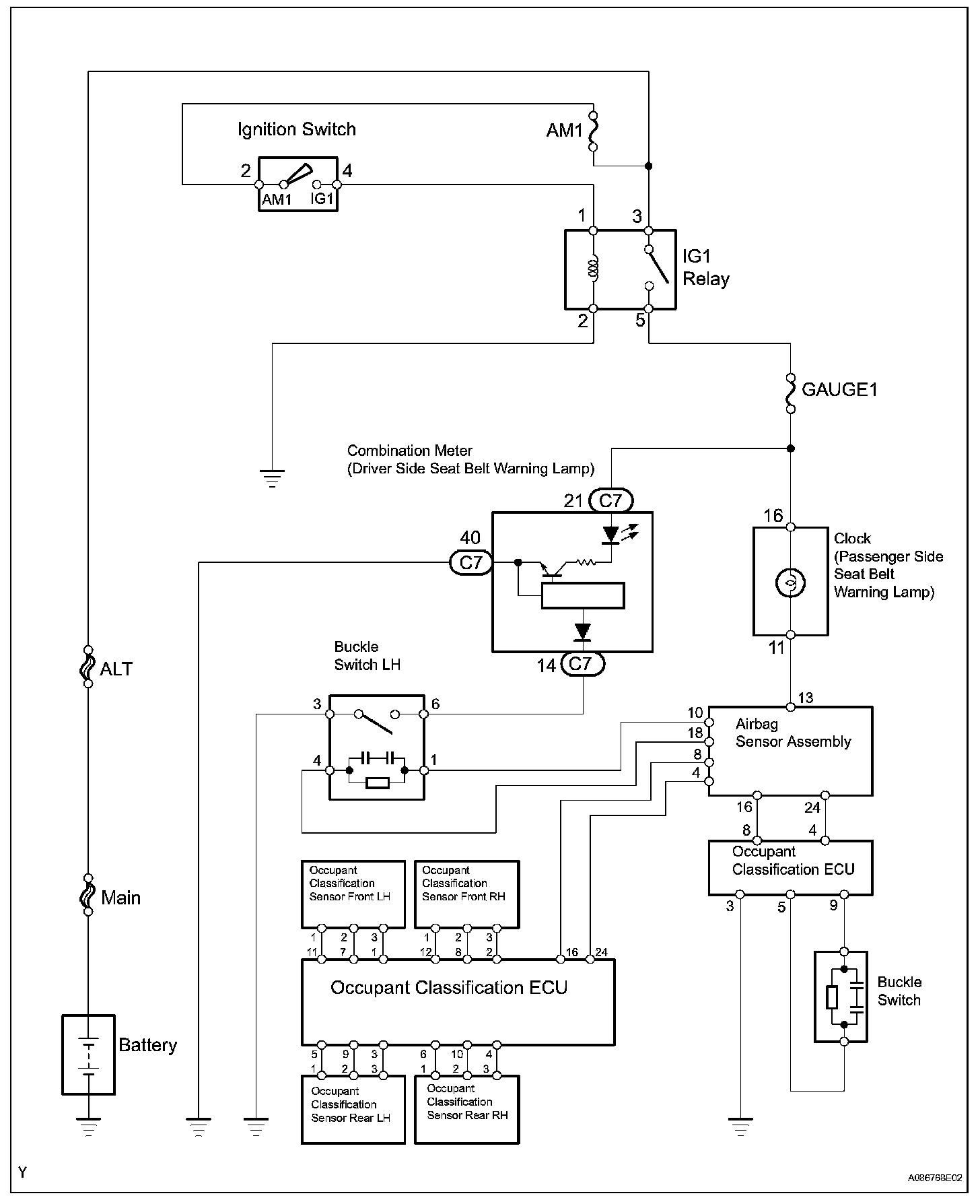

System Diagram:

SYSTEM DESCRIPTION

The seat belt warning system activates the continuous flashing of the seat belt warning light if the passenger or driver side seat belt is not fastened. When the ignition switch is in the ON position, the system determines if the seat belt is fastened by checking if the switch in the seat belt buckle is ON or OFF.
