Power Seat Switch: Locations

Ju - Se:



Meter/Gauge System:

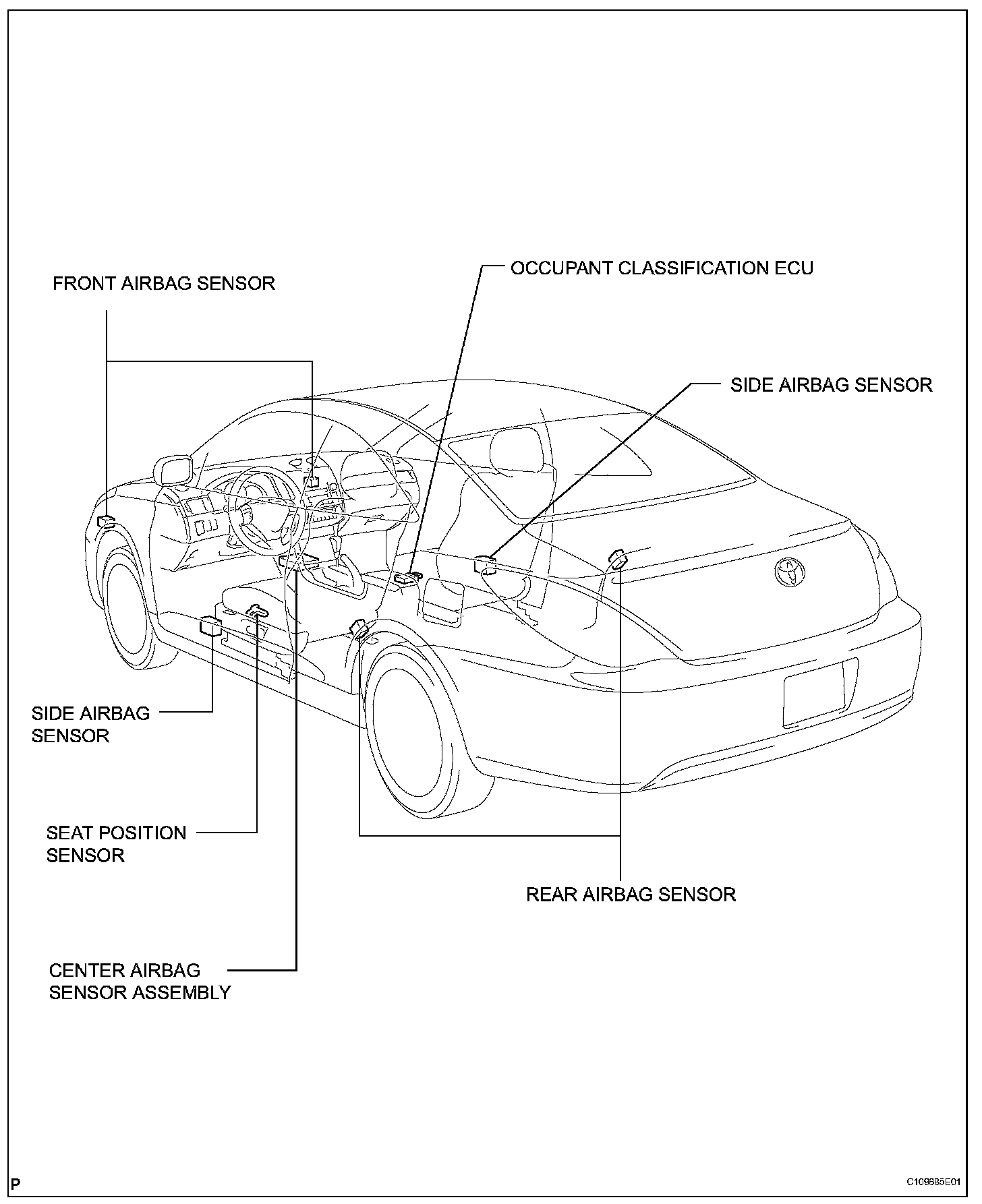

Airbag System:

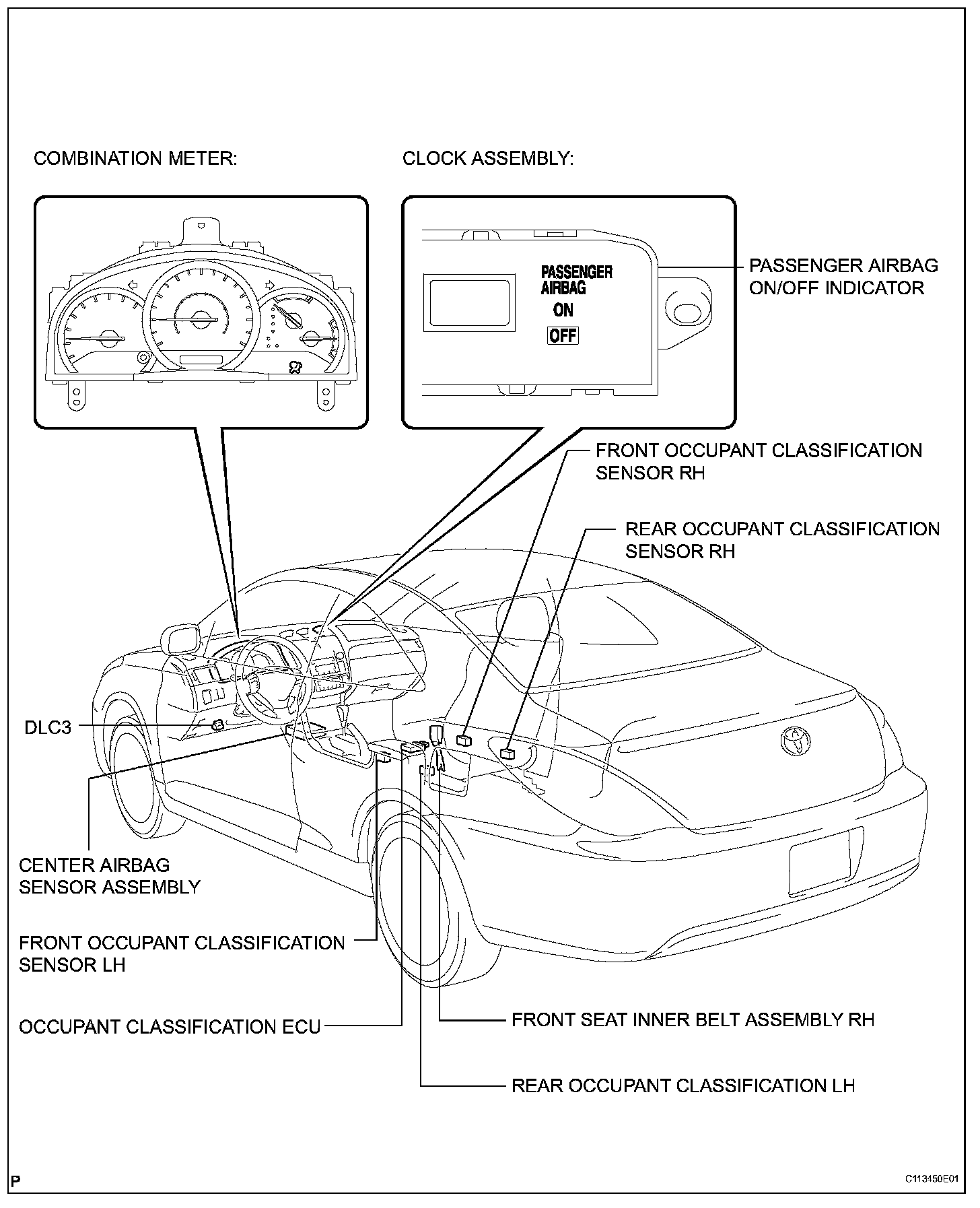

Occupant Classification System:

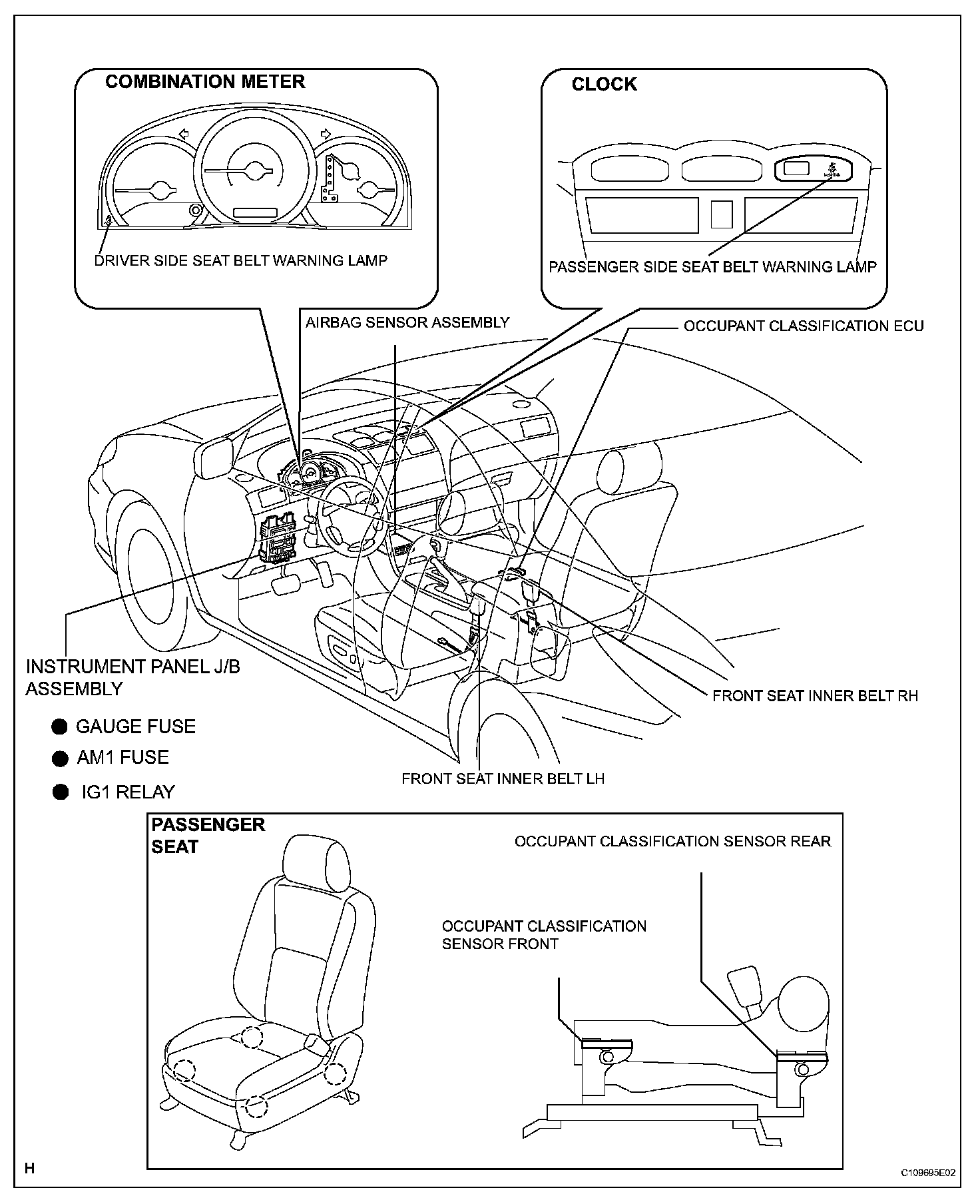

Seat Belt Warning System:
