A/T - U250E Solenoid Identification

TRANSMISSION & CLUTCH
TC007-05

Title:
U250E TRANSMISSION SOLENOID
IDENTIFICATION

Models:
'05 - '06 Camry & '06 Solara

August 1, 2005

Introduction

This service bulletin provides information on the proper identification of the 7 solenoids used in the U250E transmission.

Applicable Vehicles

^ 2005 - 2006 model year Camry vehicles equipped with 2AZ-FE engine.

^ 2006 model year Solara vehicles equipped with 2AZ-FE engine.

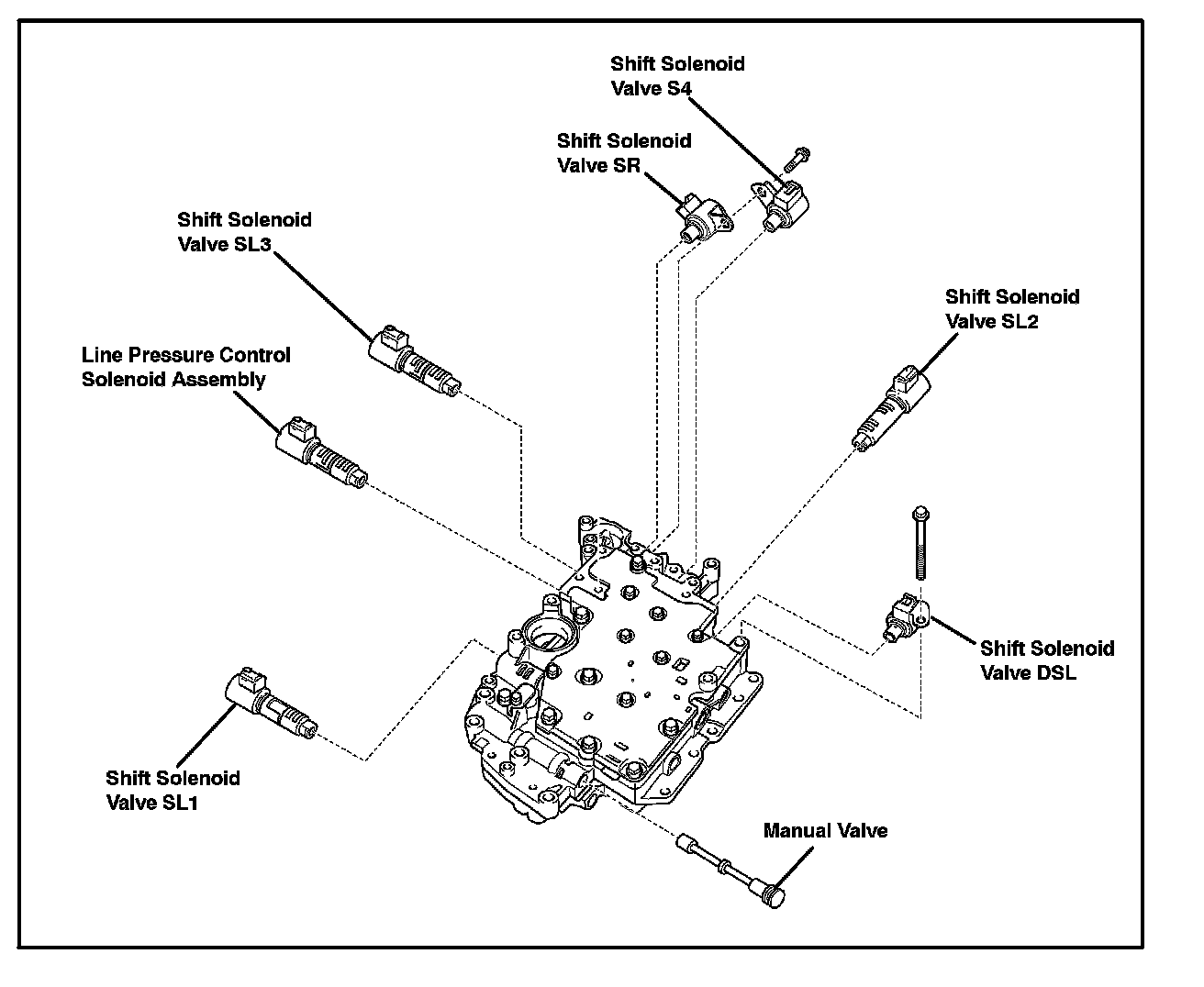

Transmission Solenoid Identification





Warranty Information

Parts Information

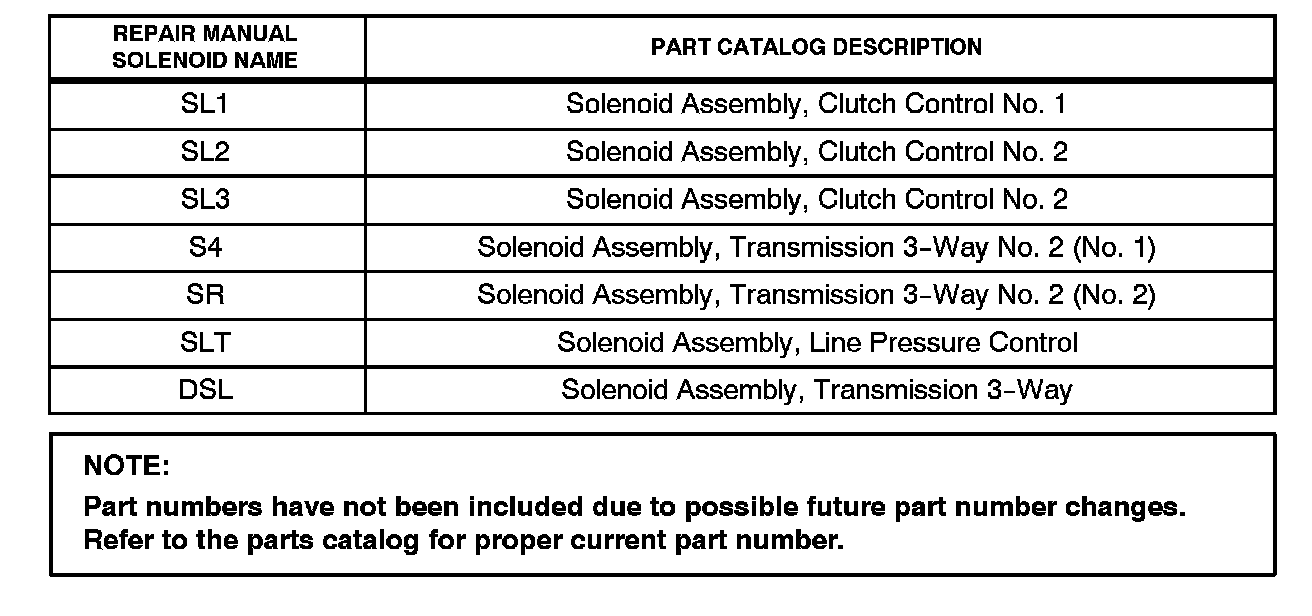

Provided above is a chart listing the Repair Manual name of each solenoid used in the U250E transmission as well as the part name description provided in the electronic parts catalog.
