Canada - A/T - U250E Solenoid Identification






Bulletin
TSB2290

Issue Date
2005-08-08

Market
Canada

Title
U250E TRANSMISSION SOLENOID IDENTIFICATION

Component
AUTOMATIC TRANSMISSION

Models
'05 - '06 Camry & '06 Solara

INTRODUCTION:
This service bulletin provides information on the proper identification of the 7 solenoids used in the U250E transmission.

APPLICABLE VEHICLES:
- 2005 - 2006 model year Camry vehicles equipped with 2AZ-FE engine.
- 2006 model year Solara vehicles equipped with 2AZ-FE engine.

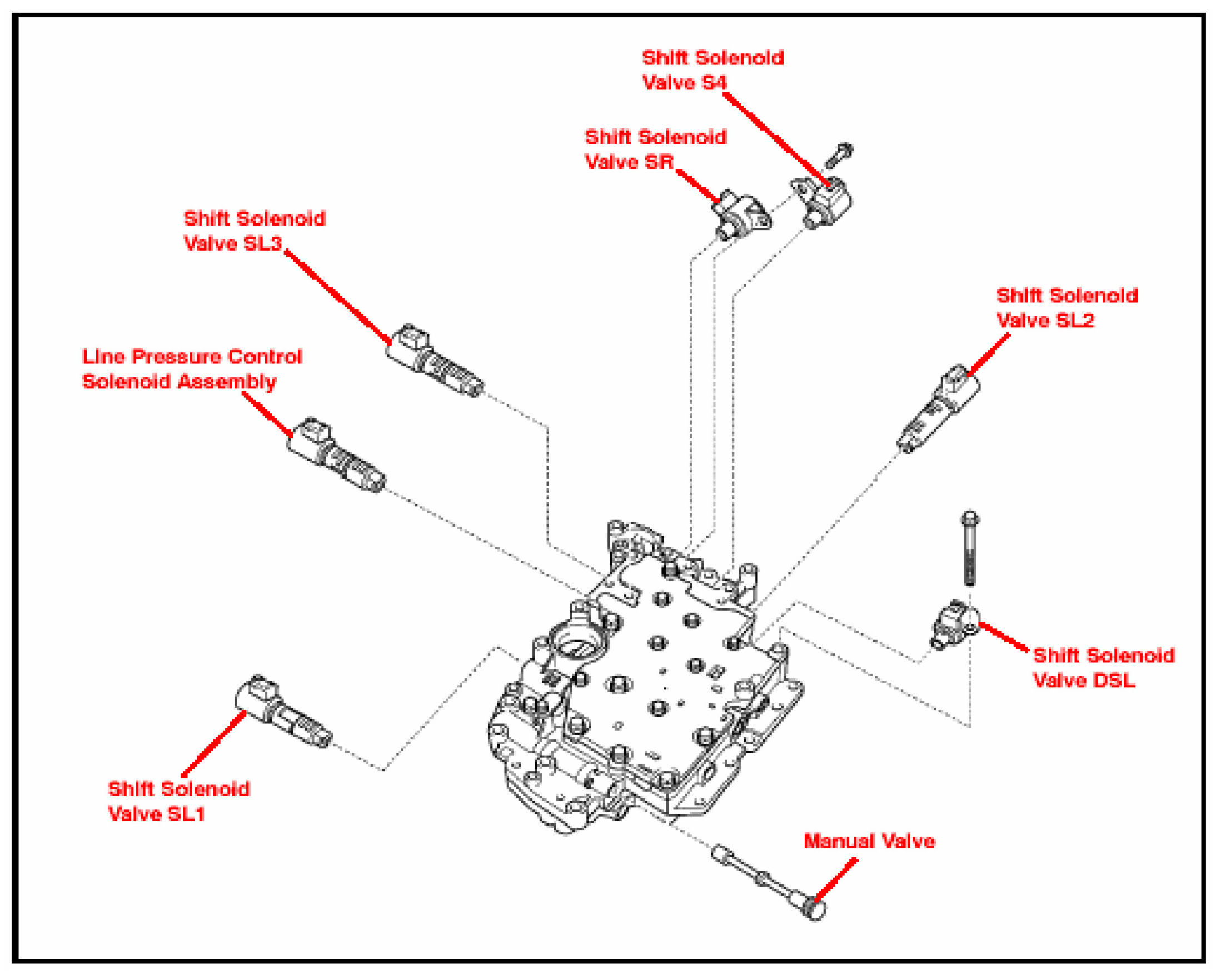

TRANSMISSION SOLENOID IDENTIFICATION:

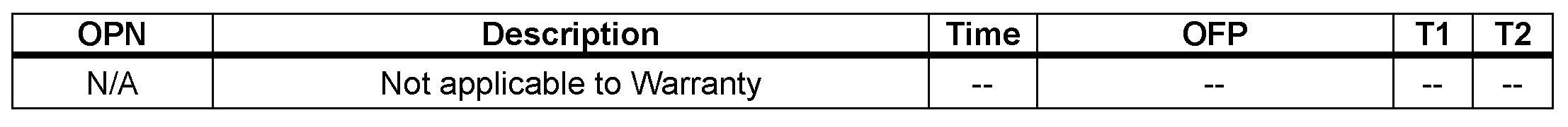

WARRANTY INFORMATION:

PARTS INFORMATION:

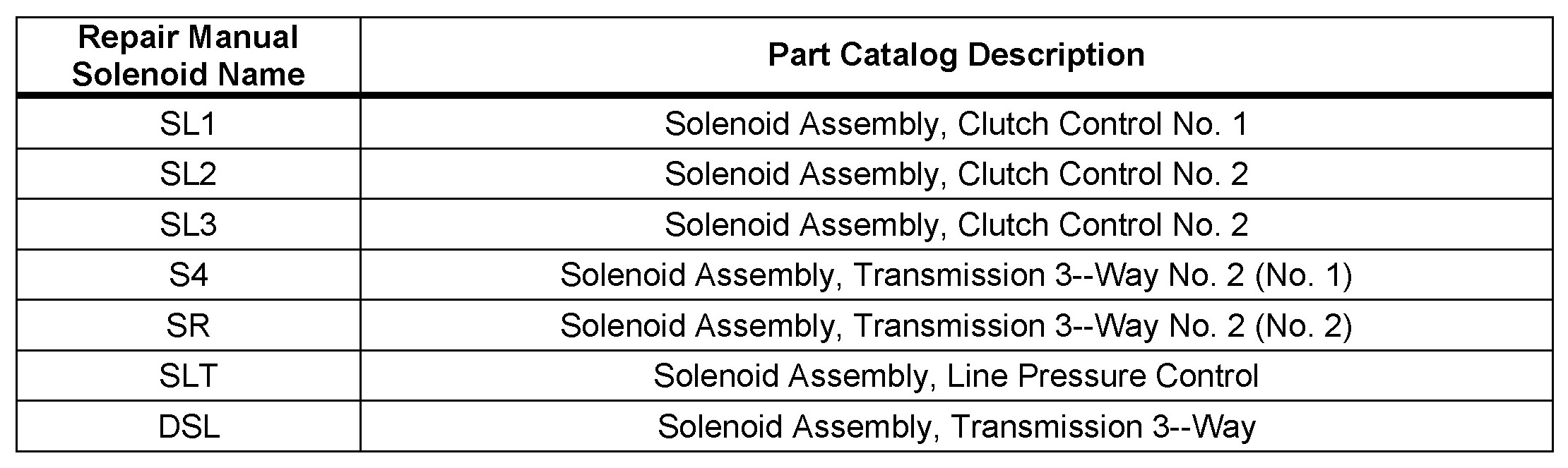

Provided a chart listing the repair manual name of each solenoid used in the U250E transmission as well as the part name description provided in the electronic parts catalog.

NOTE:
Part numbers have not been included due to possible future part number changes.
Refer to the parts catalog for proper current part number.


NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
