Restraints - SRS Lamp ON/DTC B1821/B1826 Supplement: Overview
ELECTRICALEL002-08
REVISED
Title:
REPAIR MANUAL SUPPLEMENT:
SRS LIGHT "ON" - DTC B1821/B1826 -
OPEN SIDE SQUIB CIRCUIT
Models:
'04 - '08 Solara
February 28, 2008
TSB REVISION NOTICE:
^ March 18, 2008: The Repair Manual references on page 3 have been updated. Figure 10 on page 6 has been updated.
Previous versions of this TSB should be discarded.
Introduction
For vehicles that exhibit Diagnostic Trouble Code (DTC) B1821 and/or B1826 a new service part has been made available for 2004 - 2008 model year Solara vehicles. Please refer to the following enhanced Repair Manual instructions for the proper installation procedure of the new service part.
Applicable Vehicles
^ 2004 - 2008 model year Solara vehicles.

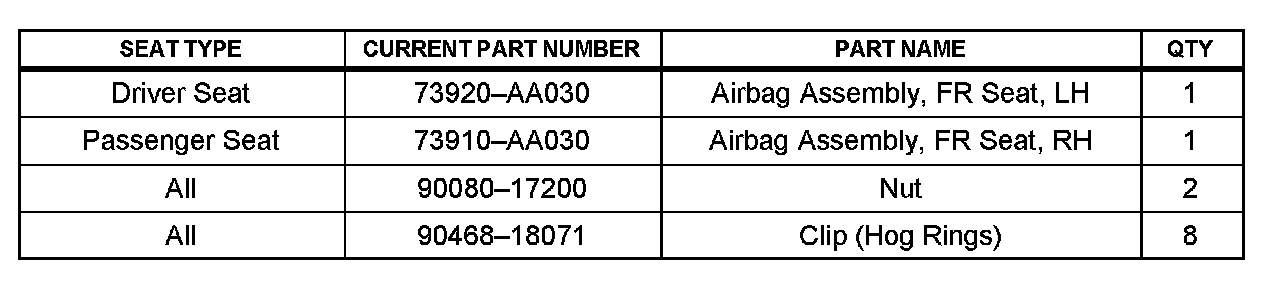

Parts Information
Warranty Information
Applicable Warranty*
This repair is covered under the Toyota Restraint Systems Warranty. This warranty is in effect for 60 months or 60,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customers specific complaint.

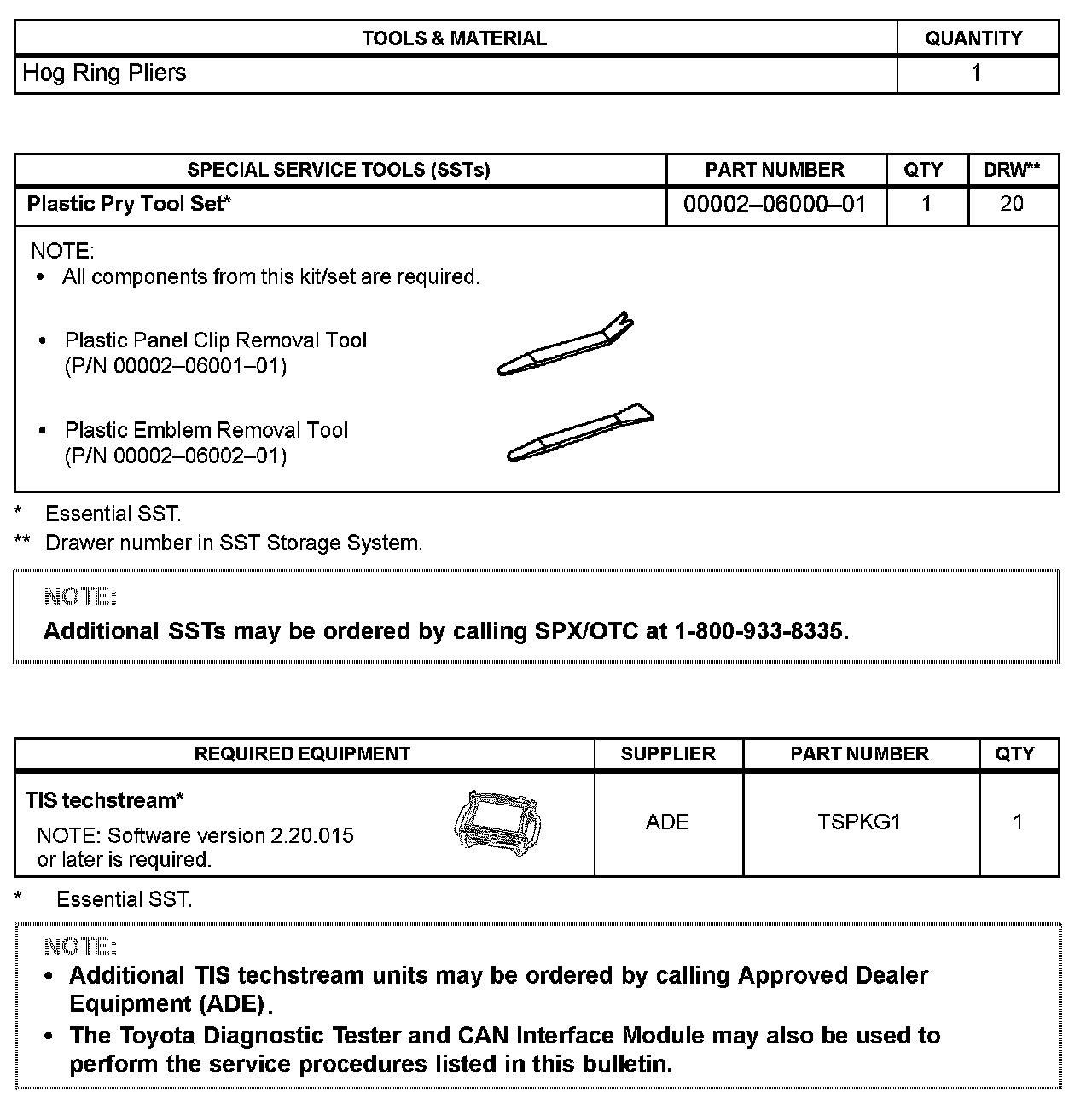

Required Tools & Equipment
Airbag Disposal:
Please refer to TSB No. SSOO4-07 "SRS Component Disposal as Hazardous Material Treatment" for proper disposal method of the side airbag assembly.
