Heated Glass Element: Description and Operation

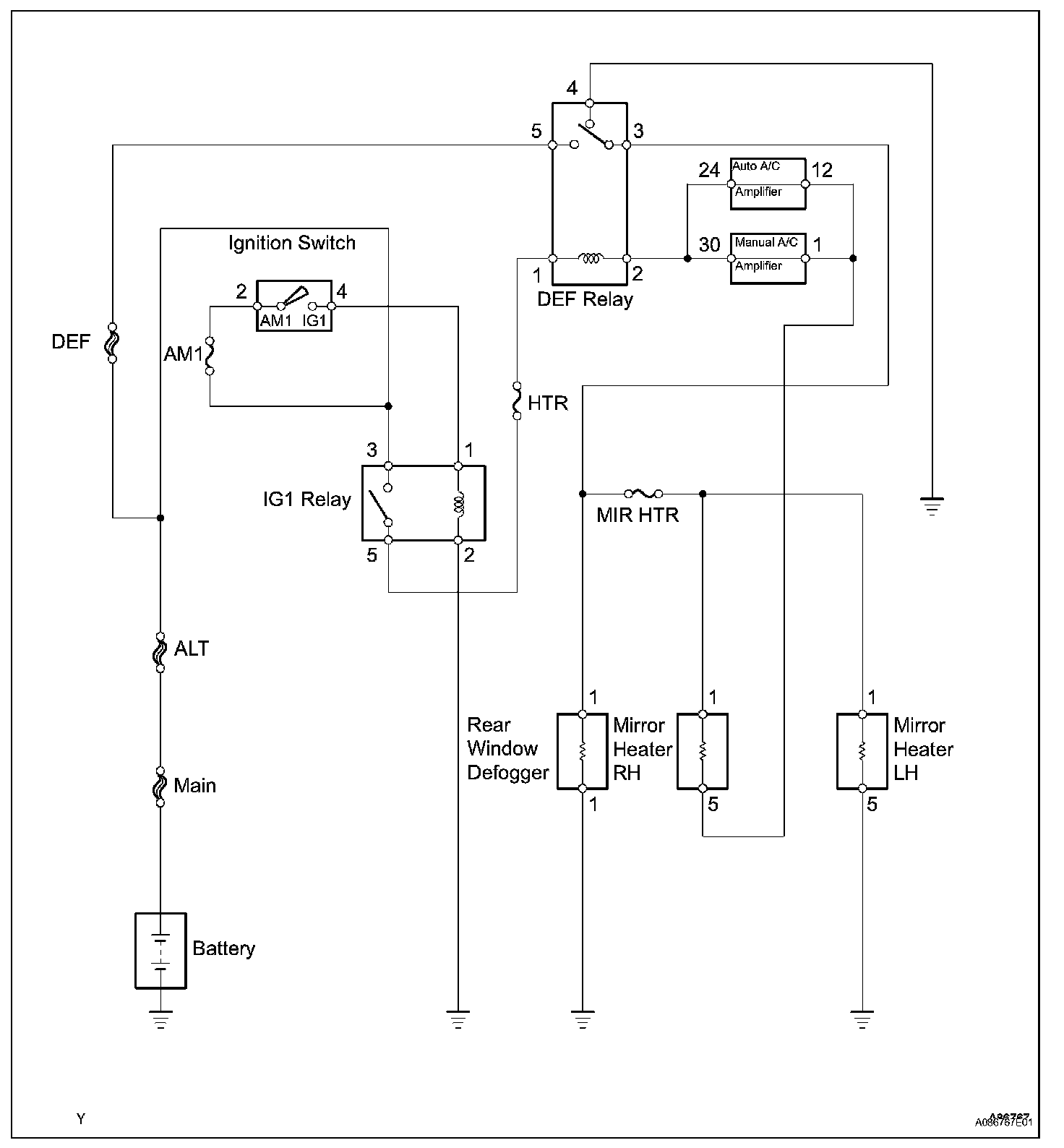

System Diagram:

SYSTEM DESCRIPTION

The defogger system uses the heater wire in the rear windshield glass to defog the rear windshield glass. This circuit of this system, which is shared with the outside with the outside rear view mirror heater system, operates in the same manner.
