Wiper Switch: Testing and Inspection
WIPER SWITCHINSPECTION
1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY

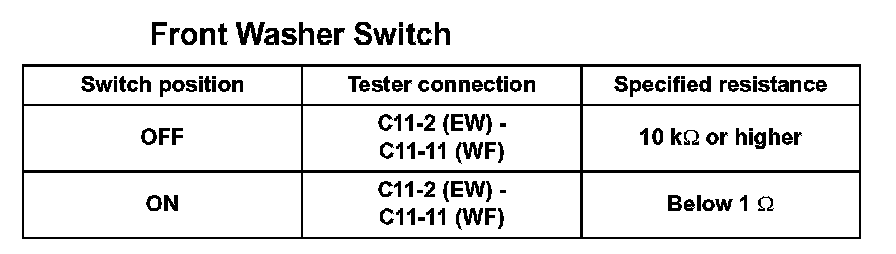

a. Measure the resistance according to the value(s) in the table.
Standard resistance:
b. Intermittent Operation Check
1. Connect the voltmeter (+) terminal to terminal C11-7 (+1) of the connector and the voltmeter (-) terminal to terminal C11-2 (EW).
2. Connect the positive battery (+) lead to terminal C11-17 (+B) of the connector and the negative battery (-) lead to terminals C11-2 (EW) and C11-16 (+S).
3. Turn the wiper switch to the INT position.
4. Connect the positive battery (+) lead to terminal C11-16 (+S) of the connector for 5 seconds.
5. Connect the negative battery (-) lead to terminal C11-16 (+S) of the connector. Operate the intermittent wiper relay and measure the voltage between terminals C11-7 (+1) and C11-2 (EW).
c. Front Washer Operation Check
1. Turn the wiper switch to the OFF position.
2. Connect the positive battery (+) lead to terminal C11-17 (+B) of the connector, and the negative battery (-) to terminals C11-16 (+S) and C11-2 (EW).
3. Connect the voltmeter (+) terminal to terminal C11-7 (+1) of the connector and the voltmeter (-) terminal to terminal C11-2 (EW). Measure the voltage between terminals C11-7 (+1) and C11-2 (EW) when turning the washer switch ON and OFF respectively.
Standard: Refer to the illustration.
