B1617

DTC B1617/84 Lost Communication with Front Airbag Sensor LH

DESCRIPTION

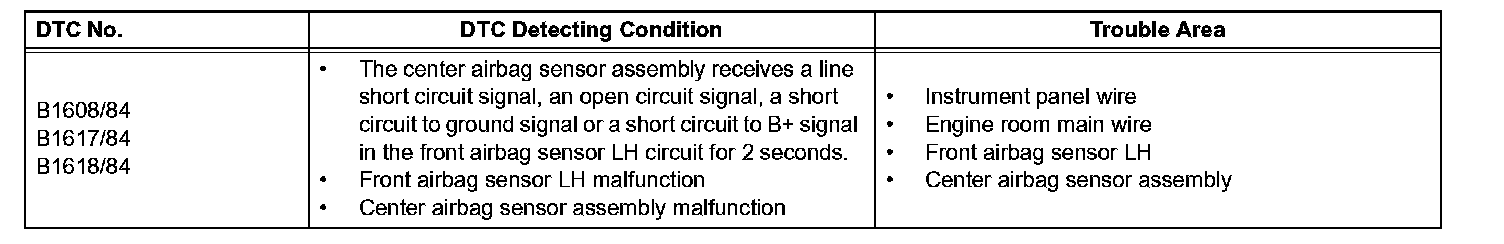

DTC Detecting Condition:

The front airbag sensor LH circuit consists of the center airbag sensor assembly and front airbag sensor LH.

The front airbag sensor LH detects impacts to the vehicle and sends signals to the center airbag sensor assembly to determine if the airbag should be deployed.

DTC B1608/84, B1617/84, or B1618/84 is recorded when a malfunction is detected in the front airbag sensor RH circuit.

Wiring Diagram:

Step 1-2:

Step 3-4:

Step 5-6:

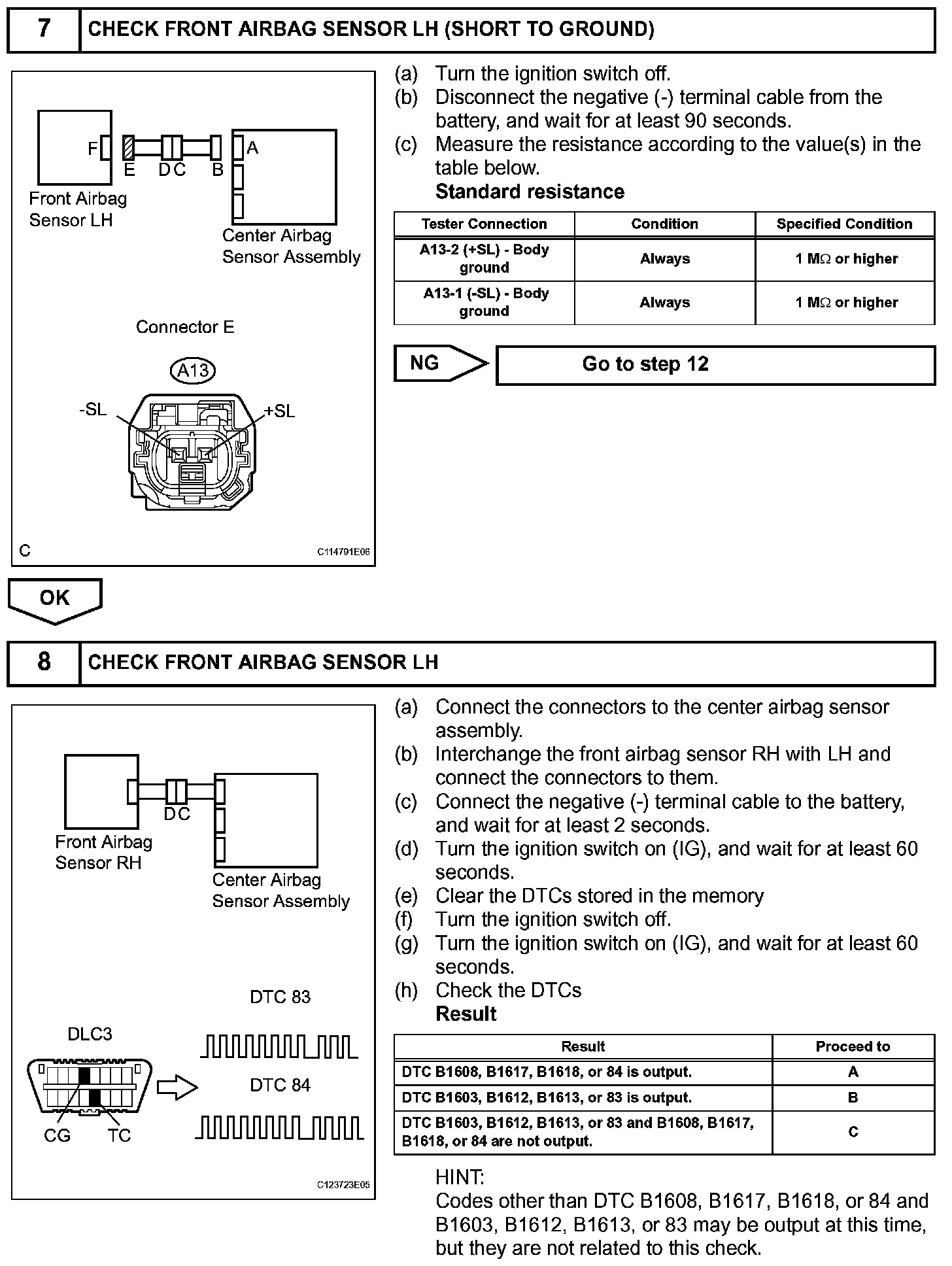

Step 7-8:

Step 8(continued)-9:

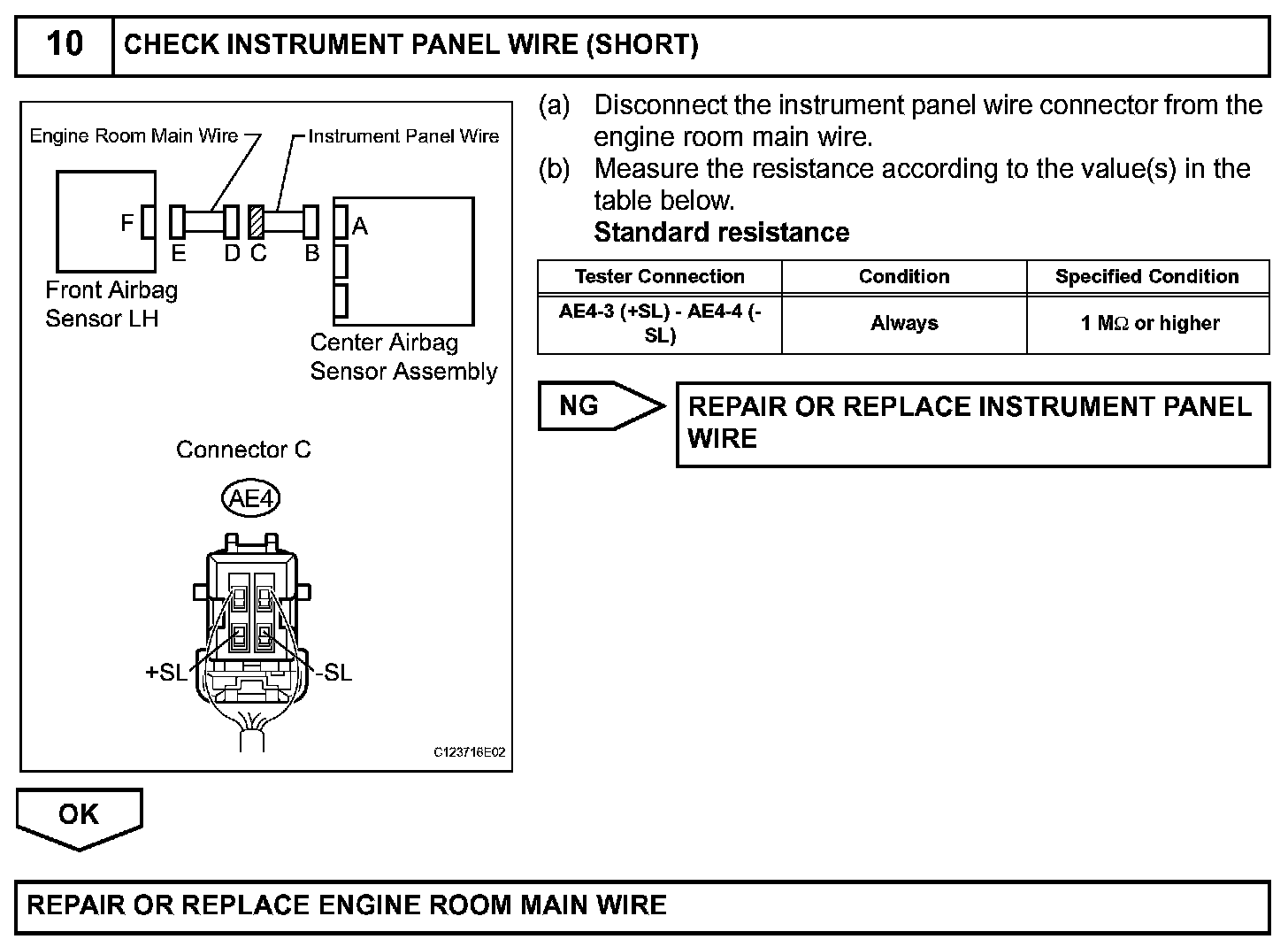

Step 10:

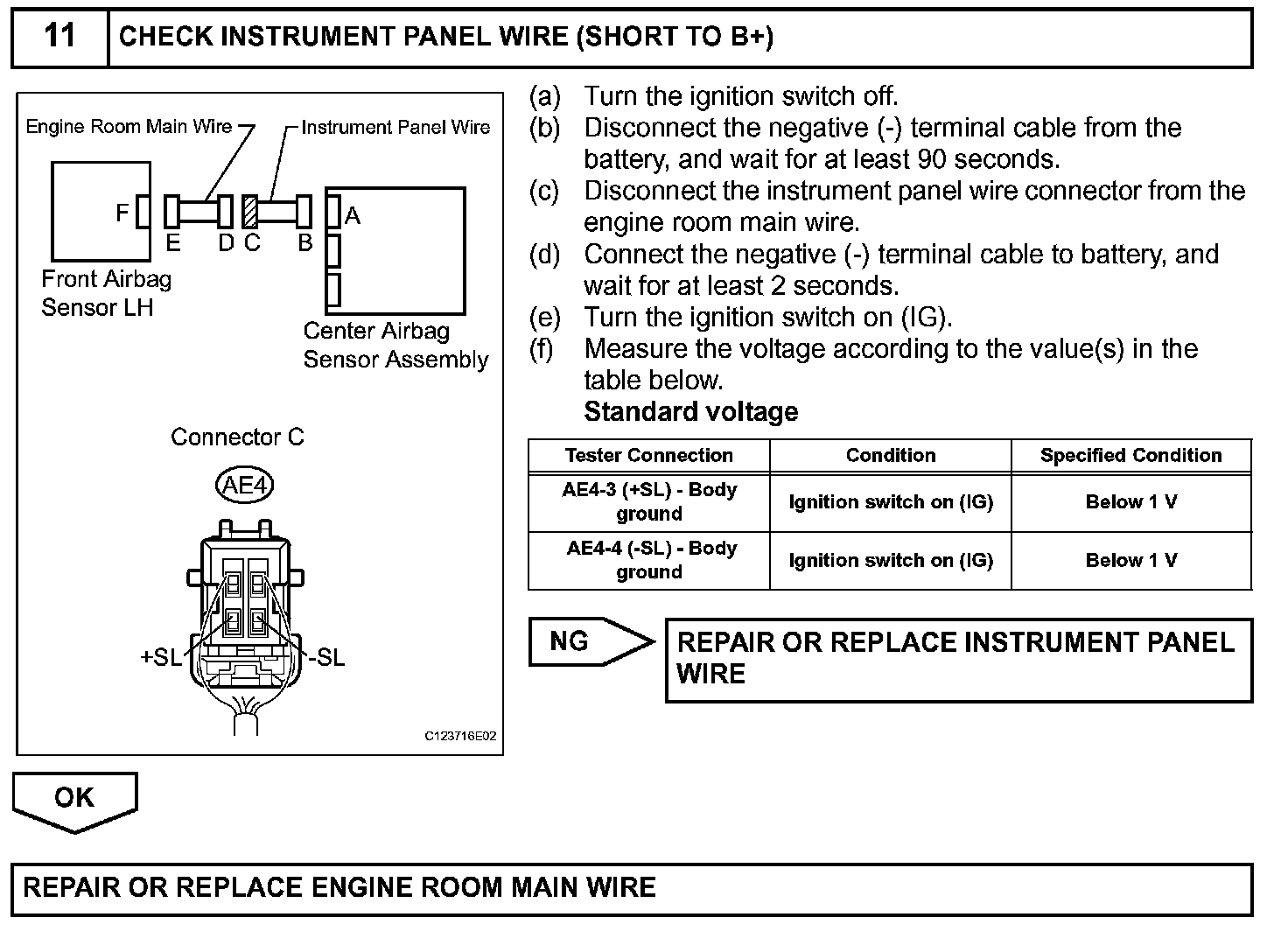

Step 11:

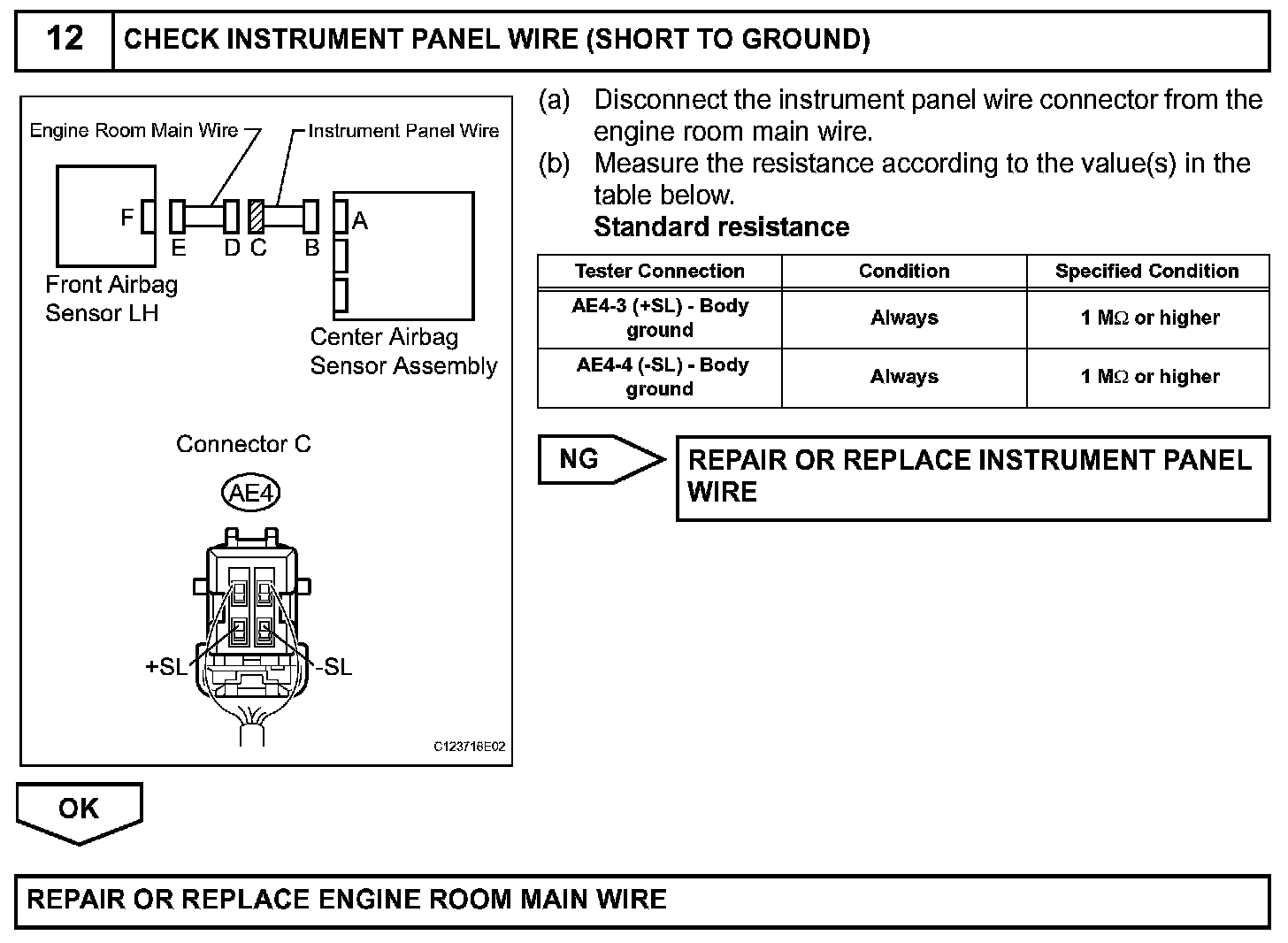

Step 12:

INSPECTION PROCEDURE
