B1623
DTC B1623/81 Driver Side - Side Airbag Sensor Assembly Initialization IncompleteDESCRIPTION
DTC Detecting Condition:
The circuit for the side collision sensor LH (to determine deployment of the front seat side airbag assembly LH and curtain shield airbag assembly LH) is composed of the center airbag sensor assembly, side airbag sensor LH, and rear airbag sensor LH.
The side airbag sensor LH and rear airbag sensor LH detect impacts to the vehicle and send signals to the center airbag sensor assembly to determine if the airbag should be deployed.

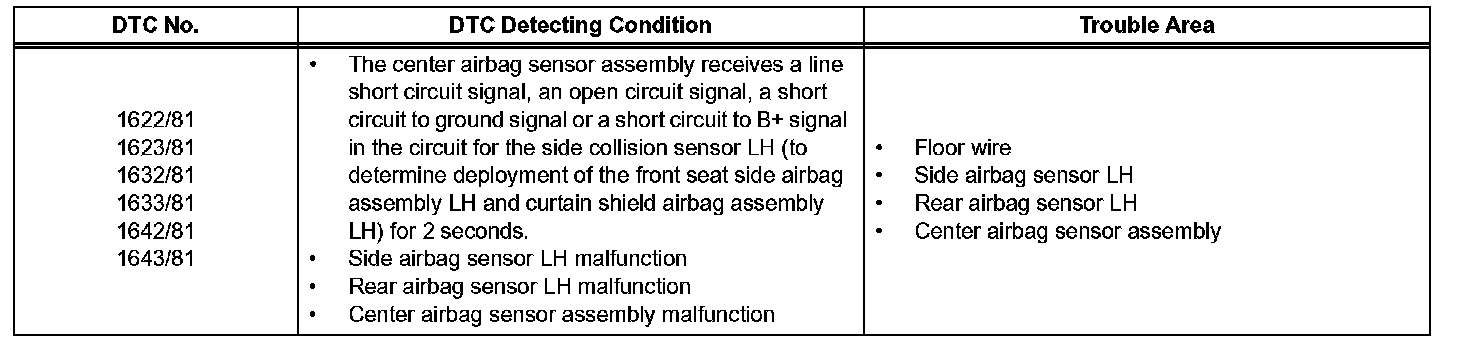

DTC B1622/81, B1623/81, B1632/81, B1633/81, B1642/81, or B1643/81 is recorded when a malfunction is detected in the circuit for the side collision sensor LH (to determine deployment of the front seat side airbag assembly LH and curtain shield airbag assembly LH).
Wiring Diagram:
Step 1-2:
Step 2(continued)-4:
Step 5-6:
Step 7-8:
Step 9-11:
Step 11(continued)-13:
Step 14-15:
Step 16-17:
Step 18-19:
Step 19(continued)-21:
Step 22-23:

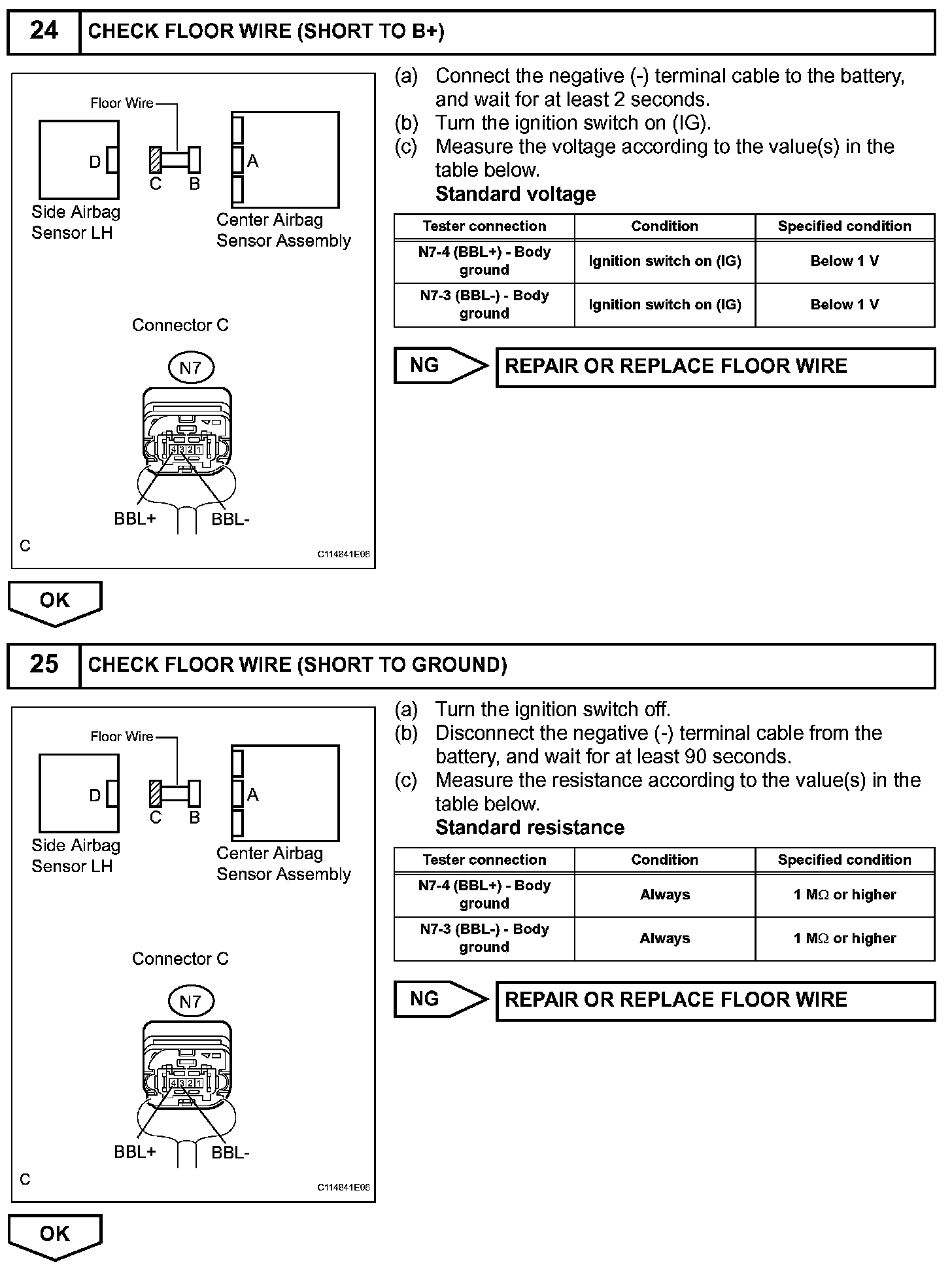

Step 24-25:
Step 26-28:
Step 28(continued):

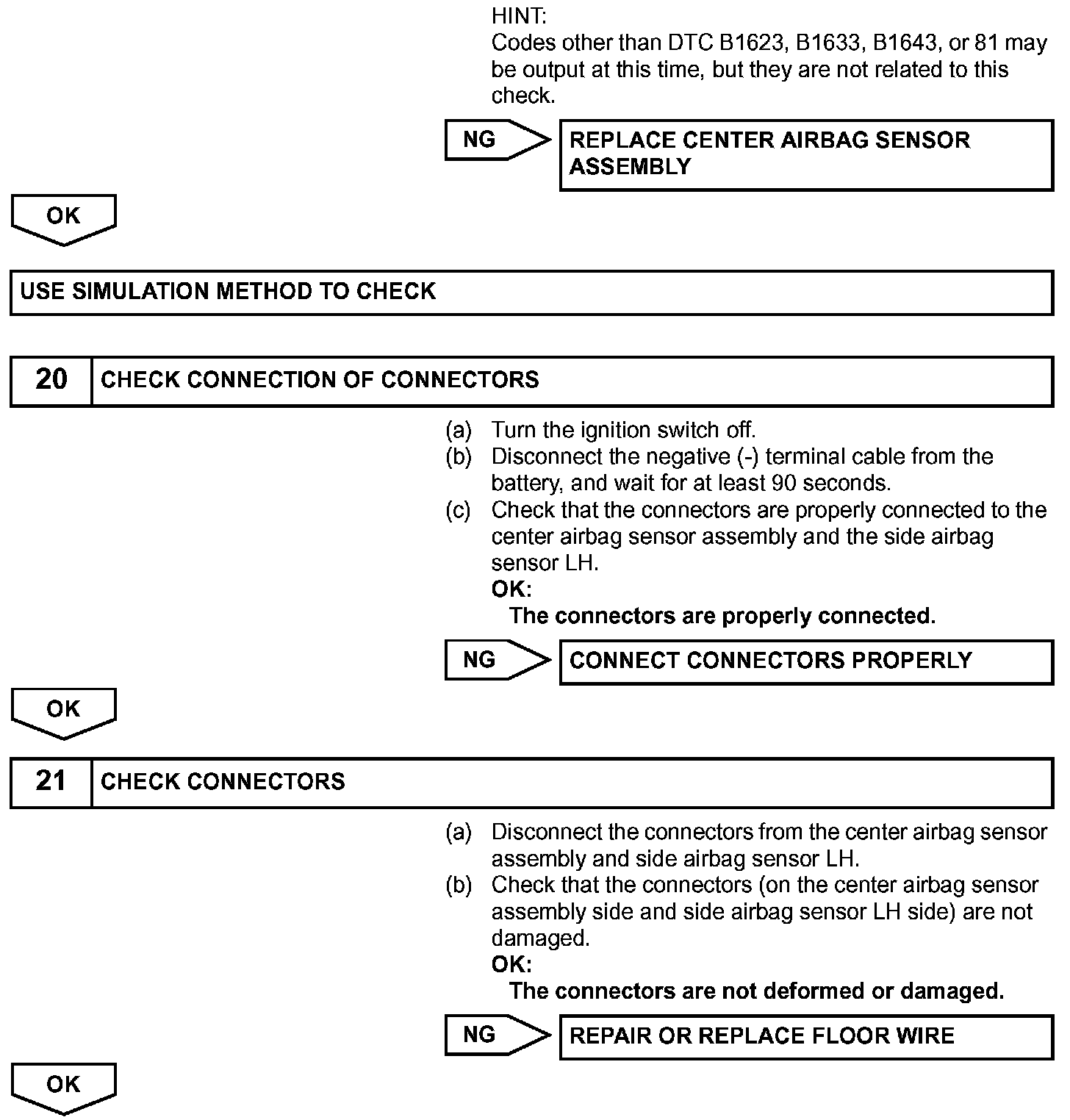

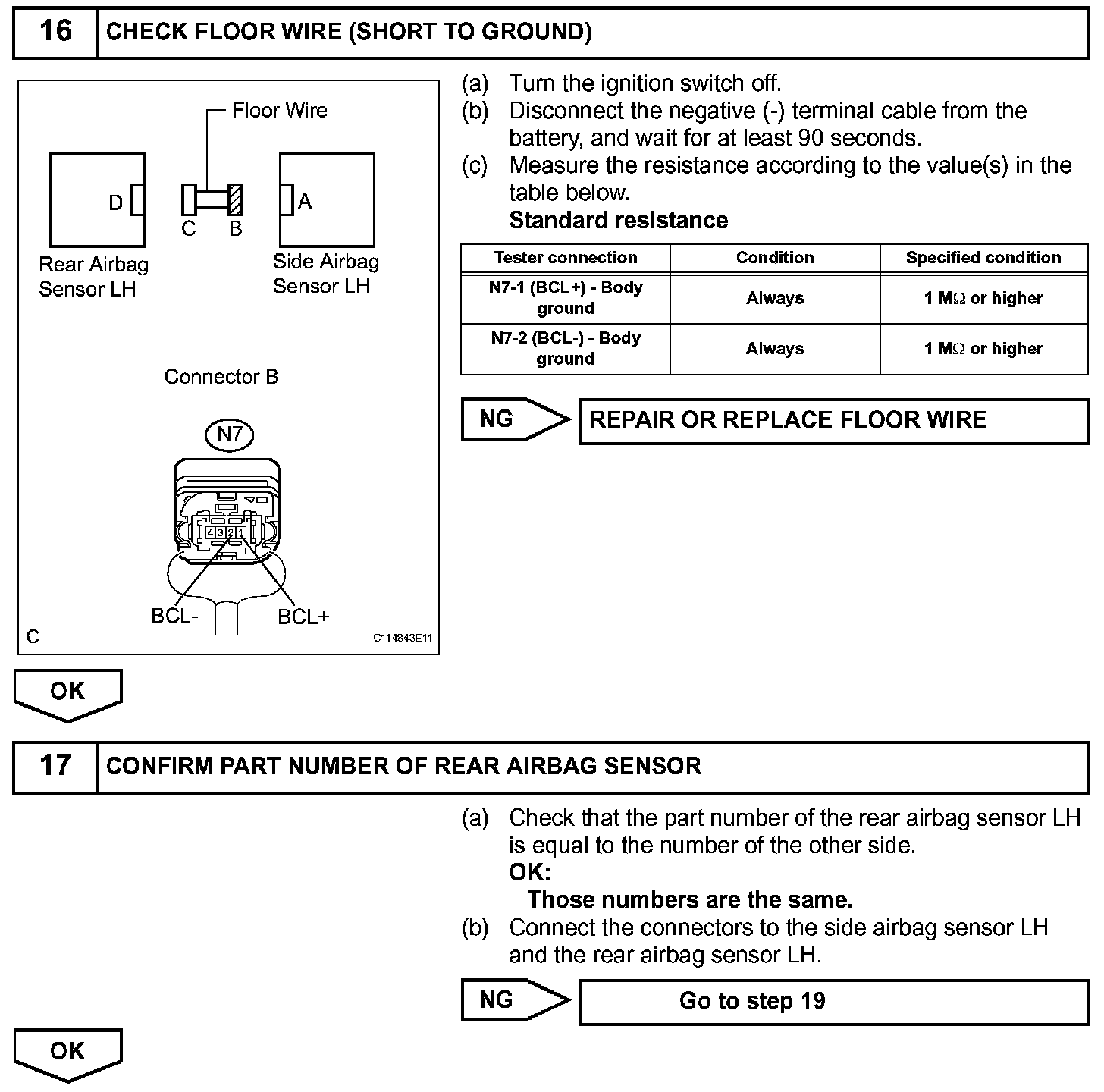

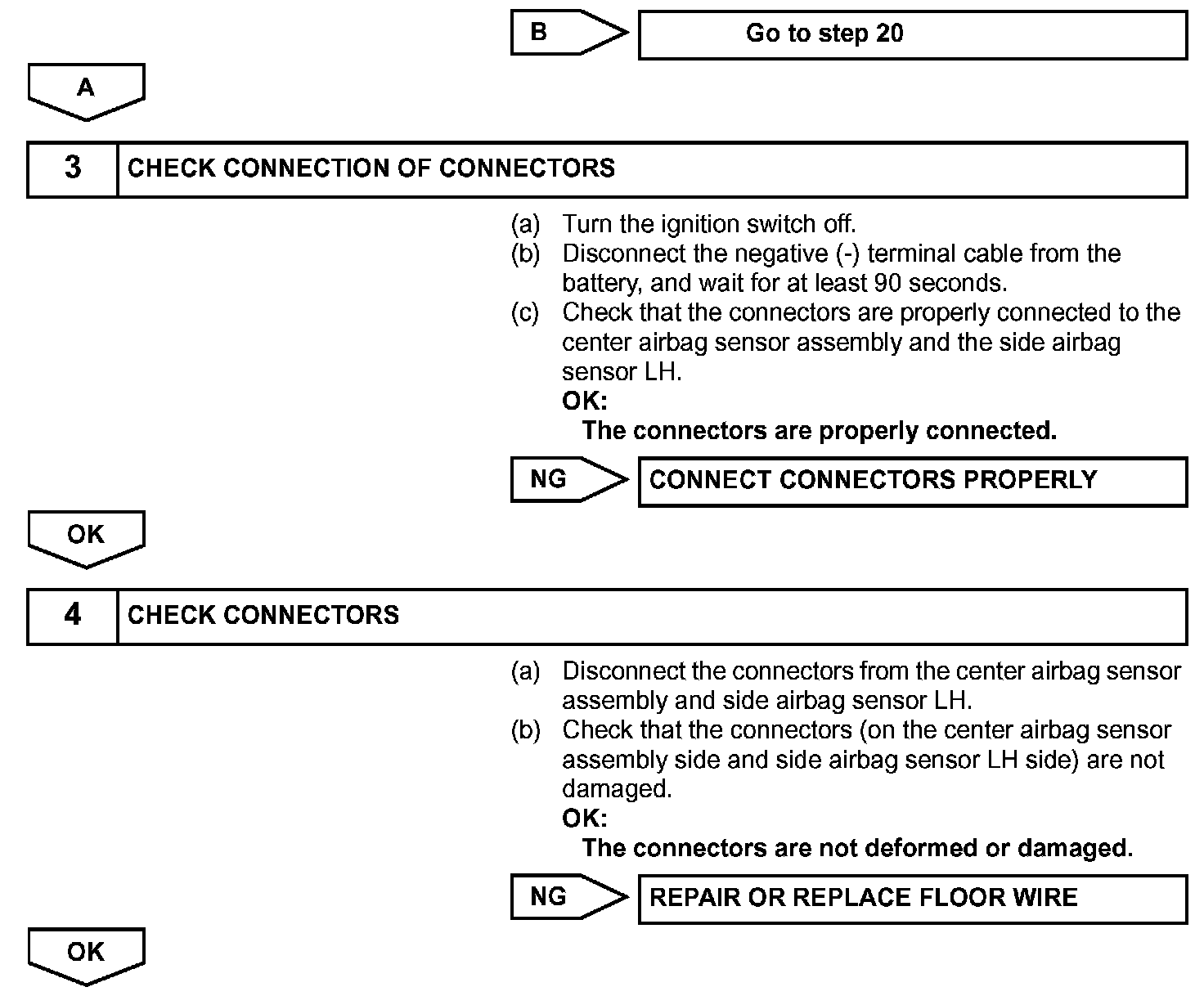

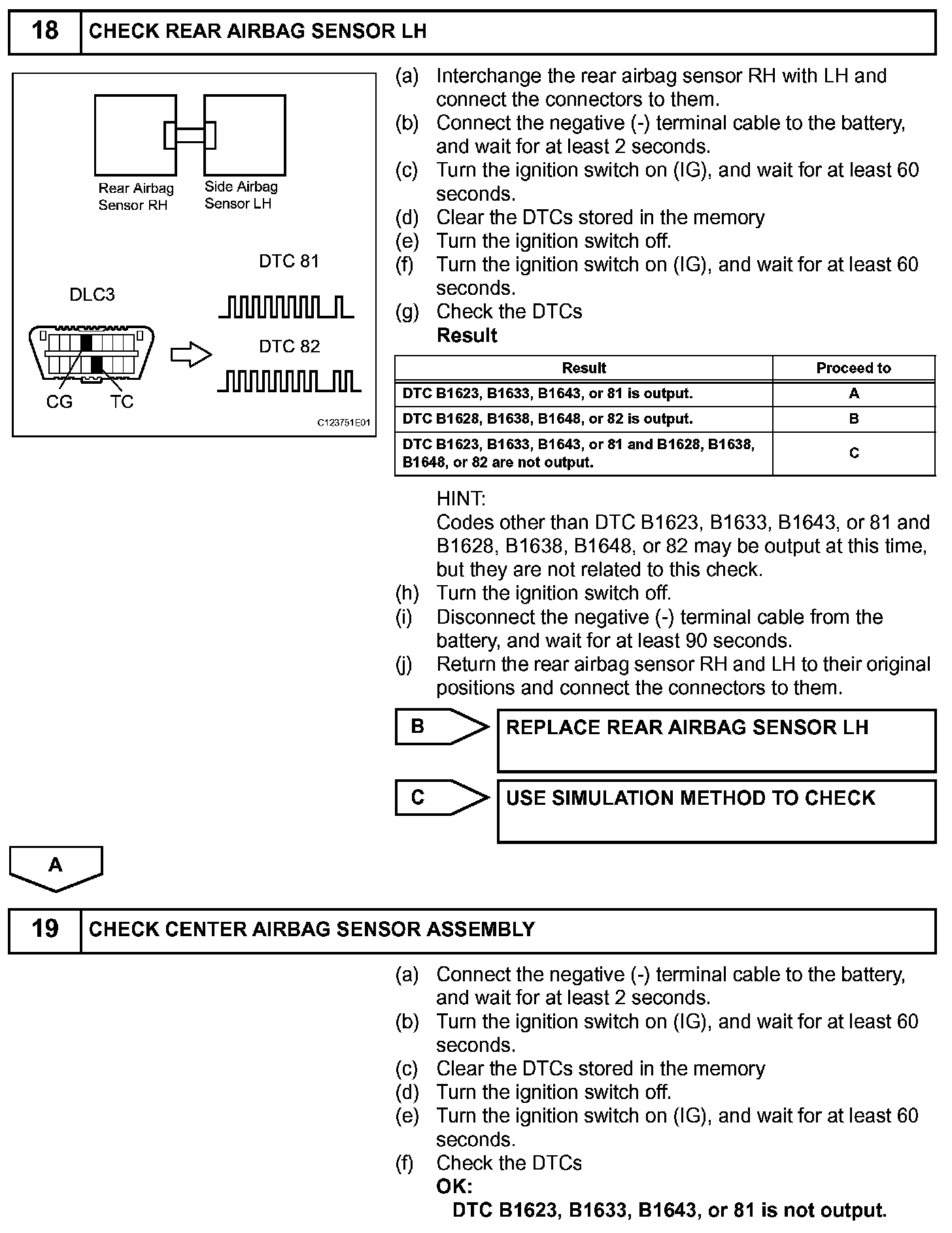

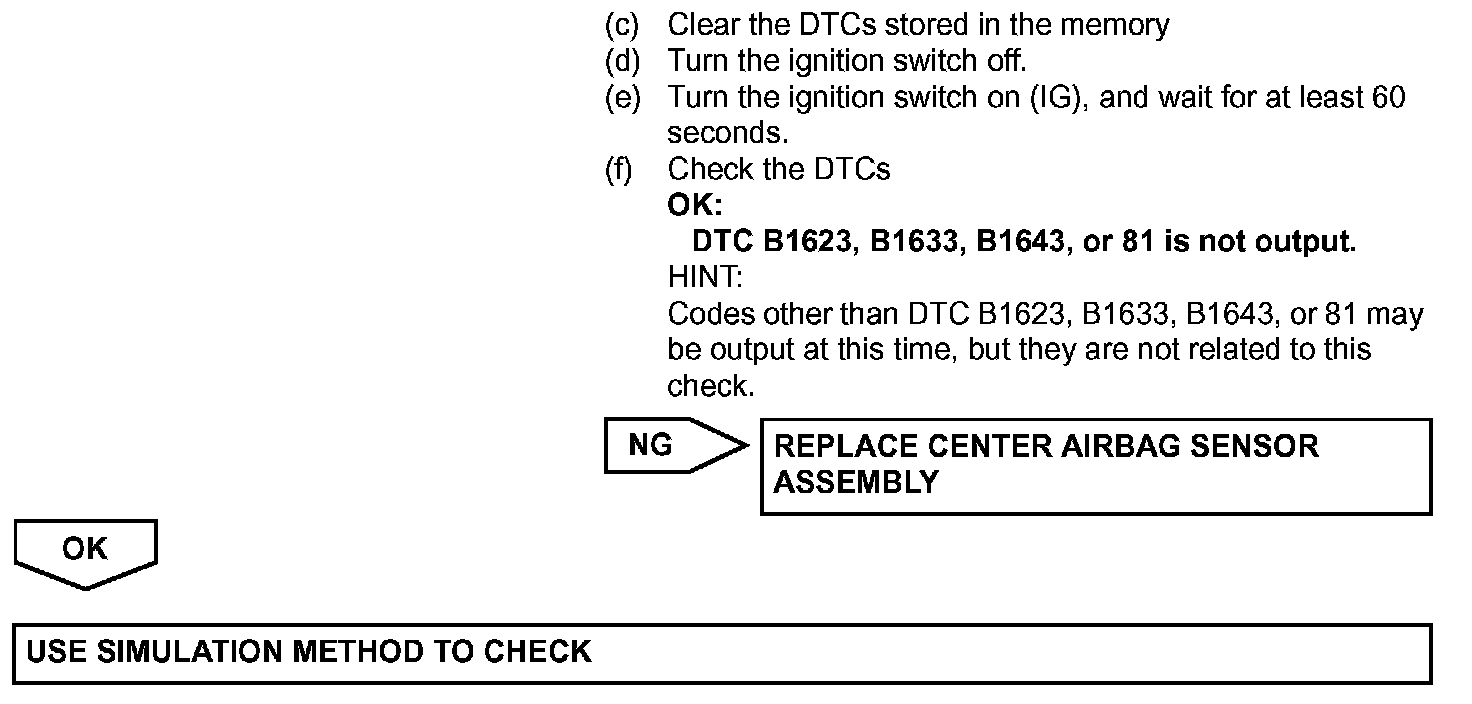

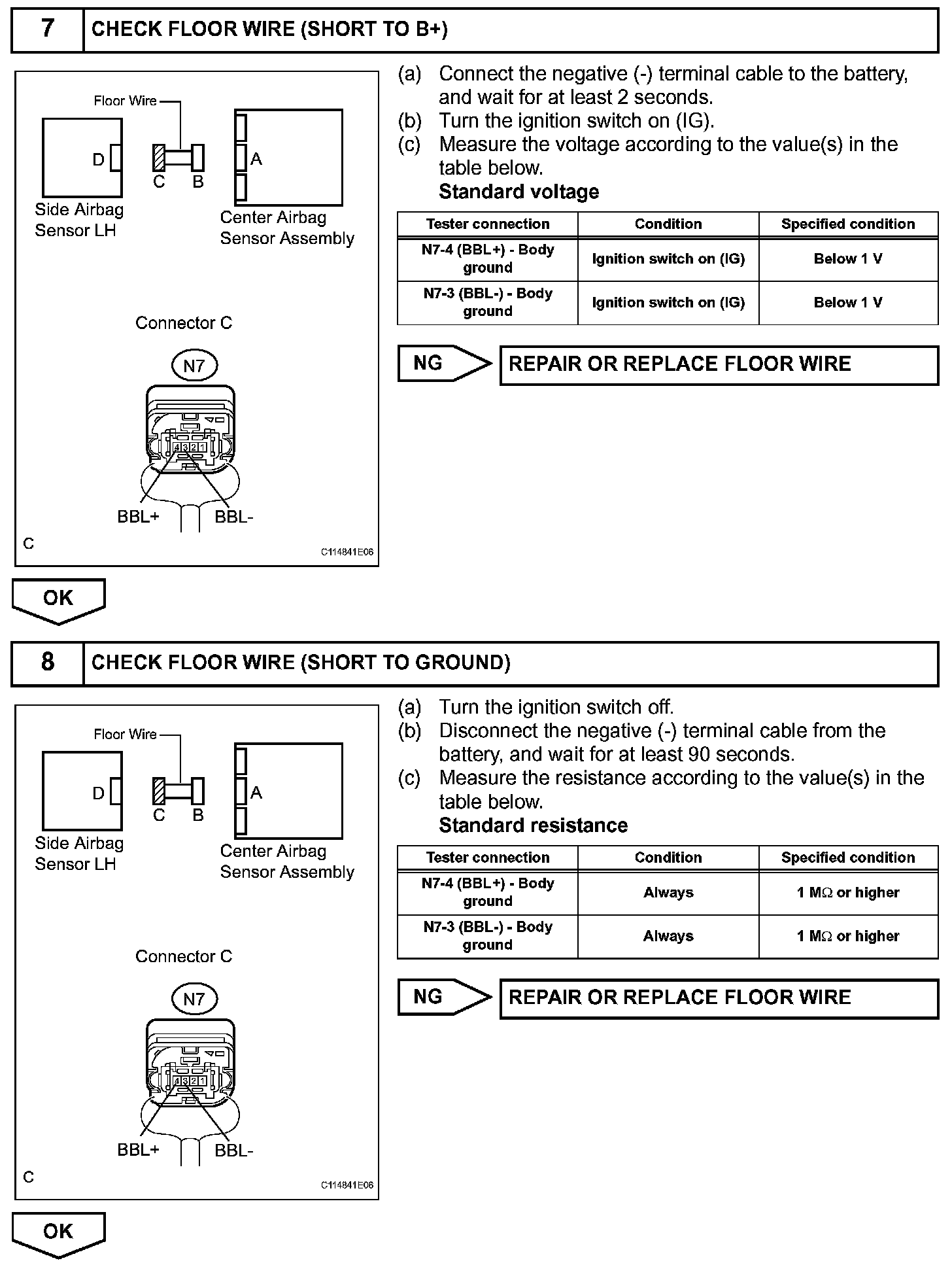

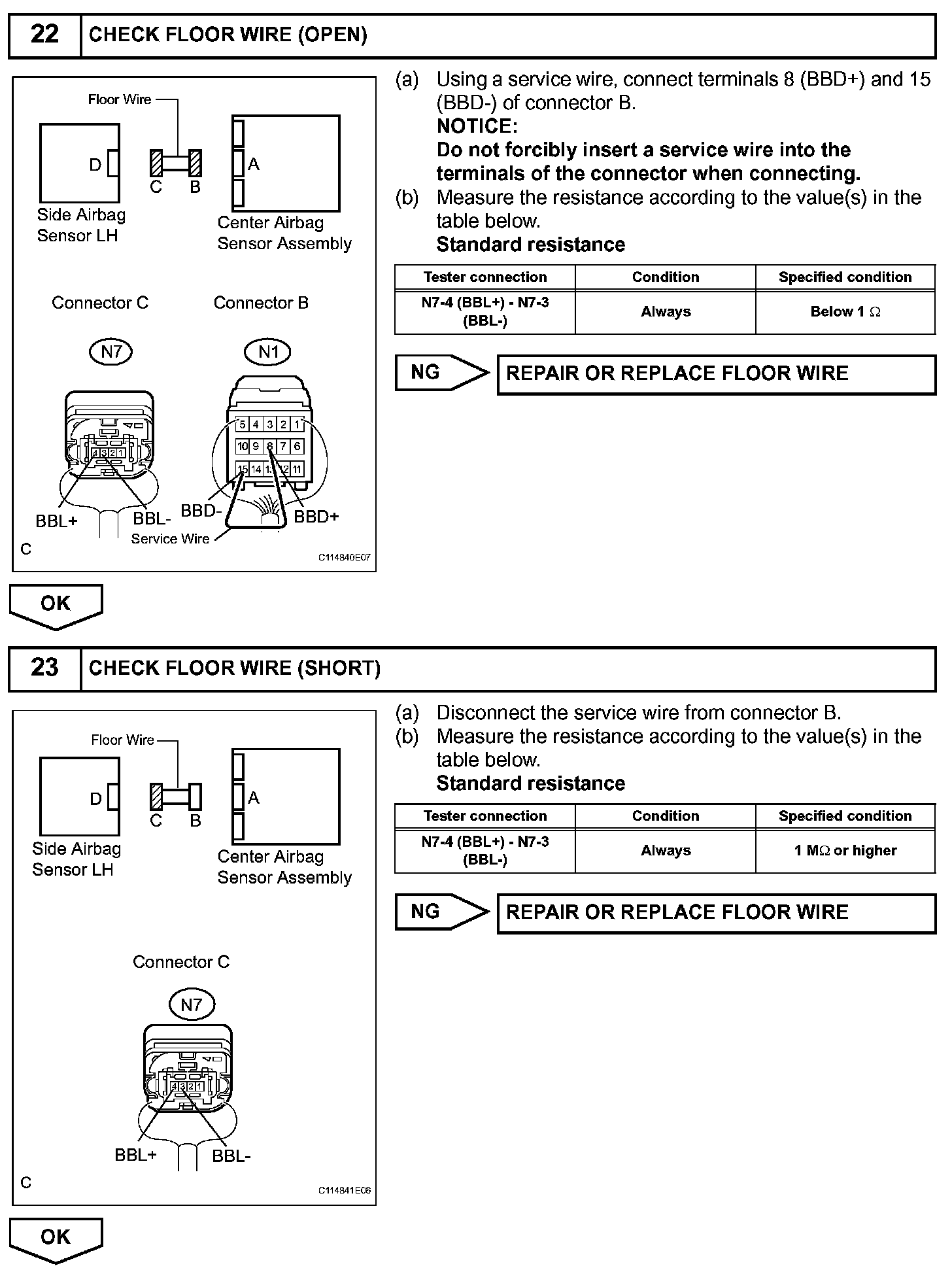

INSPECTION PROCEDURE
