C2177

DTC C2177/77 Initialization not Completed

DESCRIPTION
Initialization is necessary after replacing any of the ECU, tires with different tire pressure, or tire pressure warning valve and transmitter, after rotating the tires or when a new vehicle is delivered.




WIRING DIAGRAM:

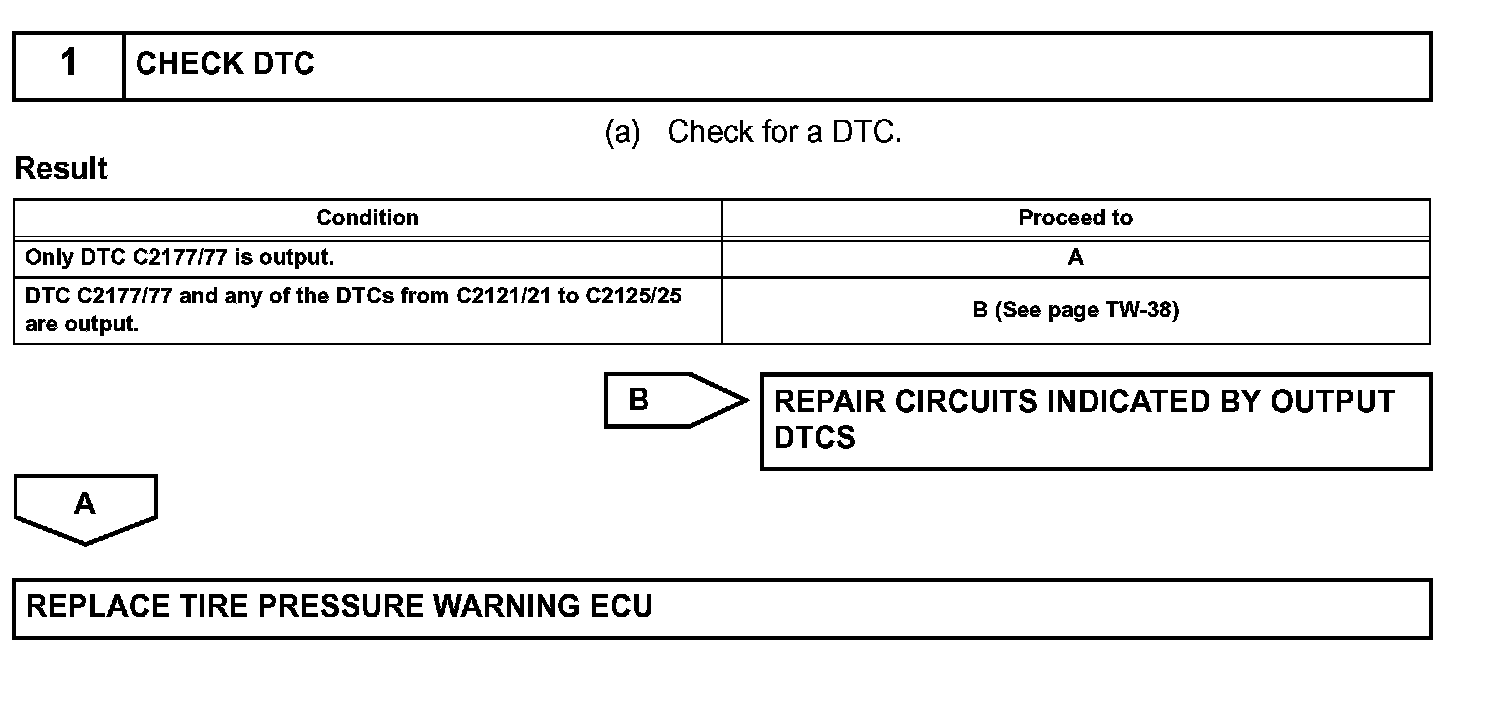

INSPECTION PROCEDURE

Step 1:
