ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

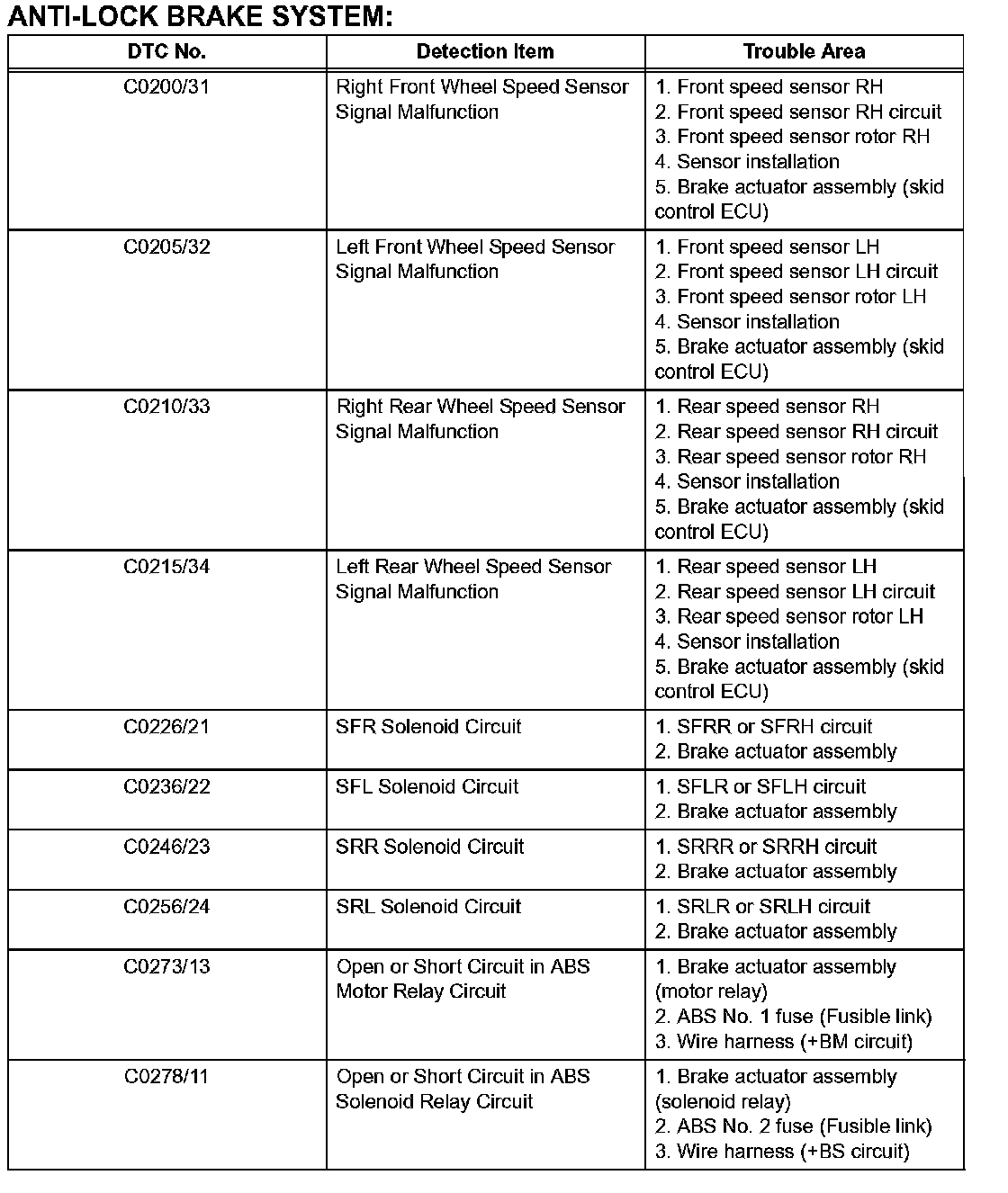

C0200/31-C0278/11:

C1237/37-U0073/94:

NOTE: Turn the ignition switch off before removing parts.

HINT:
- If no abnormality is found when inspecting parts, inspect the skid control ECU and ground points for poor contact.
- If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective "DTC No." in the DTC chart.
- When 2 or more DTCs are detected, perform circuit inspection one by one until the problem is identified.
