Occupant Classification System

DIAGNOSTIC TROUBLE CODE CHART

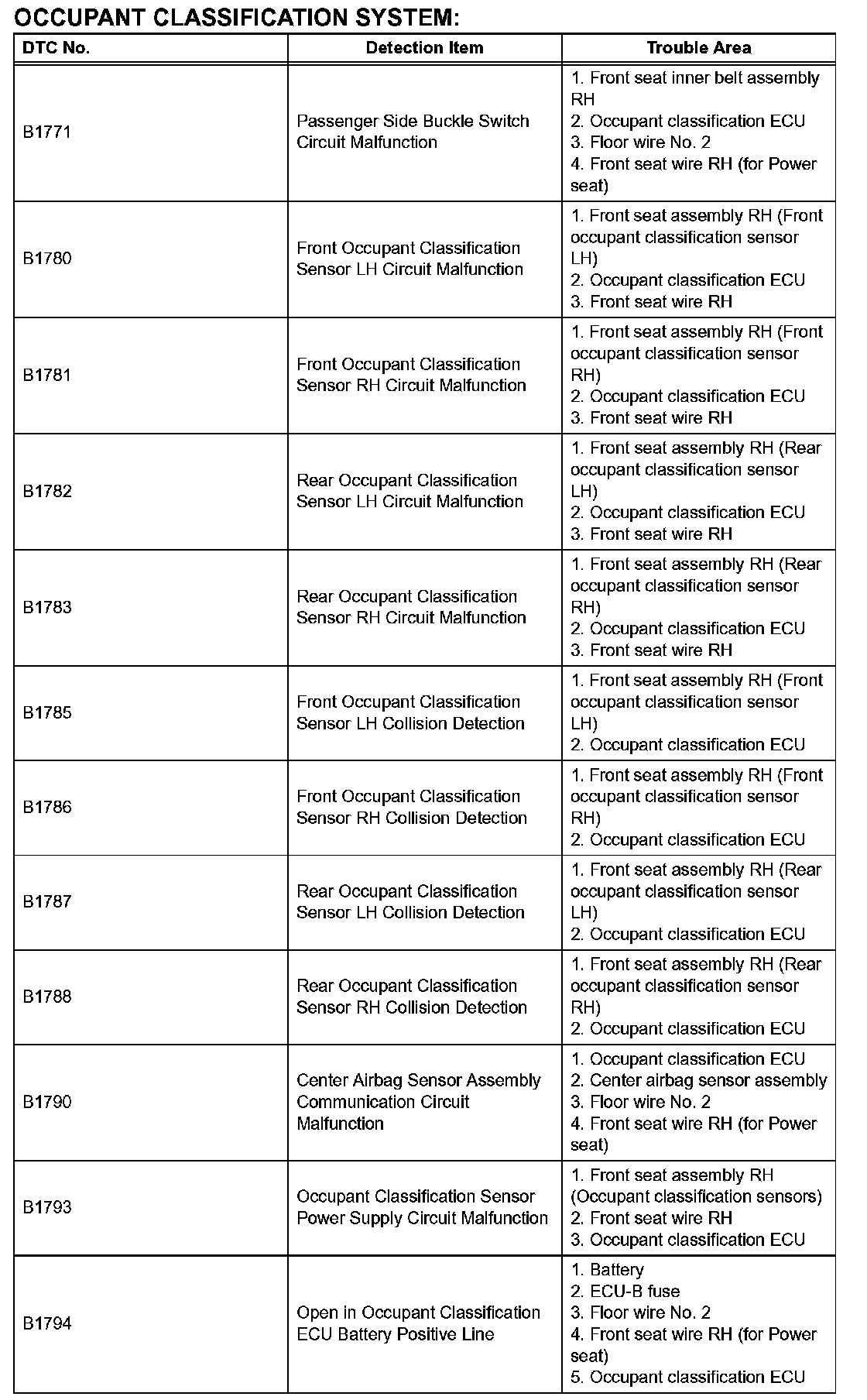

B1771-B1794:

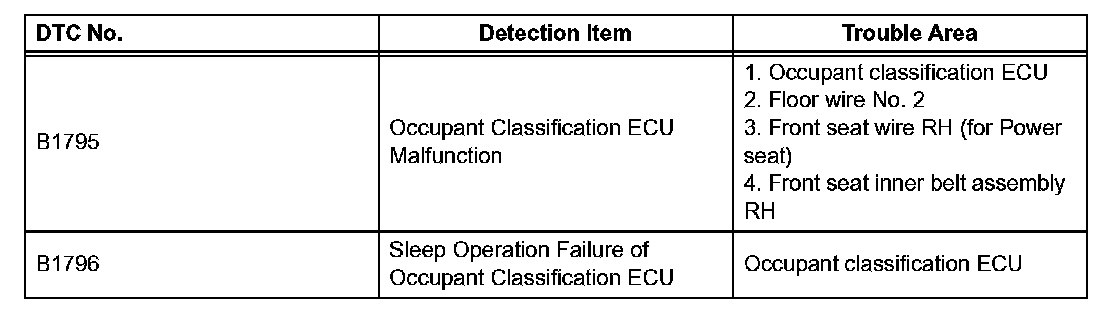

B1795-B1796:

If a trouble code is displayed during the DTC check, check the circuit listed for the code in the table given.
