Radio/Stereo: Service and Repair

REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
5. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle)
6. REMOVE UPPER CONSOLE PANEL (for Manual Transaxle)
7. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle)
8. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle)
9. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
10. REMOVE INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY

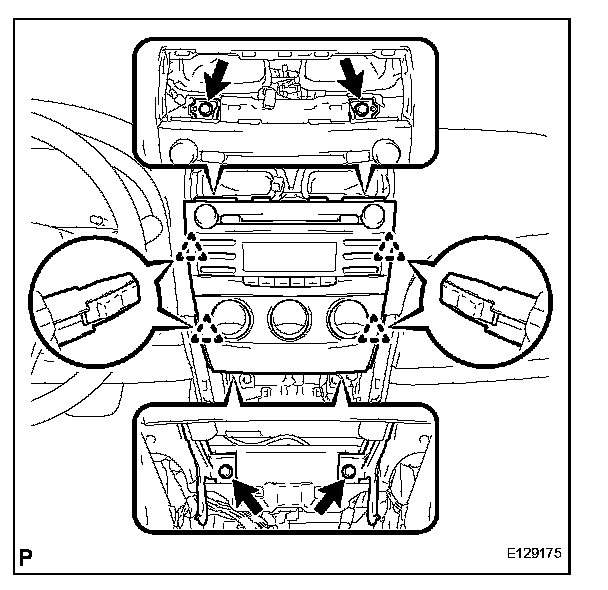

11. REMOVE RADIO RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY
a. Remove the 4 bolts.
b. Pull the radio receiver with heater control panel assembly toward the rear of the vehicle and disengage the 4 clips.
c. Disconnect each connector and remove the radio receiver with heater control panel assembly.

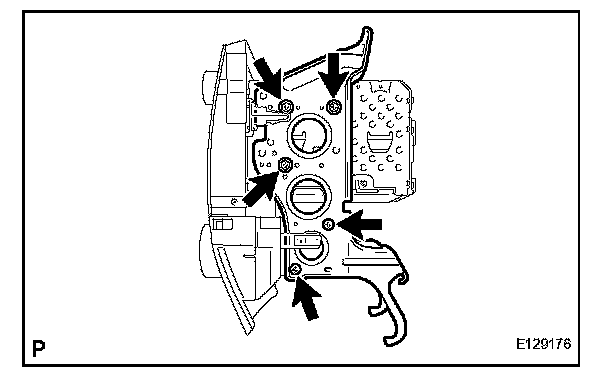

12. REMOVE RADIO NO. 1 BRACKET
a. Remove the 5 bolts and radio No. 1 bracket.

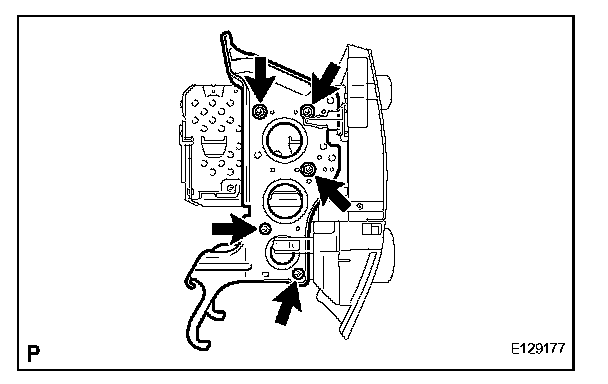

13. REMOVE RADIO NO. 2 BRACKET
a. Remove the 5 bolts and radio No. 2 bracket.

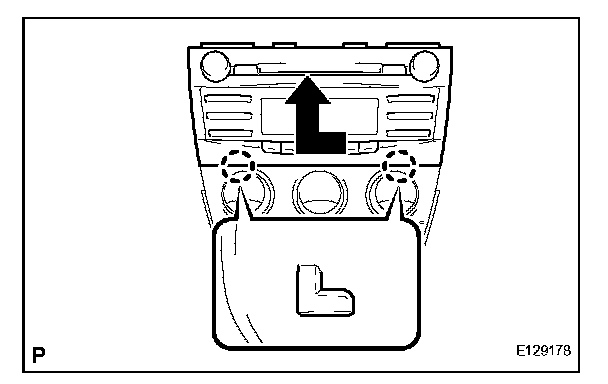

14. REMOVE RADIO RECEIVER ASSEMBLY
a. Remove the radio receiver assembly as shown in the illustration.

INSTALLATION

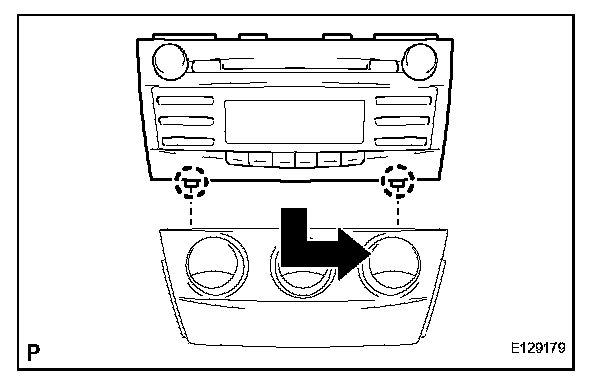

1. INSTALL RADIO RECEIVER ASSEMBLY
a. Install the radio receiver assembly as shown in the illustration.

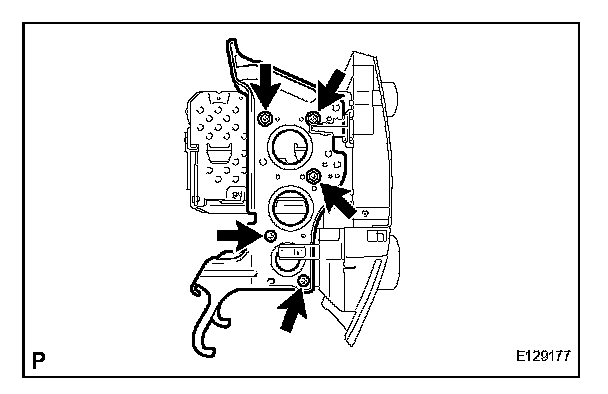

2. INSTALL RADIO NO. 2 BRACKET
a. Install the radio No. 2 bracket with the 5 bolts.

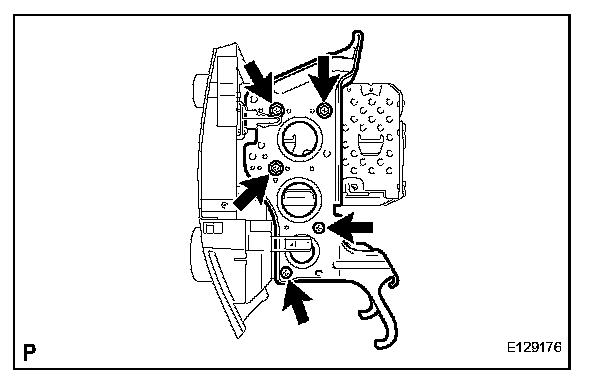

3. INSTALL RADIO NO. 1 BRACKET
a. Install the radio No. 1 bracket with the 5 bolts.




4. INSTALL RADIO RECEIVER WITH HEATER CONTROL PANEL ASSEMBLY
a. Connect each connector.
b. Engage the 4 clips.
c. Install the radio receiver with heater control panel assembly with the 4 bolts.

5. INSTALL INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY
6. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
7. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle)
8. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle)
9. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle)
10. INSTALL UPPER CONSOLE PANEL (for Manual Transaxle)
11. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH
12. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH
13. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)
14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
