Pinout Values and Diagnostic Parameters

Terminals Of Control Module/Pinouts - Radio Receiver (Premium Model) (Part 1):

Terminals Of Control Module/Pinouts - Radio Receiver (Premium Model) (Part 2):

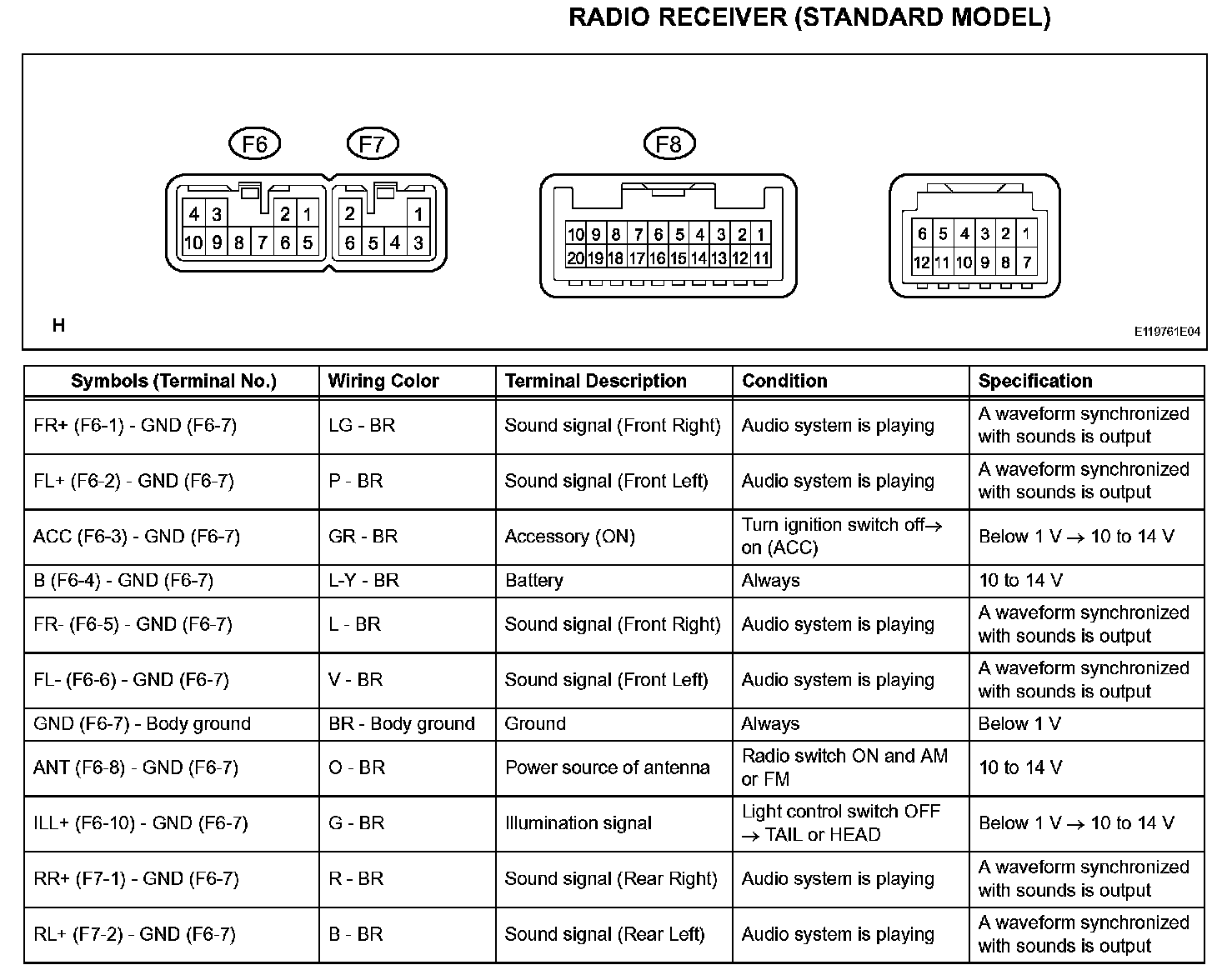

Terminals Of Control Module/Pinouts - Radio Receiver (Standard Model) (Part 1):

Terminals Of Control Module/Pinouts - Radio Receiver (Standard Model) (Part 2):

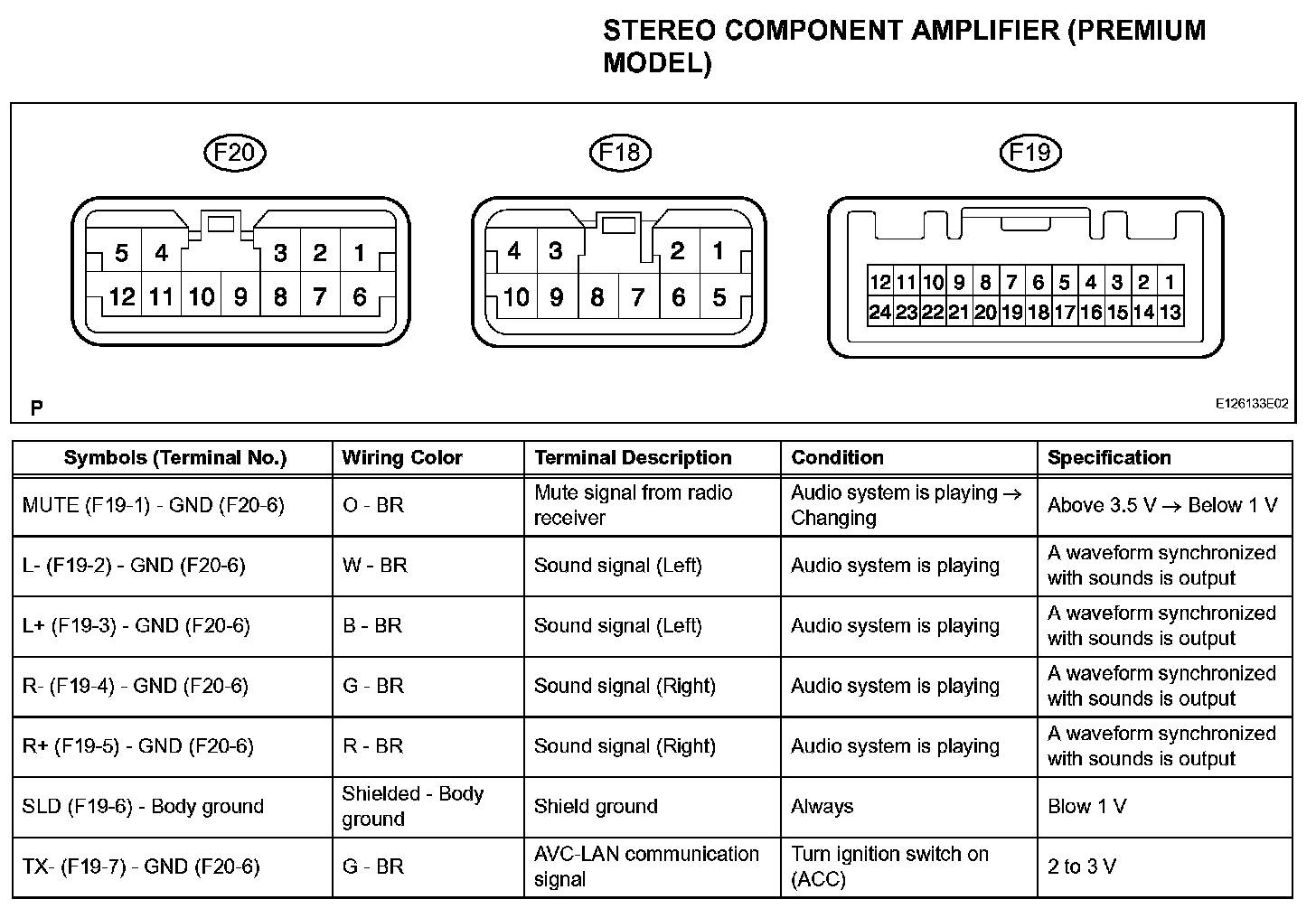

Terminals Of Control Module/Pinouts - Stereo Component (Premium Model) (Part 1):

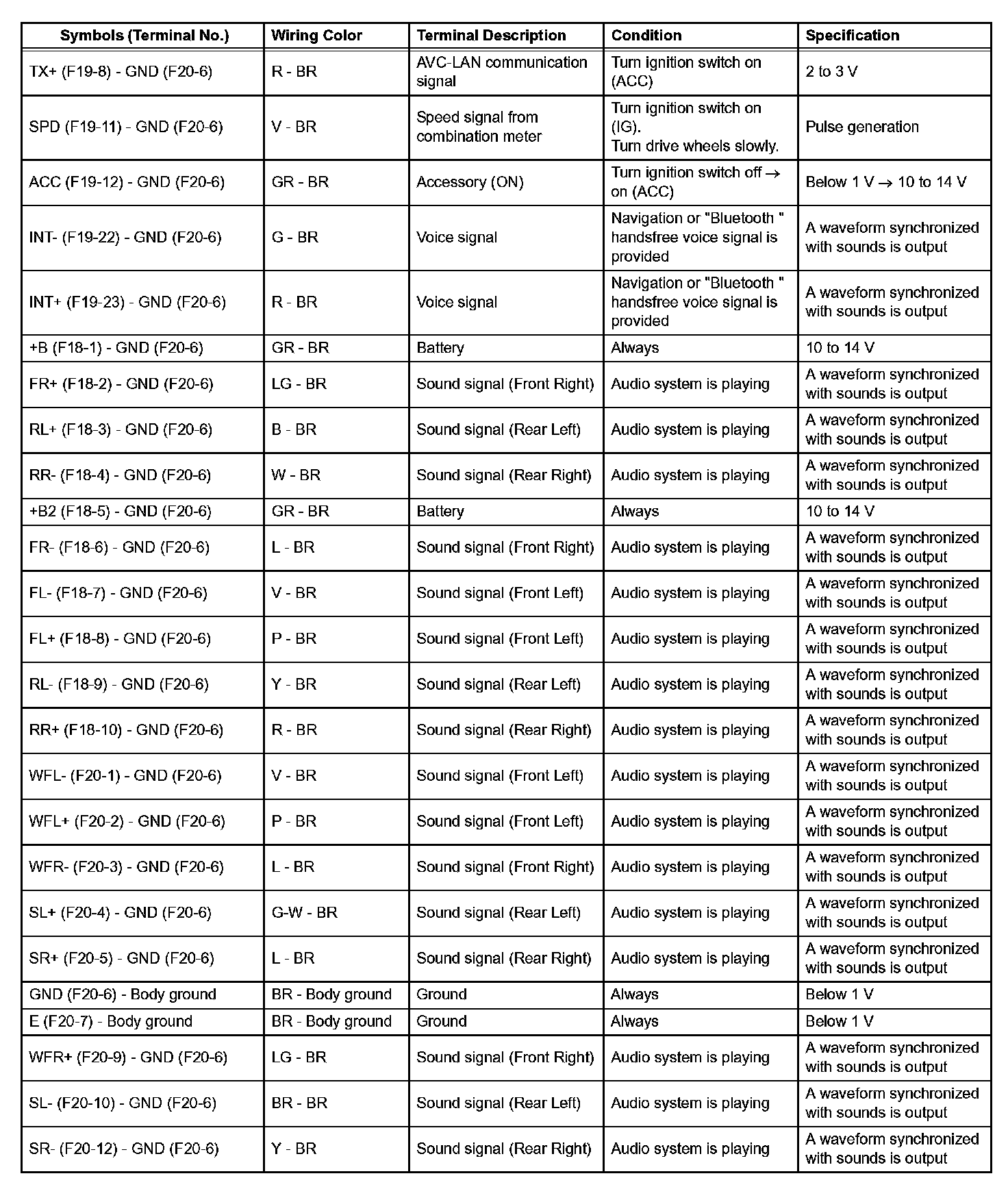

Terminals Of Control Module/Pinouts - Stereo Component (Premium Model) (Part 2):
