Hood: Testing and Inspection
HOODON-VEHICLE INSPECTION

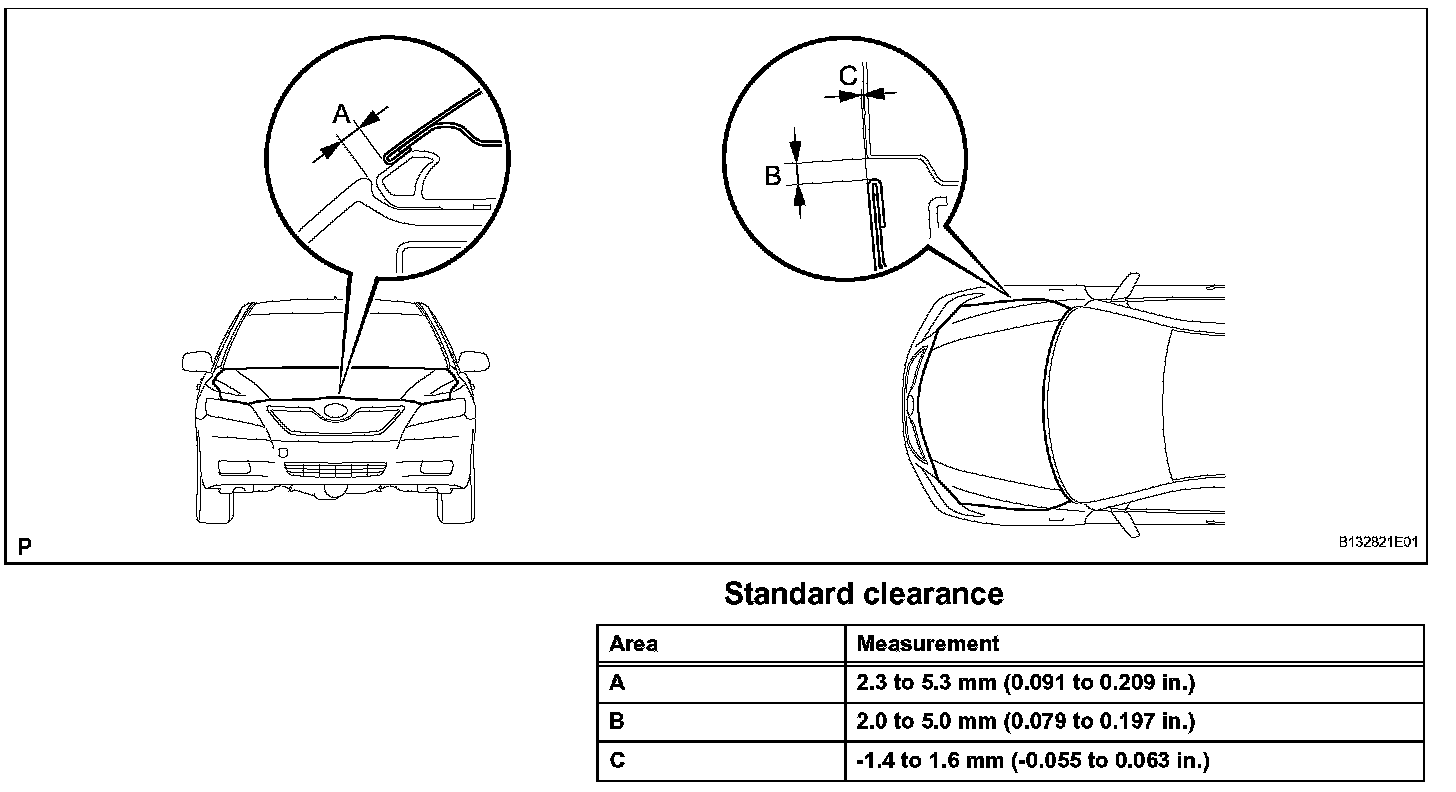

1. INSPECT HOOD SUB-ASSEMBLY
a. Check that the clearance measurements of areas A through C are within each standard range.
ON-VEHICLE INSPECTION
1. INSPECT HOOD SUB-ASSEMBLY
a. Check that the clearance measurements of areas A through C are within each standard range.
