Outer Rear View Mirror

OUTER REAR VIEW MIRROR

Outer Rear View Mirror:

REMOVAL

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

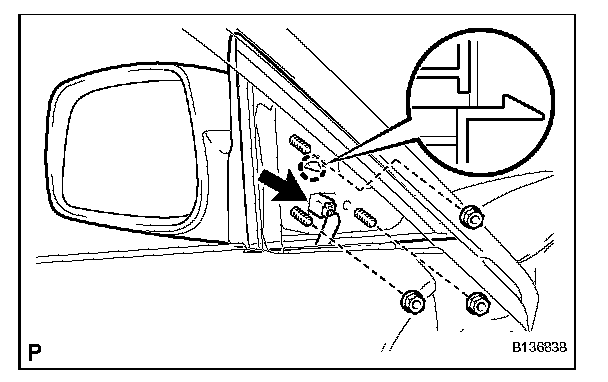

2. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY






a. Disconnect the connector.
b. Remove the 3 nuts.
c. Disengage the claw and remove the outer rear view mirror assembly.

INSTALLATION

1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY






a. Engage the claw to install the outer rear view mirror assembly.
b. Install the outer rear view mirror assembly with the 3 nuts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

c. Connect the connector.

2. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
